Sideloader
ILSL
Sideloader
Liftgates
Imperial
Metric
Weight Capacity
Weight Capacity
Up to 1996 kg
Up to 4400 lbs.
Platform Size
Platform Size
Up to 1778 mm x 1828.8 mm
Up to 70"x72"
Bed Height
Bed Height
Up to 1397 mm
Up to 55"

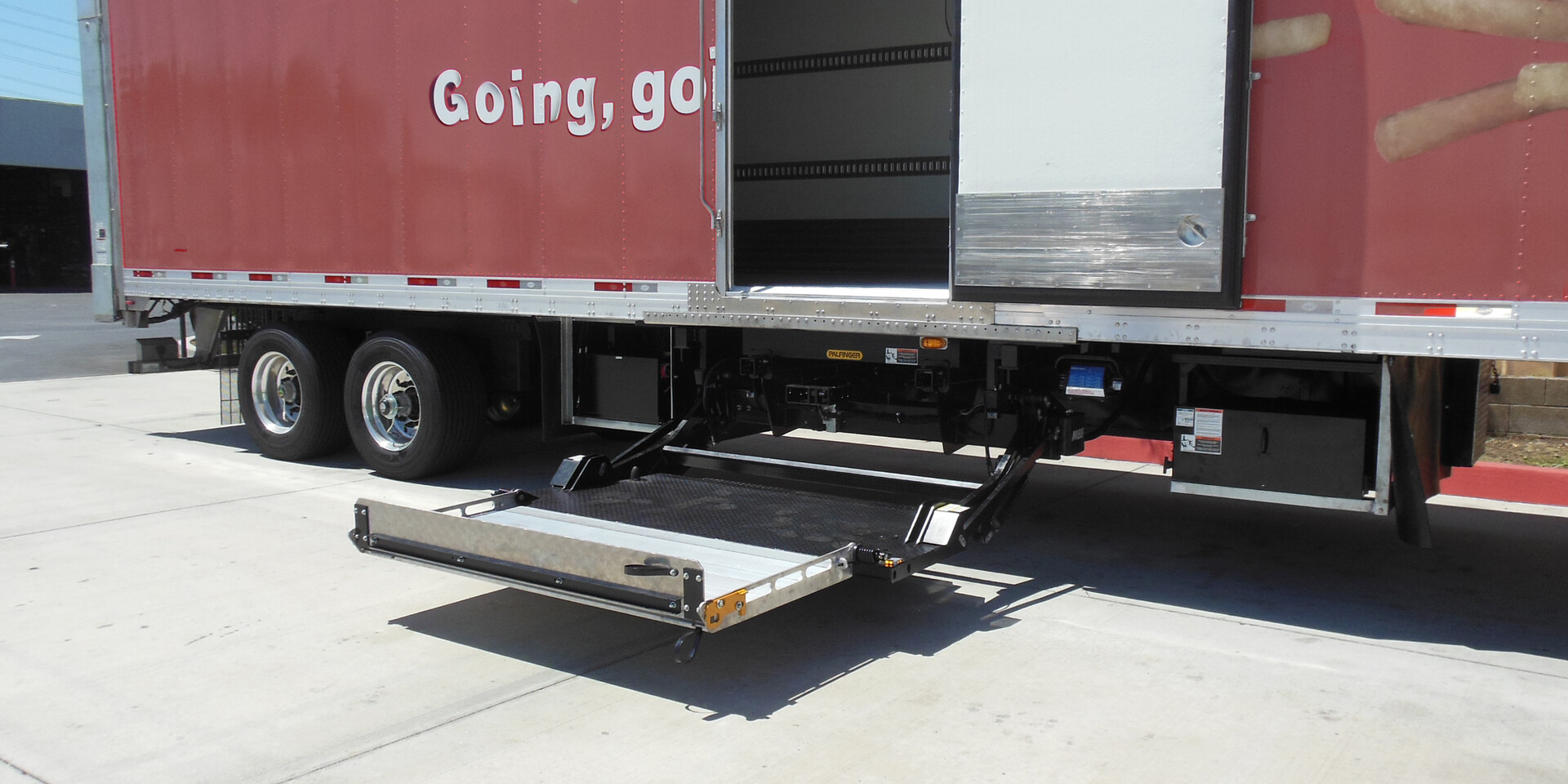

Side mounted on trailers with flat platform level ride slide lift with smart touch.
The ILSL is a flat platform sliding unit optimized for trailer side loading.
| Lifting capacity (lbs) | Platform size length (inch) | Platform size width (inch) | Bed height range (inch) | Approx. weight (lbs) | |
|---|---|---|---|---|---|
| ILSL 30 | 3000 | Available in 36" | 70" lengths | 72" | 40-55" | 1250-1450 lbs. |
| ILSL 44 | 4000 | Available in 36" | 70" lengths | 72" | 40-55" | 1280-1480 lbs. |
| Lifting capacity | Platform size length | Platform size width | Bed height range | Approx. weight | |
|---|---|---|---|---|---|
| ILSL 30 | 1360 | Available in 914 mm | 1778 mm lengths | 1828 mm | 1016-1397 mm | 567-658 kgs. |
| ILSL 44 | 1814 | Available in 914 mm | 1778 mm lengths | 1828 mm | 1016-1397 mm | 581 - 671 kgs. |
- Large platforms
- Bushings and zerks at all pivot points
- 150 AMP circuit breaker
- Thermo protected power pack
- Level ride
- E-coat paint process
- Foot controls in platform
- Cart stops
- Warning lights on platform
- Hand held remote
- Auxiliary trailer charge kit
- Wireless remote
