PK 14.501 SLD 5 BM26

Loader Crane

BRILLIANTLY SIMPLE: CRANES TO GET THE JOB DONE

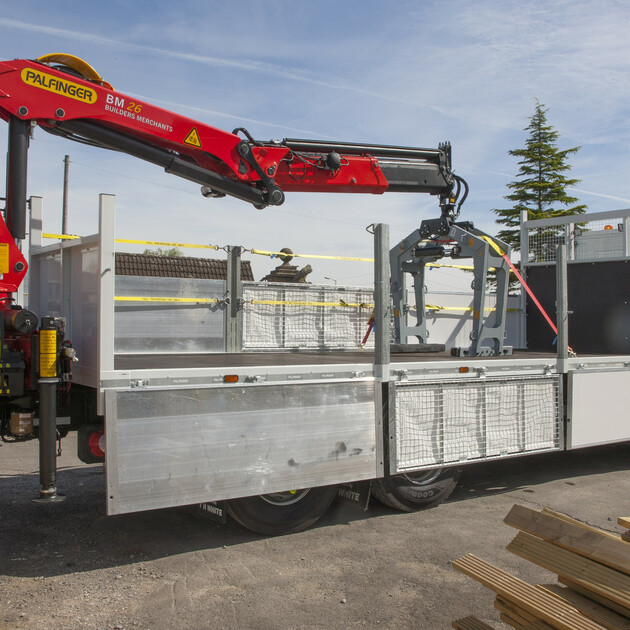

The new PALFINGER BM 26 Crane - designed for builders merchants

  • Fast job completion duet to high speed extension system
  • High operator friendliness thanks to radio remote control
  • Perfect appearance and the highest value retention thanks to KTL
  • Maximum utilisation of the working range due to HPSC



Technical Data

High Power Lifting System

The PALFINGER High Power Lifting System (E-HPLS, A-HPLS or S-HPLS) increases the capacity of the crane by up to 15% while reducing working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. A-HPLS as well as S-HPLS are activated fully automatically. There is continuous activation depending on the power required.

Details

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.

Single Link Plus

The knuckle joint on the crane's knuckle boom improves the crane's lifting power significantly in typical working positions. This knuckle boom, which has been specially developed by PALFINGER and can be angled upwards, also stands out by virtue of excellent movement geometry. Difficult crane jobs can be performed with precision even in the tightest spaces.

Max. lifting moment 14.5 mt
Max. lifting capacity 6100 kg
Max. hydraulic outreach 8.2 m
Max. manual outreach 19.1 m
Slewing angle 420°
Slewing torque with 1 gear 1.6 mt
Stabilizer spread (std) 5.0m
Fitting space required (std) 0.83 m
Width folded 2.50 m
Max. operating pressure 350 bar
Pump capacity 50 - 70 l/min
Dead weight (std) 1950 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Lifting moment
(mt) 		Outreach
(m) 		Slewing angle
(°) 		Slewing torque
(mt) 		Pressure
(MPa) 		Pump capacity
(l/min) 		Crane Weight
(kg) 		Crane Height
(mm) 		Crane Width
(mm) 		Installation Width
(mm)
A 14.5 8.2 420 1.6 36.0 50 - 70 1950 2215 2540 830

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
