P 220 AXE-E Smart Plus
P 220 AXE-E Smart Plus
Aerial Work Platform
Key Specs
- Working Height
- 21.9 m
- Basket Load
- 250 kg
- Side Reach
- 13,0 m
Articulated platform with unbeatable outreach. Ideal for working beyond overhead obstacles.
- High-performance articulated aerial platform installed on 3.5 t truck.
- The most compact design in is class.
- Multifunction electric controls ( E ) for more precise, faster, more convenient manoeuvring.
- Vertical stabilisation with front-end extending outriggers for better compensation of uneven or sloping ground
- Single articulated boom system with high lateral outreach
- Platform with three stabilisation options (PLUS) to cover all working conditions:
- Within the outer vehicle limits: for maximum compactness overall within small spaces
- With front crossmembers extended: for maximum performance when working in elevated positions
- Partial stabilisation: for maximum performance with minimum overall dimensions.
Technical Specifications
Technical data
- Max. height of work
- 21.9 m
- Max. basket floor height
- 19.9 m
- Max. horizontal outreach /with basket load
- 13,0 m
- Slewing range of basket
- 2x 90°
- Max. basket load
- 250 kg
- Workman basket - breadth / length / height
- 1.4 x 0.85 x 1.1
- Angle of main boom
- 20°+70°
- Rotation angle of turntable
- 370°

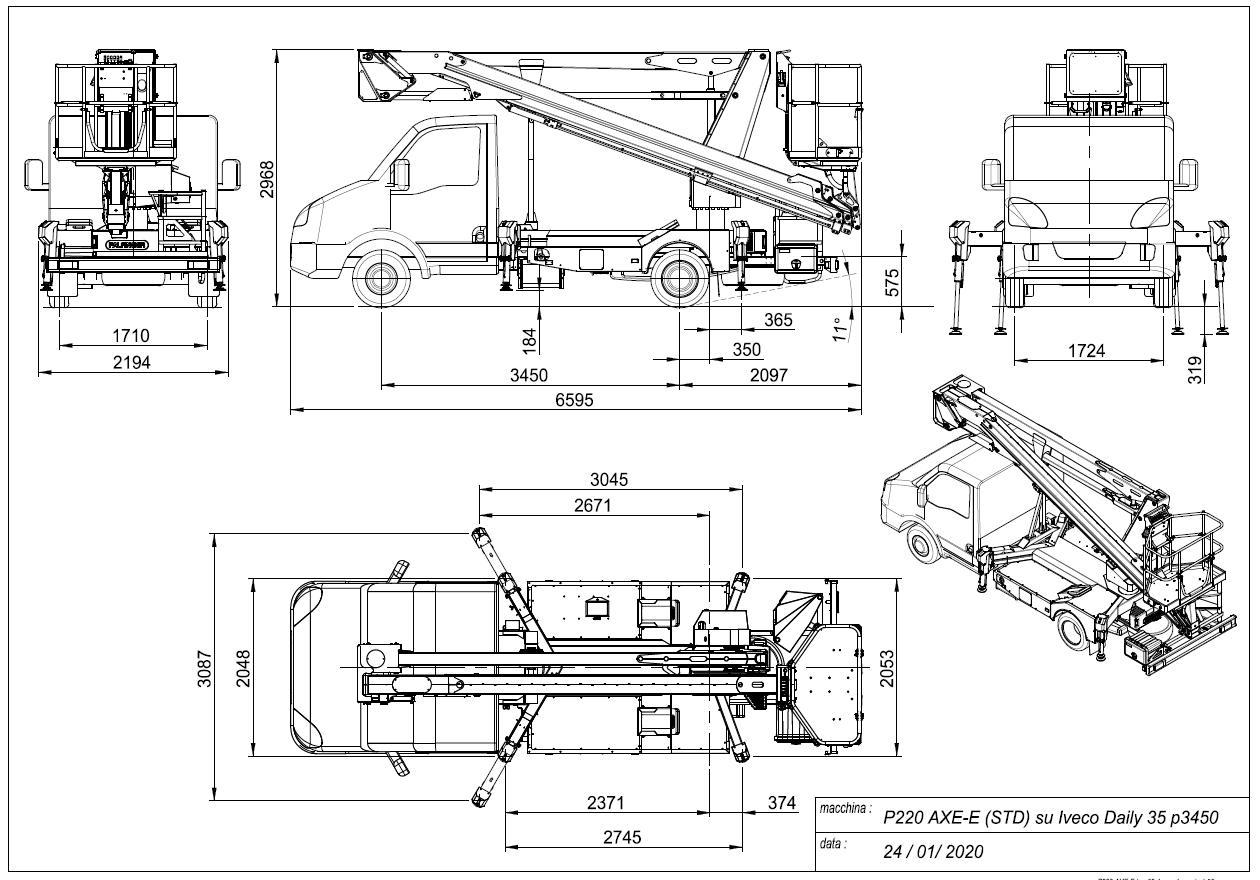

- Height in transport position
- 2.96 m
- Width in transport position
- 2.19 m
- Overall length
- 0 m
*above mentioned values are standard values and vary depending on options and chassis
Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
