Multi

HT 400

Tandem Axle

alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
Hooklifts
Key Specs
Imperial
Metric
Hook Height
1370 mm | 1570 mm 54" | 61 ¾"
Container Length
4,268-6,706 mm 14' – 22'
Min GVWR
25,000 kg 54,000 lbs.

Discover the HT 400—North America's next-gen heavy-duty hookloader. Built for safety, comfort, and durability, it boasts a telescoping jib (54" or 61¾") with dual main cylinders and a massive 40,000 lb. capacity. Power, precision, and reliability for your toughest hauls.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Solve Height Issues with Low-Profile Design

Our low-profile hooklift bogie system reduces transport height for better load stability and operator safety. Its compact design enhances comfort and control, making heavy-duty hooklift operations more efficient, secure, and reliable.

alt text

Add 2’ More Space: Smarter Bumper Innovation

Our hydraulic adjustable bumper lets your hooklift legally haul 24’ containers, adding 2’ of extra cargo space for greater capacity and efficiency. Designed for flexibility and compliance, this solution maximizes payload while meeting transport regulations, making heavy-duty hauling safer and more productive.

alt text

Prevent Disengagement with Secure Safety Latch

Upgrade your hooklift with an enhanced hook arm for superior strength, smooth container engagement, and easy height adjustment. A secure safety latch prevents accidental release, while a casted corner with rubber buffer reduces wear. With a 54”–61¾” adjustment range, achieve precise hook height for safer, more efficient operations.

alt text

Secure Any Bin with Adjustable Lock System

Our adjustable lock system with ANSI hold-down brackets adapts to a 30-inch range, ensuring a secure fit for both ANSI and non-ANSI bins. This flexibility improves safety, compatibility, and reliability, giving operators confidence in every hooklift operation while reducing downtime and enhancing efficiency.

alt text

Highlights

New Subframe Design

Experience superior stability with our advanced hooklift subframe design. The X-Beam resists chassis torsion for longer vehicle life, while the front cross beam prevents interference with engine and gearbox components. Enhanced mid-cross and reinforced rear beams deliver unmatched strength and durability for heavy-duty tipping operations.
alt text

Pro Active Drive (PAD) Remote Control

The Pro Active Drive (PAD) remote control provides full cab comfort, enabling operators to load and unload containers without leaving the cab. Customizable for add-ons like tarpers, salt spreaders, and snow plows, it streamlines workflow. Optional features include Automatic Cycle for one-touch loading and Rapid Motion for 30% faster empty container extension.
alt text

Removable & Adjustable Container Slides

Easily adjust container slides to fit multiple lengths for maximum hauling flexibility. Standard rests are built from full-cast steel for lasting strength, while soft-sliding rests use abrasion-resistant plastic pads for smoother movement, reduced noise, and less wear on container rails—delivering durability and convenience in every operation.
alt text

Reduce Risk with Limited Warranty

Enjoy peace of mind with our industry-leading warranty: three years on all structural components and one year on hydraulic parts. Built for durability and backed by strong support, our hooklift systems deliver long-term reliability and reduced maintenance costs for heavy-duty operations.
alt text

State-of-the-Art Engineering

Achieve the highest weight-to-lift ratio in the industry with our hooklift design. Built with high-tensile steel, it reduces overall weight for more payload capacity, improved truck longevity, and lower fuel costs—delivering maximum efficiency and performance for heavy-duty hauling.
alt text

Equipment & Accessories

Fender Options

Choose fender options that fit your needs: durable steel for maximum strength or lightweight plastic for flexibility. Both designs offer easy installation and reliable protection for your hooklift.

Bumper Options

Choose bumper options that fit your needs: full-width for maximum coverage or split design for flexibility. Both solutions offer durability and easy installation for optimized hooklift performance.

Lighting Options

Lighting options include mid-body lights for visibility, spotlights for precision, and strobe lights for safety. Designed for durability and easy installation, these solutions keep your hooklift compliant and ready for any job.

Toolbox Options

Choose toolbox options that suit your needs: aluminum or steel construction, available in 36" or 48" sizes. Built for durability and easy installation, these toolboxes provide secure storage and flexibility for any hooklift setup.

Tarp System

Choose tarp system options from trusted brands: Pioneer or Roll-Rite. Both deliver durability, easy operation, and secure coverage for your hooklift, ensuring safety and compliance every time.

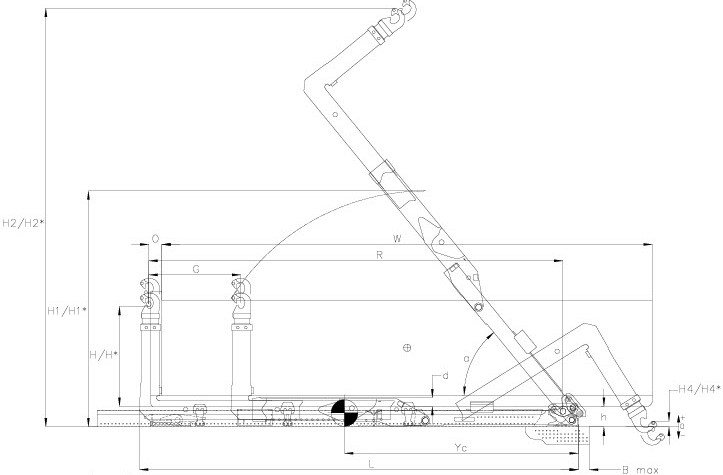

Technical Specifications

alt text
Technical data U.S. Units

Lift / DumpCapacity (lb.)

Min. GVWR (lb.)

Hooklift length

Shipping Weight (lb.)

Operating Pressure (PSI)

Optimum CA (in.)

Clear Frame Rail (in.)

Max. Dump Angle

Jib Height (in.)

Pump Type

Fitting Hoses

Paint

Construction

Pivot

# of Lift / Dump Cylinders

Body Length Range (ft.)

Optimum Body Lenghts (ft.)

Jib Action
S 40,000 lbs 54,000 lbs 200 inch_s 4,663 lbs 4,500 psi 145 inch_s 205 inch_s 50° 54" & 61¾" Piston - Direct mount JIC/SAE Finish Coat A514 (T-1) Dual 2/2 14-19' 16-19' Telescopic
L 40,000 lbs 54,000 lbs 239 inch_s 5,016 lbs 4,500 psi 190 inch_s 244 inch_s 48° 54'' & 61¾'' Piston - Direct mount JIC/SAE Finish Coat A514 (T-1) Dual 2/2 16-22' 19-22' Telescopic
Technical data metric

Lift / DumpCapacity (lb.)

Min. GVWR (lb.)

Hooklift length

Shipping Weight (lb.)

Operating Pressure (PSI)

Optimum CA (in.)

Clear Frame Rail (in.)

Max. Dump Angle

Jib Height (in.)

Pump Type

Fitting Hoses

Paint

Construction

Pivot

# of Lift / Dump Cylinders

Body Length Range (ft.)

Optimum Body Lenghts (ft.)

Jib Action
S 18,145 kg 25,000 kg 5,065 mm 2,115 kg 310 bar 3,683 5,192 50° 1,370 & 1,570 mm Piston - Direct mount JIC/SAE Finish Coat A514 (T-1) Dual 1/1 4,268-5,792 mm 4,877-5,792 mm Telescopic
L 18,145 kg 25,000 kg 6,050 mm 2,275 kg 310 bar 4,826 6,177 48° 1,370 & 1,570 mm Piston - Direct mount JIC/SAE Finish Coat A514 (T-1) Dual 2/2 4,877-6,706 mm 5,792-6,706 mm Telescopic
Standard features
  • Dual rear rollers
  • Soft stop landing and sensors
  • Telescopic jib
  • Inside controls
  • Greasable with bronze bushings at all pivot points
  • High-strength steel frame - Z rail design

Discover Standard Features

Dual Pivot Design

Maximize versatility with our dual pivot hooklift design—offering true dumping capabilities and flexible operation for any jobsite. Engineered for strength and efficiency, this innovative system delivers superior performance while simplifying container handling and boosting productivity.

High Pressure Hydraulics

Optimize payload and efficiency with high-pressure hydraulics (3,600–4,500 psi). This advanced system utilizes smaller cylinders to reduce weight, providing you with more available payload without compromising power. Perfect for heavy-duty hooklift applications where performance and productivity matter most.

Outside Container Hold Downs

Ensure maximum load security with outside container hold downs—built for strength and flexibility. These rugged brackets keep containers firmly locked during transport, reducing risk and improving efficiency. Designed for heavy-duty hooklift applications, they deliver reliability and peace of mind on every haul.

Dual Lift/Dump Cylinders

Achieve steady, secure handling with dual lift/dump cylinders—engineered for smooth loading, unloading, and dumping operations. This robust design ensures maximum stability and control, reducing risk and boosting efficiency for heavy-duty hooklift applications.

Dual Counterbalance Valves

Enhance safety and control with dual counterbalance valves—providing power up and power down for secure operation. Designed for easy access and serviceability, this feature ensures reliable performance and peace of mind in demanding hooklift applications.

Manual Adjustable Height Jib

Adapt to any job with our manual adjustable height jib—offering flexible hook positions for maximum versatility. Designed for heavy-duty performance, it ensures precise container handling and easy adjustment, making your hooklift operations more efficient and reliable.

High Strength Steel Supports

Built tough with high-strength steel supports for maximum durability and reliability. Designed without wearable or replaceable pads, this feature minimizes maintenance and ensures long-lasting performance, making it perfect for heavy-duty hooklift applications where strength is paramount.

Safety Sensors

Stay protected with advanced safety sensors—jib sensors prevent retraction in dump mode, while dump latch sensors ensure latches are fully engaged. Designed for all models, these features deliver superior safety, reliability, and peace of mind during every hooklift operation.
