4-Way
FHS 55 4WP
FHS 55 4WP—Side Seat Series
Truck Mounted Forklift

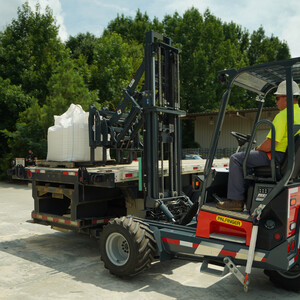

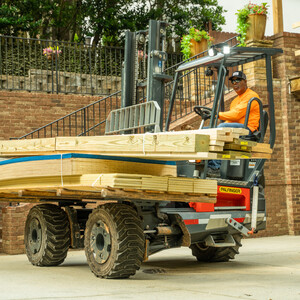

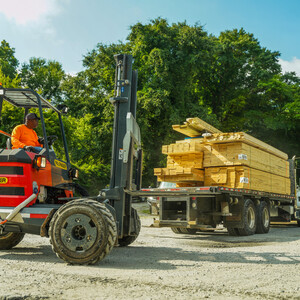

The PALFINGER FHS 55 4WP is the perfect solution for difficult, same-side loading/unloading situations. The reach of the pantograph allows you to lift full-capacity loads from across the truck bed or trailer, while the steering can be switched to the front wheels to allow effortless sideways driving with minimal space requirement.
With the unique PALFINGER Reach System, you can offload from just one side of the truck or trailer, no matter how confined the job site is.
Main Frame Channels
The sturdy main frame uses a Standard 4-in. channel section and roller bearings, which enables the use of larger diameter and wider mast carriage rollers, greatly reducing loading and wear.
Carriage Cylinders
Carriage cylinders are recessed below the mast carriage, providing a lower center of gravity for the machine and added protection from damage caused by falling debris.
Corrosion Resistance and Guarding
- Composite body panels
- KTL-treated and powder-painted chassis
- Galvanized steps, stabilizers, wheel motor guards, transport chain hanger brackets
- Dacrotized mast chains
- Zinc-coated mast and chain rollers
- Wheel rim valve stem guards
- Protruding wrap-around chassis
| Capacity @ 24'' load center | 5500 lbs |
| Horsepower | 56 hp |
| Engine | Diesel |
| Engine emission compliance EPA | TIER 4 Final |
| Maximum engine RPM | 2700 rpm |
| Electrical system | 12 Volt |
| Drive wheels (All with brakes) | 3 |
| Steering | Hydrostatic |
| Tire type: front | 31"x13"-16 1/2" 10-PLY (Skid steer) |
| Tire type: rear | 31"x15 1/2"-15" 8-PLY (Tractor grip) |
| Tire outside diameter (Front / Rear) | 31"/31" |
| Tire width (Front / Rear) | 13"/15 1/2" |
| Maximum speed | 7 mph |
| Maximum gradability | 30% (4-way 15%) |
| Turning radius | 81" |
| Unladen weight excluding forks | 7985 lbs | 8105 lbs |
| Working pressure for attachments | 3000 psi |
| Tilt of mast (Forward / Back) | 10⁰/ 8⁰ |
| Tilt of fork carriage (Forward / Back) | 0° / 6° |
| Sideshift | 5" |
| Fork section: Lumber (L x W x H) | 48" x 6" x 2" |
| Mast carriage travel | 37.4" |
| Reach across truck bed | 51" |
| Counter weights | No |
| Height to top of canopy | 101" |
| Fork carriage width | 47 1/4" (CLASS IV 25" OPENING) |
| Frame opening | 58" |
| Overall width | 101 1/2" | 101" (4-way) |
| Overhang | 66" |
| Wheel base | 71 1/2" |
| C. OF. G. from fork face | 17 3/4" |
| Lift height | 120" | 144" |
| Mast height collapsed | 88 3/4" | 100 3/4" |
| Mast height raised | 201" | 225" |
| Ground clearance | 11" |
| Face of fork to center of front tire | 15" |
| Ansi standard | B56.14 |
Weights will change depending on wheel and fork options. Weights listed do not include forks or accessories.
| Capacity @ 24'' load center | 2494.8 kg |
| Horsepower | 56 hp |
| Engine | Diesel |
| Engine emission compliance EPA | TIER 4 Final |
| Maximum engine RPM | 2700 rpm |
| Electrical system | 12 Volt |
| Drive wheels (All with brakes) | 3 |
| Steering | Hydrostatic |
| Tire type: front | 787.4 mm x 330.2 mm - 419.1 mm 10-PLY (Skid steer) |
| Tire type: rear | 787.4 mm x 393.7 mm - 381 mm 8-PLY (Tractor grip) |
| Tire outside diameter (Front / Rear) | 787.4 mm / 787.4 mm |
| Tire width (Front / Rear) | 330.2 mm / 393.7 mm |
| Maximum speed | 11.27 kph |
| Maximum gradability | 30% (4-way 15%) |
| Turning radius | 2057.4 mm |
| Unladen weight excluding forks | 3621.9 kg | 3676.4 kg |
| Working pressure for attachments | 20684.27 kPa |
| Tilt of mast (Forward / Back) | 10⁰/ 8⁰ |
| Tilt of fork carriage (Forward / Back) | 0° / 6° |
| Sideshift | 127 mm |
| Fork section: Lumber (L x W x H) | 1219.2 mm x 152.4 mm x 50.8 mm |
| Mast carriage travel | 949.96 mm |
| Reach across truck bed | 1295.4 mm |
| Counterweights | No |
| Height to top of canopy | 2565.4 mm |
| Fork carriage width | 1200.15 mm (CLASS IV 635 mm OPENING) |
| Frame opening | 1473.2 mm |
| Overall width | 2578.1 mm | 2565.4 mm (4-way) |
| Overhang | 1676.4 mm |
| Wheel base | 1816.1 mm |
| C. OF. G. from fork face | 450.85 mm |
| Lift height | 3048 mm | 3657.6 mm |
| Mast height collapsed | 2254.25 mm | 2559.05 mm |
| Mast height raised | 5105.4 mm | 5715 mm |
| Ground clearance | 279.4 mm |
| Face of fork to center of front tire | 381 mm |
| Ansi standard | B56.14 |
Weights will change depending on wheel and fork options. Weights listed do not include forks or accessories.
- Low profile reach system gives better visibility and easy access to garages and confined spaces
- Double tilt system allows for load stabilization at maximum reach when one side unloading
- Fork carriage mounted side-shift allows the load to be side-shifted without damaging the trailer or losing stability
- Tilt sequence circuit gives simple to use intuitive control
- Reduced overhang of 6” gives the ability to optimize truck/trailer body length
- Speed steer with simple-to-use intuitive control
- All-wheel braking ensures sufficient braking in 4-way mode
- Auto-reset hydraulic steering circuit allows for easier operation without the need to reset it manually
- Load supports hinge down in a simple movement and do not obstruct lights or visibility
- 4W steer cylinders are closed in STD mode, which ensures the rod is protected from corrosion
- Trailer cable storage location removes the trip hazard
- Grab handle size and location are perfectly positioned for maximum safety
- Oversize steps allow for steel-toe work boots and are perfectly positioned without obstruction
- Floor space is maximized with all trip hazards removed
- Integrated side impact guard ensures permanent protection and eliminates misuse
- Double lift cylinder maximizes visibility through the mast
- Class 4 fork carriage maximizes fork tip visibility at all critical operation heights
- Low profile engine hood maximizes visibility to the right side
- Operation grab handle at the valve bank supports the driver in rough terrain conditions
- All-wheel braking provides increased safety, especially in 4-way mode
- SMV sign positioned behind the seat, so visibility is not obstructed
- Increased wheel torque will give the superior climbing ability
- Increased function speed to ensure faster load handling
- 180° steering allows for better maneuverability
- Chamfered corners allow for a tighter turning circle
- Low profile mast gives lower C of G and lowers collapsed height
- Low fuel fill position enables safe ground-level refueling even when mounted on the truck
- Easy access to the engine area for all daily checks
- Pump-mounted diff block eliminates large hoses and provides a better layout, ensuring easy diagnostic and hose replacement
- Protruding chassis protects panels from damage
- Oversize lift chains ensure a long lifetime while increasing visibility
- Oversized mast carriage channels and bearings give trouble-free operation without problematic wear pads
- Galvanized stabilizers and motor guards remove rust problems from this area
- Galvanized transport chain hanger points ensure rust is minimized
- Load Back Rest
- Seat Cover
- Rear View Mirror
Rear Tire Options
- Skid Steer
Fork Options
- Lumber
- Pallet
