Frame Clearance

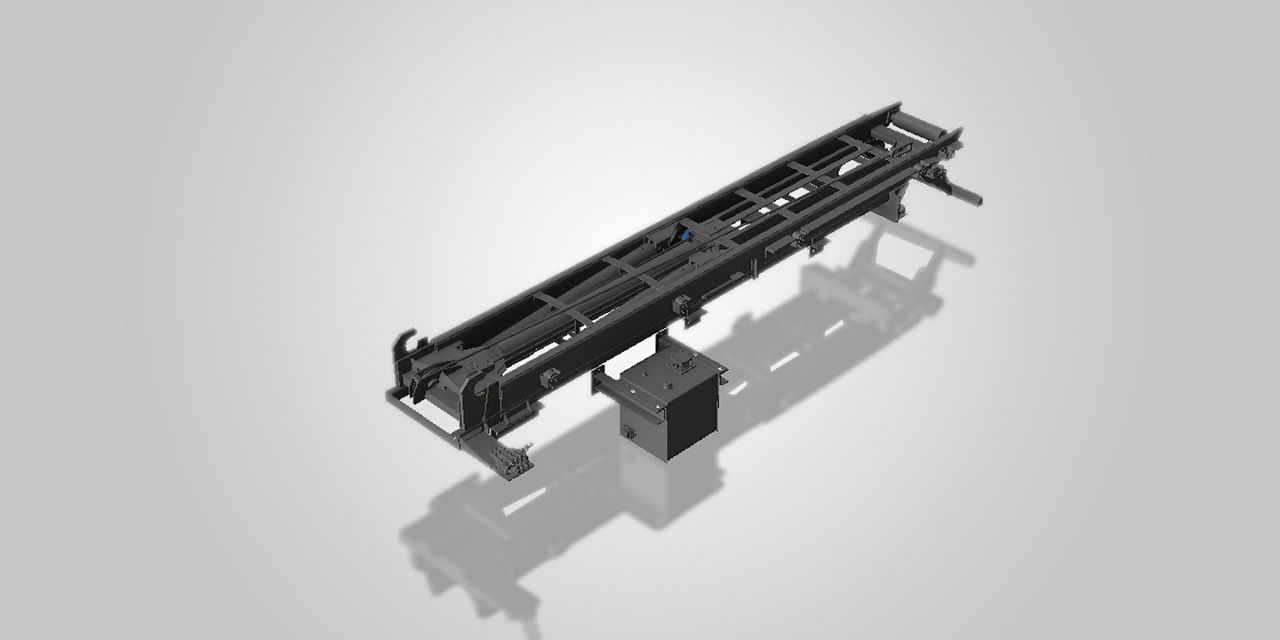

Top Mount Series

ART Models

alt text
Cable Hoist
Key Specs
Imperial
Metric
Type
ART ART
Max Length
7.32 m 24 ft
Max Capacity
34019 kg 75000 lbs

Built for durability and minimal maintenance, our patented Top Mount Cable Roll-Off Hoists deliver unmatched versatility. The innovative design fits single or multi-axle chassis—even CNG tanks—and offers the industry’s widest capacity range from 12,000 to 75,000 lbs for maximum performance.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Enhanced Safety and Locking Features

Dual safety props provide added protection when working under the hoist, while dual front container locks ensure secure load handling. Optional hydraulic automatic container locks, operated through PTO engagement, simplify operations and improve efficiency for heavy-duty applications.

alt text

Durable Design and Easy Maintenance

Integrated hydraulic return filter reduces damage risk and simplifies upkeep. Removable sheaves and large-diameter pins improve serviceability and reduce wear during heavy lifting. Frame options include inside/outside rail and extreme-duty configurations, with reinforced rails and oversized rollers for long-lasting performance.

alt text

Equipment & Accessories

Fender Options

Choose fender options that fit your needs: durable steel for maximum strength or lightweight plastic for flexibility. Both designs offer easy installation and reliable protection for your hooklift.

Bumper Options

Choose bumper options that fit your needs: full-width for maximum coverage or split design for flexibility. Both solutions offer durability and easy installation for optimized hooklift performance.

Lighting Options

Lighting options include mid-body lights for visibility, spotlights for precision, and strobe lights for safety. Designed for durability and easy installation, these solutions keep your hooklift compliant and ready for any job.

Tarp System

Choose tarp system options from trusted brands: Pioneer or Roll-Rite. Both deliver durability, easy operation, and secure coverage for your hooklift, ensuring safety and compliance every time.

Toolbox Options

Choose toolbox options that suit your needs: aluminum or steel construction, available in 36" or 48" sizes. Built for durability and easy installation, these toolboxes provide secure storage and flexibility for any hooklift setup.

Technical Specifications

Technical data U.S. units

Capacity (lb)

Dump angle

Min C/T (in.)

Hoist length (in.)

Min C/A (in.)

Container length (ft.)

GVWR F/R (lb.)
ART 12-12 12,000 lbs 53 degrees 0 inch_s 188 inch_s 84 inch_s 10-12 ft. 7,000/12,500
ART 12-14 12,000 lbs 48 degrees 0 inch_s 217 inch_s 108 inch_s 12-14 ft. 7,000/12,500
ART 20-16 20,000 lbs 56 degrees 0 inch_s 212 inch_s 120 inch_s 12-16 ft. 7,000/12,500
ART 20-18 20,000 lbs 52 degrees 0 inch_s 236 inch_s 140 inch_s 14-18 ft. 7,000/12,500

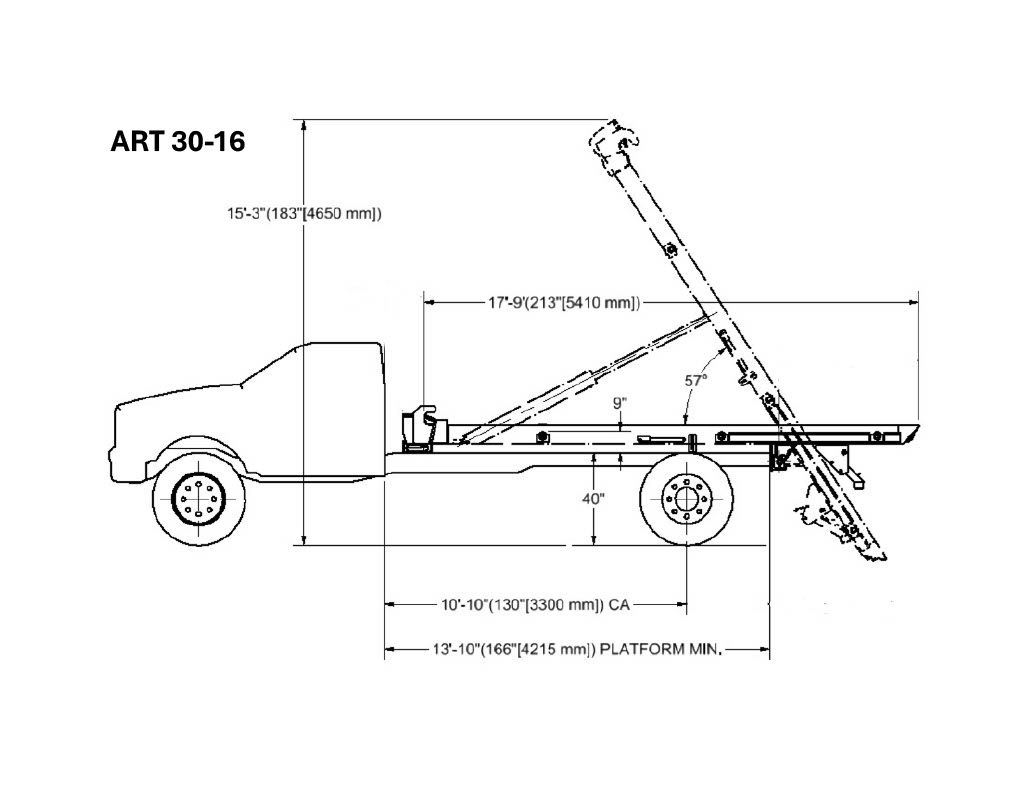

ART 30-16 30,000 lbs 56 degrees 0 inch_s 222 inch_s 125 inch_s 12-16 ft. 12,000/21,000
ART 30-16 ET 30,000 lbs 56 degrees 0 inch_s 232 inch_s 125 inch_s 12-16 ft. 12,000/21,000

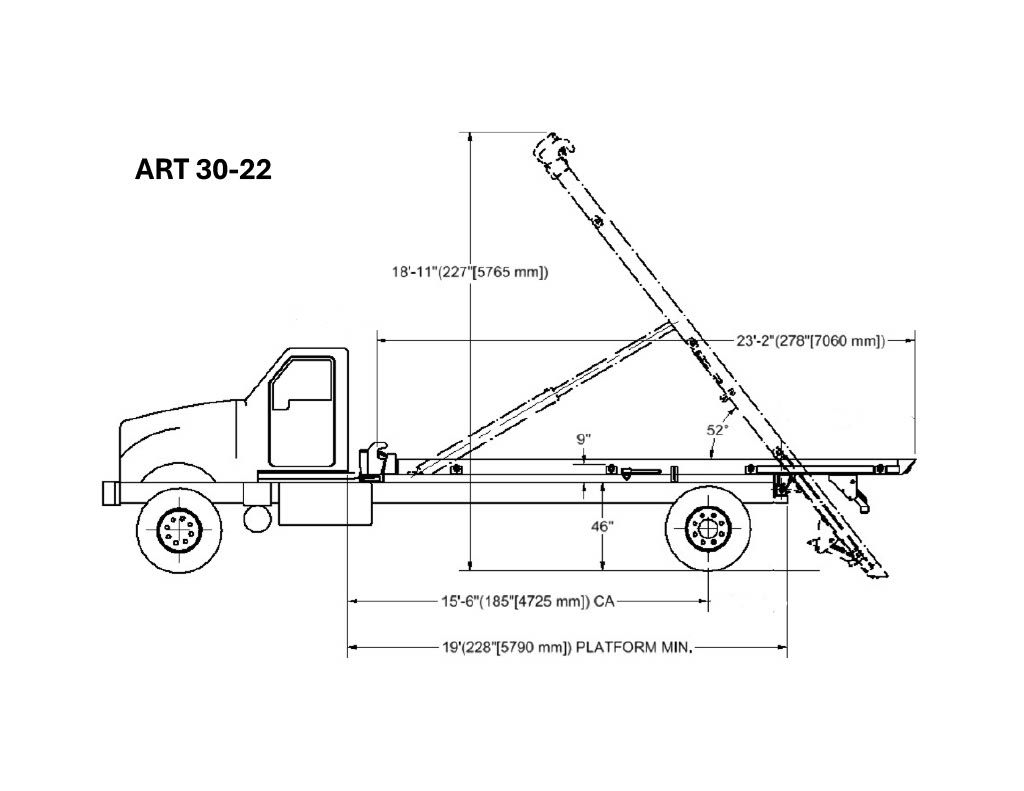

ART 30-22 30,000 lbs 48 degrees 0 inch_s 289 inch_s 186 inch_s 18-22 ft. 12,000/21,000
ART 30-22 ET 30,000 lbs 52 degrees 0 inch_s 320 inch_s 186 inch_s 18-22 ft. 12,000/21,000

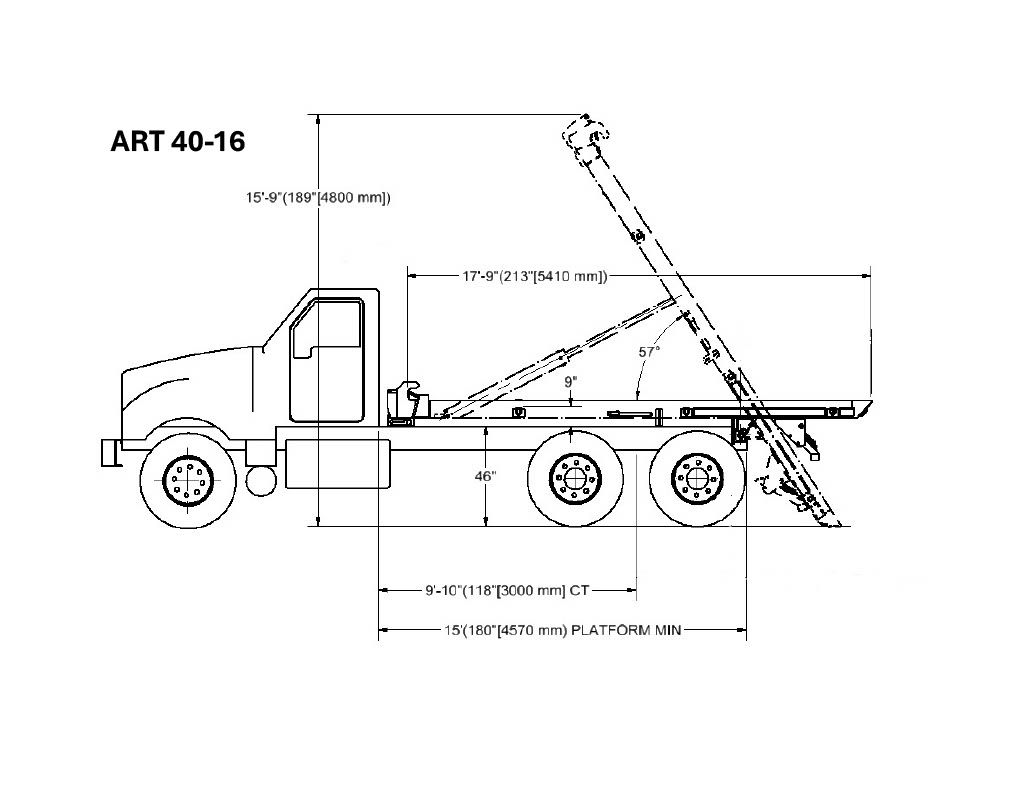

ART 40-16 40,000 lbs 56 degrees 118 inch_s 222 inch_s 164 inch_s 12-16 ft. 12,000/40,000
ART 40-16 ET 40,000 lbs 56 degrees 118 inch_s 232 inch_s 164 inch_s 12-16 ft. 12,000/40,000

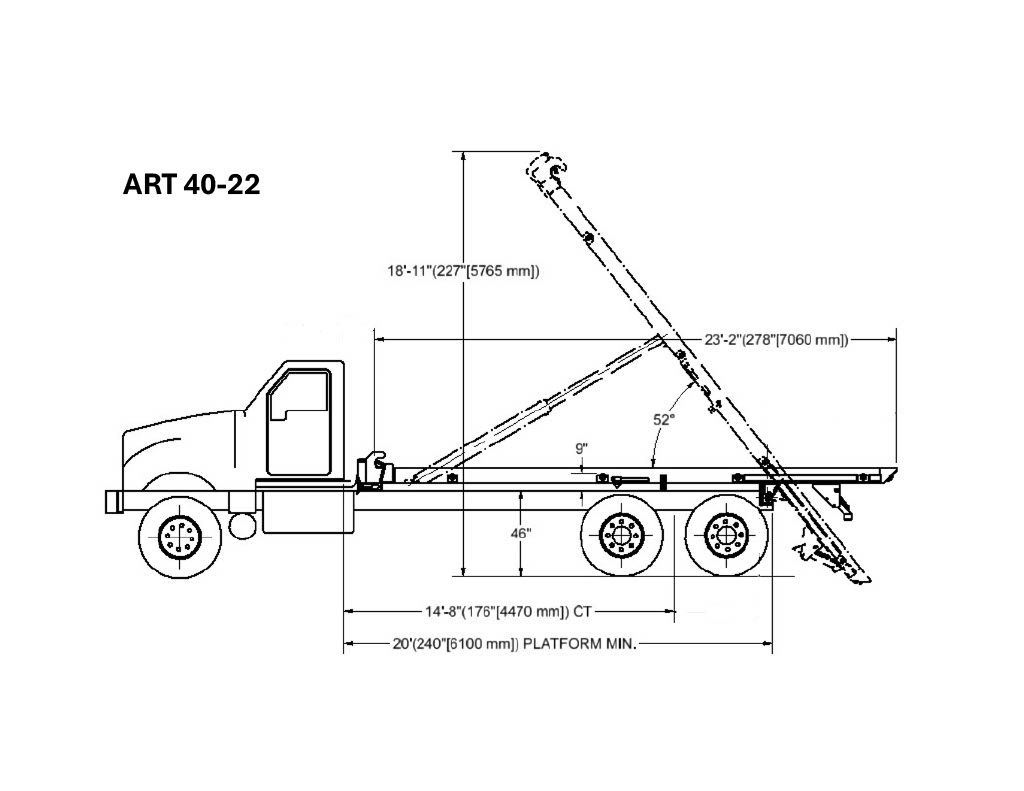

ART 40-22 40,000 lbs 48 degrees 176 289 inch_s 0 inch_s 18-22 ft. 12,000/40,000
ART 40-22 ET 40,000 lbs 52 degrees 176 320 inch_s 0 inch_s 18-22 ft. 12,000/40,000

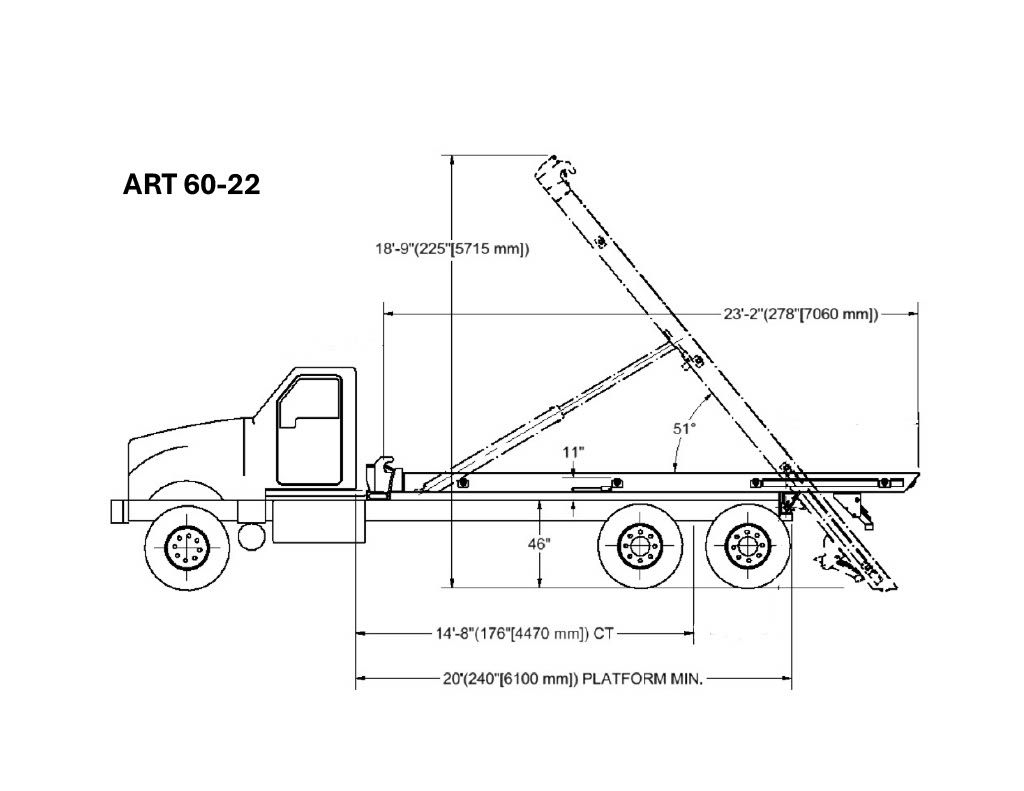

ART 60-22 60,000 lbs 49 degrees 176 289 inch_s 18-22 ft. 18,000/46,000
ART 60-22 ET 60,000 lbs 51 degrees 176 inch_s 321 inch_s 18-22 ft. 18,000/46,000
ART 60-22 IO 60,000 lbs 51 degrees 176 289 inch_s 18-22 ft. 18,000/46,000

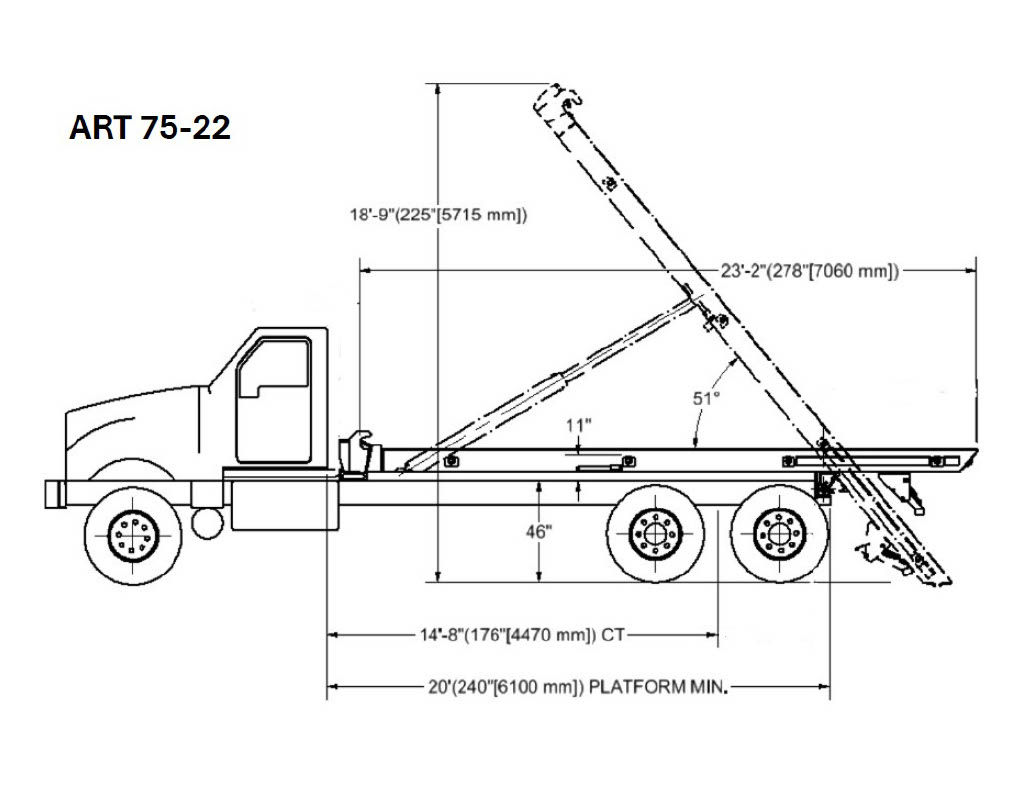

ART 75-22 75,000 lbs 48 degrees 176 inch_s 289 inch_s 18-22 ft. 18,000/46,000

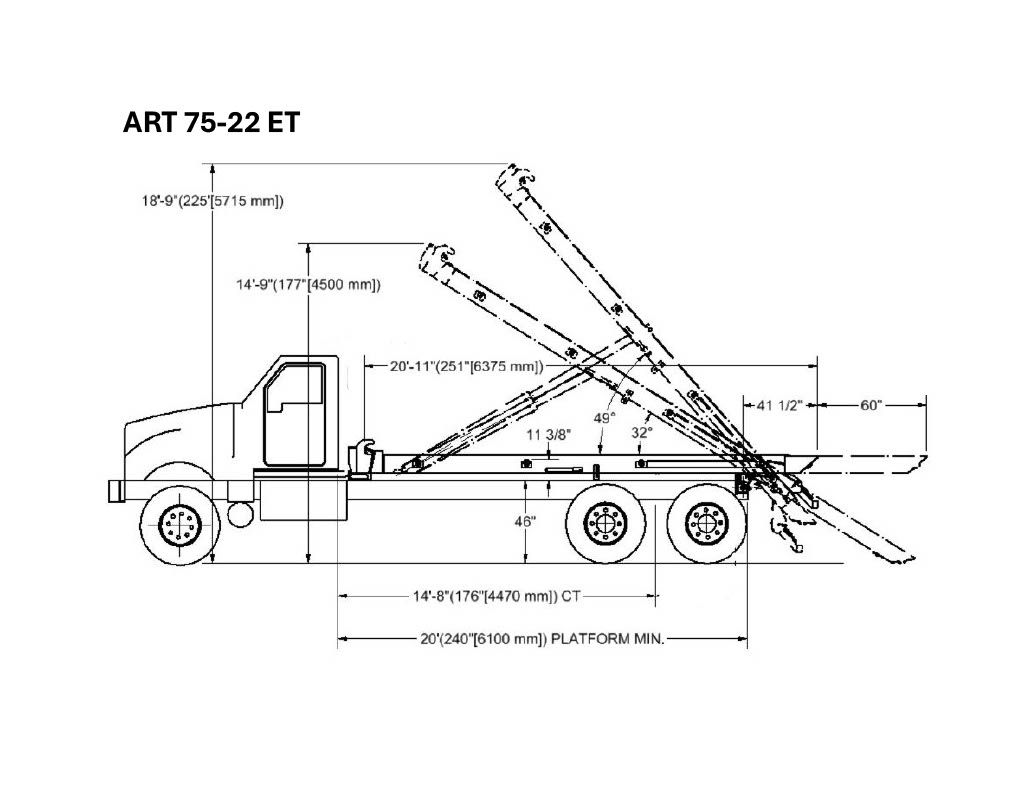

ART 75-22 ET 75,000 lbs 51 degrees 176 inch_s 321 inch_s 18-22 ft. 18,000/46,000
ART 75-22 IO 75,000 lbs 48 degrees 176 289 inch_s 18-22 ft. 18,000/46,000
ART 75-24 75,000 lbs 48 degrees 194 307 inch_s 20-24 ft. 18,000/46,000

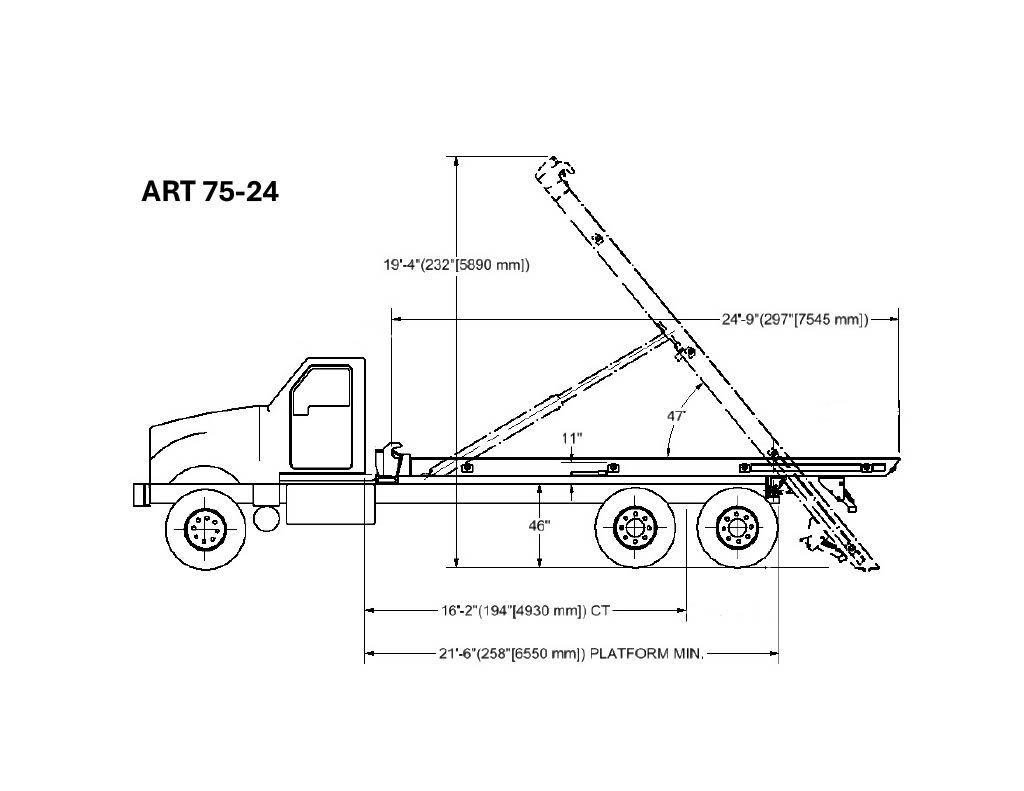

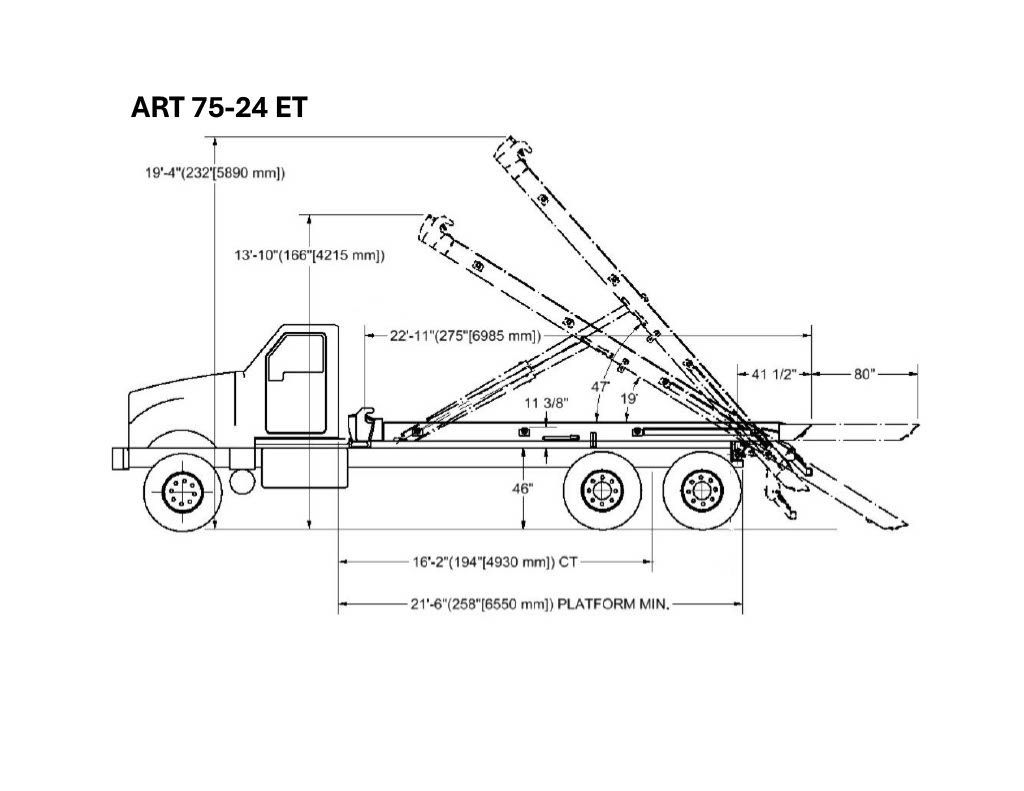

ART 75-24 ET 75,000 lbs 47 degrees 194 inch_s 367 inch_s 20-24 ft. 18,000/46,000
ART 75-24 IO 75,000 lbs 48 degrees 194 inch_s 307 inch_s 20-24 ft. 18,000/46,000
Technical data metric

Dump angle

Min C/T (in)

Hoist length (cm)

Min C/A (in)

Capacity (kg)

Container length (m)

GVWR F/R (lbs.)
ART 12-12 53 degrees 477.52 cm 84 inch_s 5,443 kg 3.05-4.27 m 7,000/12,500
ART 12-14 48 degrees 551.18 cm 108 inch_s 5,443 kg 3.66-4.27 m 7,000/12,500
ART 20-16 56 degrees 538.48 cm 120 inch_s 9,071 kg 3.66-4.88 m 7,000/12,500
ART 20-18 52 degrees 599.44 cm 140 inch_s 9,071 kg 4.27-5.49 m 7,000/12,500
ART 30-16 56 degrees 563.88 cm 125 inch_s 13,607 kg 3.66-4.88 m 12,000/21,000
ART 30-16 ET 56 degrees 589.28 cm 125 inch_s 13,607 kg 3.66-4.88 m 12,000/21,000
ART 30-22 48 degrees 734.06 cm 186 inch_s 13,607 kg 5.49-6.71 m 12,000/21,000
ART 30-22 ET 52 degrees 812.8 cm 186 inch_s 13,607 kg 5.49-6.71 m 12,000/21,000
ART 40-16 56 degrees 118 inch_s 563.88 cm 164 inch_s 18,143 kg 3.66-4.88 m 12,000/40,000
ART 40-16 ET 56 degrees 118 inch_s 589.28 cm 164 inch_s 18,143 kg 3.66-4.88 m 12,000/40,000
ART 40-22 48 degrees 176 inch_s 734.06 cm 18,143 kg 5.49-6.71 m 12,000/40,000
ART 40-22 ET 52 degrees 176 inch_s 812.8 cm 18,143 kg 5.49-6.71 m 12,000/40,000
ART 60-22 49 degrees 176 inch_s 734.06 cm 27,215 kg 5.49-6.71 m 18,000/46,000
ART 60-22 ET 49 degrees 176 inch_s 815.34 cm 27,215 kg 5.49-6.71m 18,000/46,000
ART 60-22 IO 49 degrees 176 inch_s 734.06 cm 27,215 kg 5.49-6.71 m 18,000/46,000
ART 75-22 48 degrees 176 inch_s 734.06 cm 34,019 kg 5.49-6.71 m 18,000/46,000
ART 75-22 ET 51 degrees 176 inch_s 815.34 cm 34,019 kg 5.49-6.71 m 18,000/46,000
ART 75-22 IO 48 degrees 176 inch_s 734.06 cm 34,019 kg 5.49-6.71 m 18,000/46,000
ART 75-24 48 degrees 194 inch_s 779.78 cm 34,019 kg 6.10-7.32 m 18,000/46,000
ART 75-24 ET 47 degrees 194 inch_s 932.18 cm 34,019 kg 6.10-7.32 m 18,000/46,000
ART 75-24 IO 48 degrees 194 inch_s 779.78 cm 34,019 kg 6.10-7.32 m 18,000/46,000
Standard features

Discover Standard Features

Designed for Multi-Axle and CNG Setup

Ideal for mounting on multi-axle chassis and accommodating CNG tanks, this design ensures flexibility and compatibility for diverse vehicle configurations. Built for durability and efficiency, it supports heavy-duty performance while maximizing space and functionality.

Single Reeve Cylinder

Single-reeve cylinder cable hoists are built for dependable lifting with a simple, efficient design. Using one cable line and a hydraulic cylinder, they provide smooth load handling for trucks and equipment, making them a practical choice for heavy-duty work.

Patented Folding ICC Bumper

Our patented folding ICC bumper automatically retracts when the hoist is raised, eliminating the need for extra air valves or complex mechanical pivots. This smart design simplifies operation, reduces maintenance, and ensures compliance without sacrificing efficiency.

Top Mount Design Maximizes Space

Top-mount cable hoist installation creates extra space for larger fuel tanks, battery boxes, and tool storage. This design maximizes chassis capacity while maintaining strength and reliability, making it an ideal solution for heavy-duty lifting and efficient vehicle configurations.

Optional Features

Outside Rail Only

Streamlined and strong, the outside rail-only frame delivers efficient performance for standard heavy-duty operations. Built for reliability, it ensures smooth lifting and long-lasting durability.
