Knuckle Boom
PK 7.001 SLD 3
PK 7.001 SLD 3

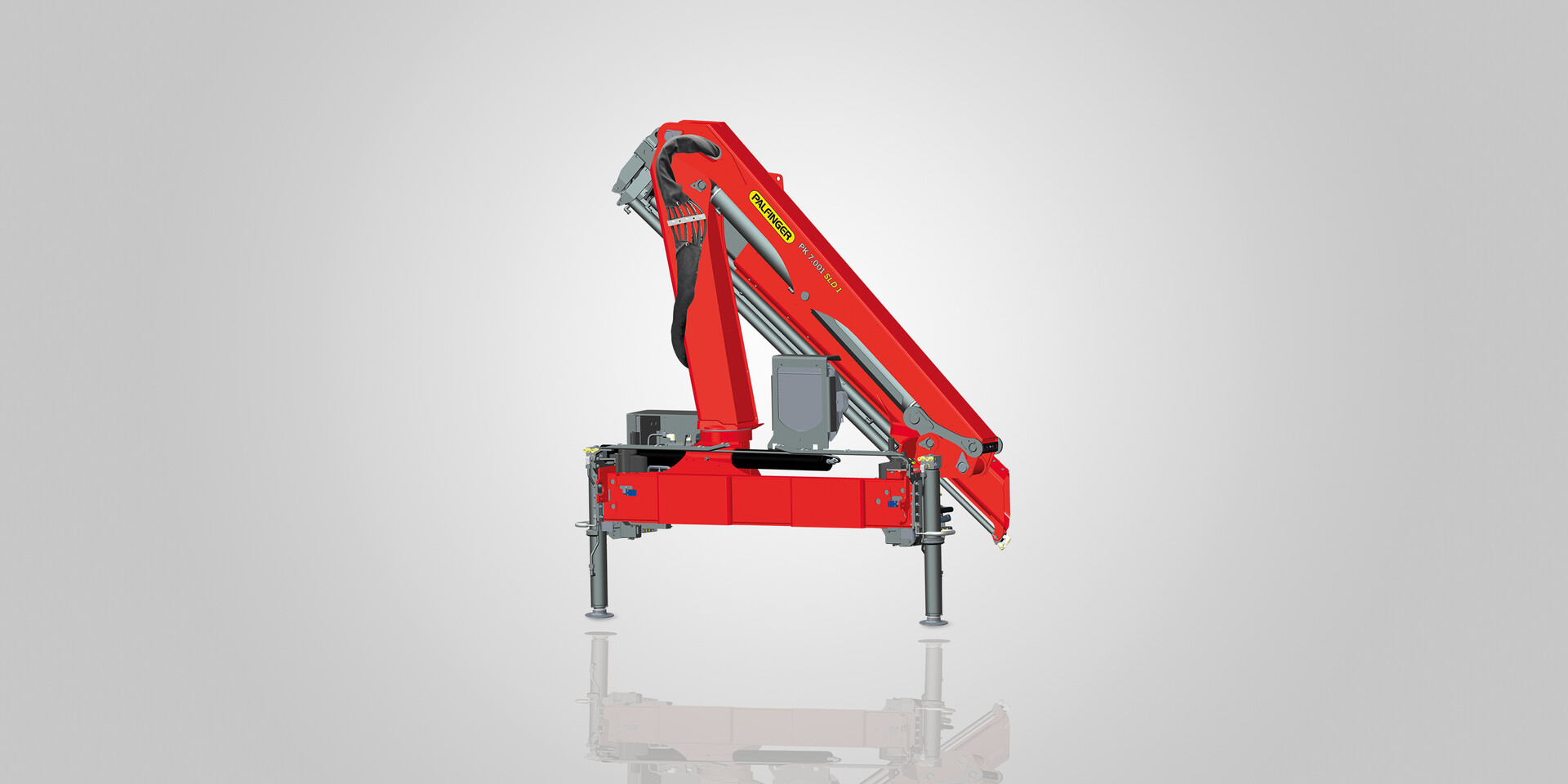

Knuckle Boom Crane
| Max. lifting moment | 44550.0 ft lbs |
| Max. lifting capacity | 7300 lb |
| Max. hydraulic outreach | 36' 9'' |
| Max. manual outreach | 42' |
| Slewing angle | 400° |
| Slewing torque | 5751.0 ft lbs |
| Stabilizer spread (std) | 14' 3" |
| Width folded | 7' 3'' |
| Max. operating pressure | 4785 psi |
| Pump capacity | 5.3 - 7.9 gpm |
| Dead weight (std) | 1650 lbs |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| Max. lifting moment | 6.2 mt |
| Max. lifting capacity | 3300 kg |
| Max. hydraulic outreach | 11.2 m |
| Max. manual outreach | 12.9 m |
| Slewing angle | 400° |
| Slewing torque | 0.8 mt |
| Stabilizer spread (std) | 3.0 m |
| Fitting space required (std) | 0.66 m |
| Width folded | 2.20 m |
| Max. operating pressure | 330 bar |
| Pump capacity | 20 - 30 l/min |
| Dead weight (std) | 750 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (ft_lbs) |
Outreach |
Slewing angle (°) |
Slewing torque (ft_lbs) |
Pressure (psi) |
Pump capacity (gpm) |
Crane Weight (lbs) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 44857.0 | 18' 1" | 400 | 5750 | 4786.0 | 5.3 - 7.9 | 1650 | 75.98 | 87.4 | 25.98 |
| A | 43410.0 | 24' 3" | 400 | 5750 | 4786.0 | 5.3 - 7.9 | 1830 | 75.98 | 87.4 | 25.98 |
| B | 41963.0 | 42' | 400 | 5750 | 4786.0 | 5.3 - 7.9 | 1985 | 75.98 | 87.4 | 25.98 |
| C | 40516.0 | 42' | 400 | 5750 | 4786.0 | 5.3 - 7.9 | 2115 | 75.98 | 87.4 | 25.98 |
|
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 6.2 | 5.5 | 400 | 0.8 | 33.0 | 20 - 30 | 750 | 1930 | 2200 | 660 |
| A | 5.9 | 7.4 | 400 | 0.8 | 33.0 | 20 -30 | 830 | 1930 | 2200 | 660 |
| B | 5.8 | 9.3 | 400 | 0.8 | 33.0 | 20-30 | 900 | 1930 | 2200 | 660 |
| C | 5.6 | 11.2 | 400 | 0.8 | 33.0 | 20 - 30 | 960 | 1930 | 2220 | 660 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
