Knuckle Boom Crane
SPK 38502
SPK 38502

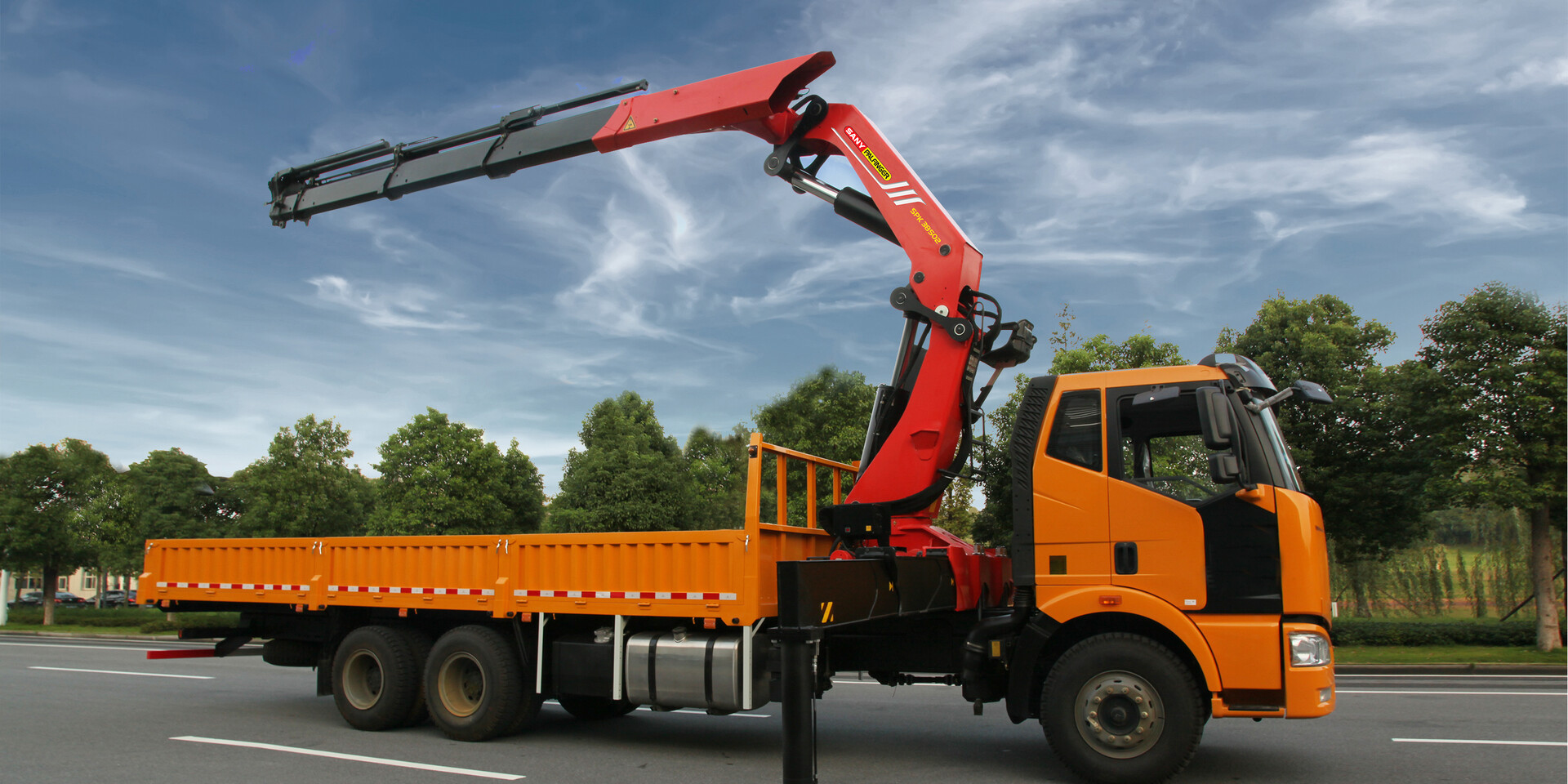

SANY PALFINGER Knuckle Boom Crane
| Max. lifting moment | 38.2 mt |
| Max. lifting capacity | 13000 kg |
| Max. hydrauic outreach | 10.0 m (B) / 12.1 m (C) / 14.5 m (D) / 16.8 m (E) |
| Slewing angle | 400° |
| Slewing torque | 5.00 mt |
| Stabilizer spread (std.) | 6600 mm (R3X) |
| Fitting space required (std.) | 1210 mm |
| Width folded | 2500 mm |
| Max. operating pressure | 300 bar |
| Pump capacity | 55 - 80 l/min |
| Dead weight (std.) | 4205 kg |
