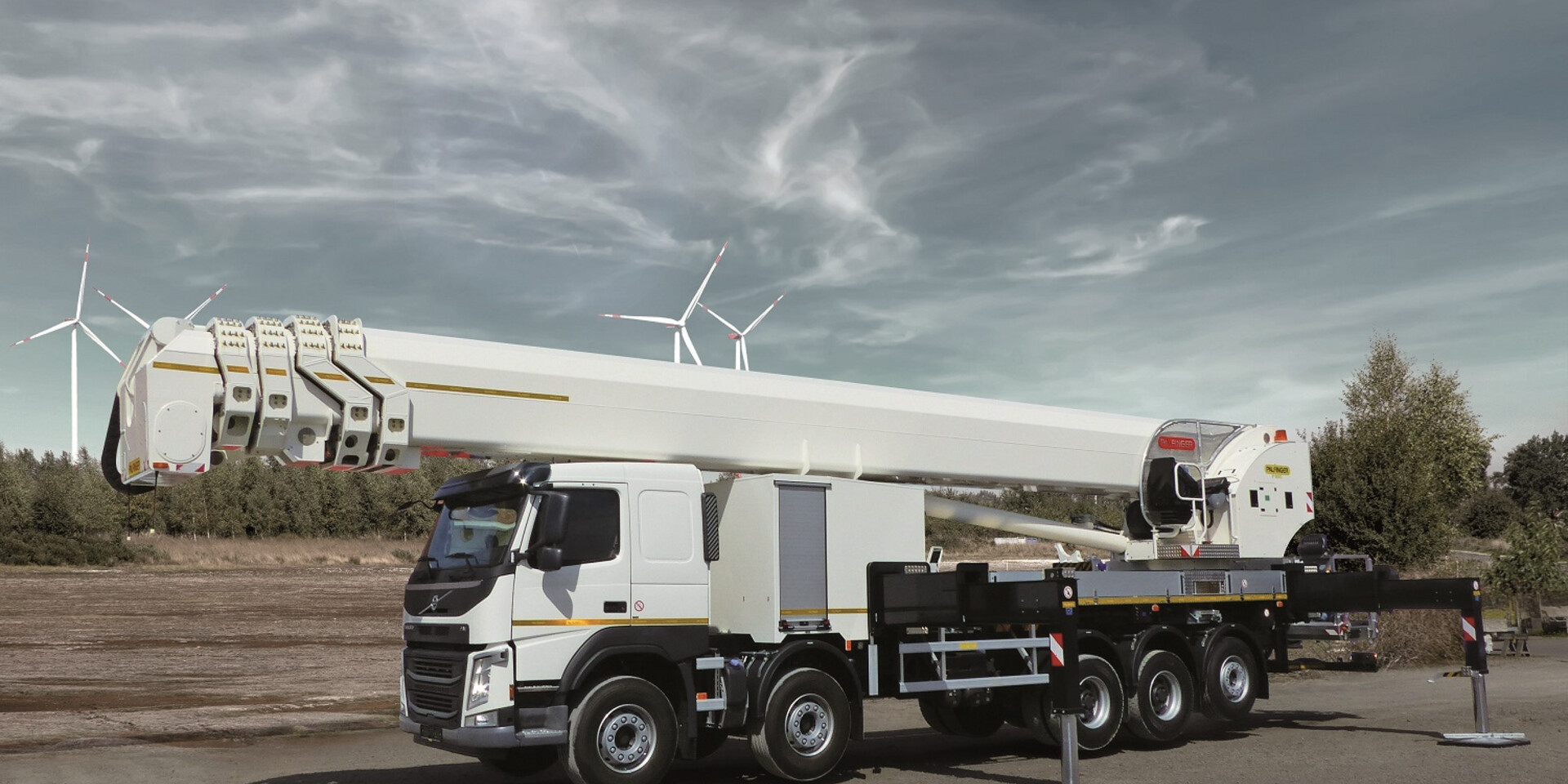

P 900

Access Platform
Working Height 90 M
Basket Load 700 KG
Side Reach 32,3 m
Technical Data

HIGH PERFORMANCE

With a working height up to 90 m and an outreach of up to 32.5 m with a cage load of 530 kg, the P 900 offers good values in all performance parameters and the well-known user-friendly operation.

  • The secondary control (including colour display and seat) allows full second operation on the turntable offers the complete operation of all platform movements as well as the optimum view of the boom system
  • GPD-Gravity Powered Drive allows an operation even when the engine is switched of and provides a safe return to the ground at any time
  • An integrated hydraulic tank in the base frame ensures a low centre of gravity during on-road driving
  • Telescopic cage with 530kg cage load and integrated preparation for Powerlift system
  • Wind speed 7 Upgrade allows working at market leading unattained working conditions
  • 180° horizontal cage boom rotation
  • 930 mm stabilising stroke to compensate for highly uneven terrain
  • Upgrated to wind speed 7 (15.5m/s) which allows operations that were not previously permitted due to wind speed restrictions
  • Extra-large storage space and illuminated tool boxes on the loading area provide space for all work equipment



Downloads
Max. height of work 90 m
Max. basket floor height 88 m
Max. horizontal outreach /with basket load 32,3 m
Slewing range of basket 2 x 84°
Hydraulic jib boom, working range 180°
Max. stabilizer spread 8 m
max. basket load 700 kg
Workman basket - breadth / length / height 2.15/3.45 x 0.95 x 1.15 m
Telescopic basket (when jib boom is not extended) 530 kg
Heavy-duty basket (when jib boom is not extended) 700 kg

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment
