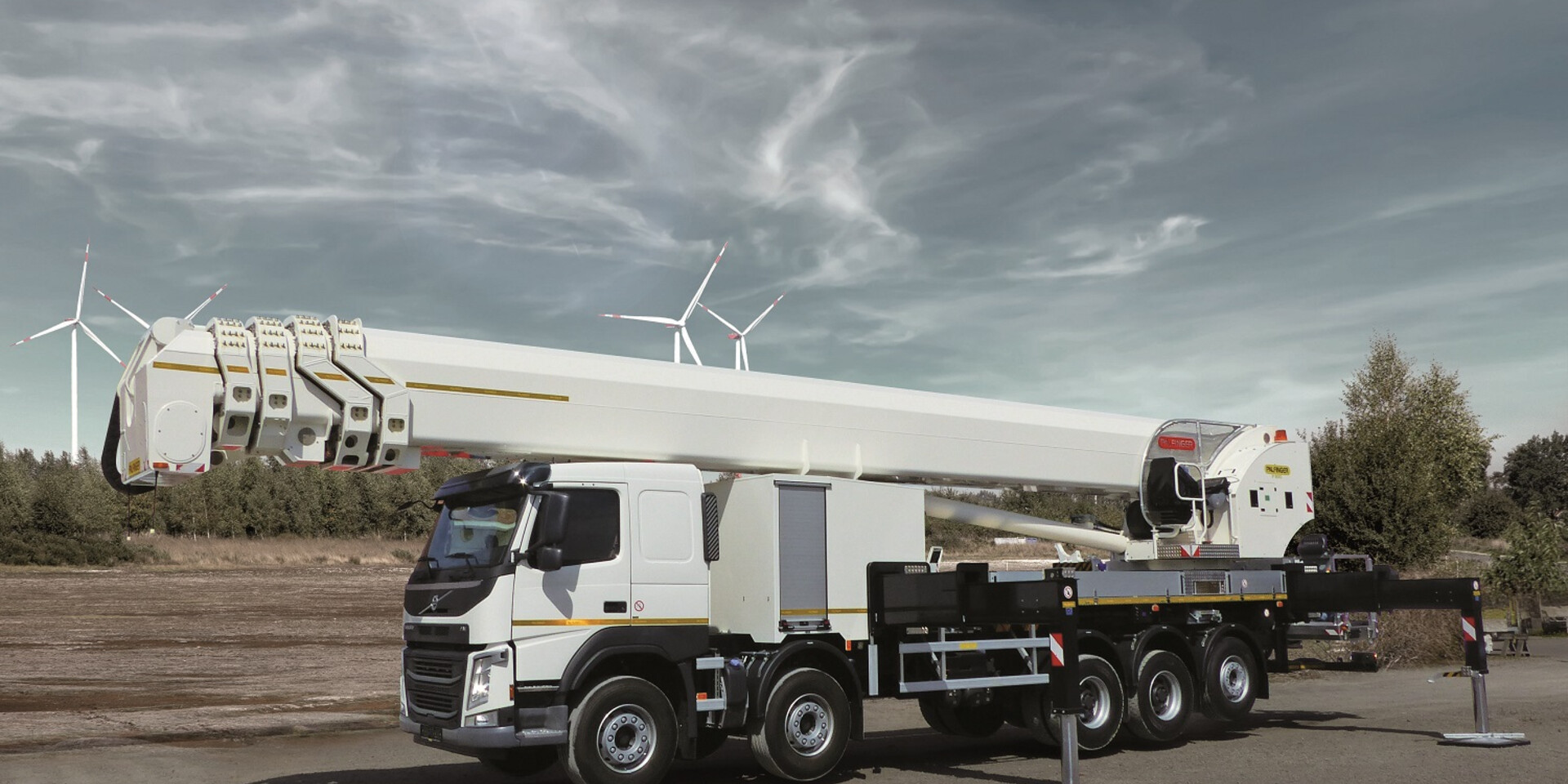

Working Height 90 m
Basket Load 700 kg
Side Reach 32,3 m
|Max. height of work||90 m|
|Max. basket floor height||88 m|
|Max. horizontal outreach /with basket load||32,3 m|
|Slewing range of basket||2 x 84°|
|Hydraulic jib boom, working range||180°|
|Max. stabilizer spread||8 m|
|max. basket load||700 kg|
|Workman basket - breadth / length / height||2.15/3.45 x 0.95 x 1.15 m|
|Telescopic basket (when jib boom is not extended)||530 kg|
|Heavy-duty basket (when jib boom is not extended)||700 kg|
*above mentioned values are standard values and vary depending on options and chassis
Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
