PK 23500 Performance
PK 23500 Performance
Loader Crane
| Max. lifting moment | 23.0 mt |
| Max. lifting capacity | 10000 kg |
| Max. hydraulic outreach | 16.7 m |
| Max. outreach (with fly jib) | 25.0 m |
| Slewing angle | 400° |
| Slewing torque | 2.8 mt |
| Stabilizer spread (std) | 48 m |
| Fitting space required (std) | 0.88 m |
| Width folded | 2.50 m |
| Max. operating pressure | 300 bar |
| Pump capacity | 50 - 80 gpm |
| Dead weight (std) | 2346 kg |

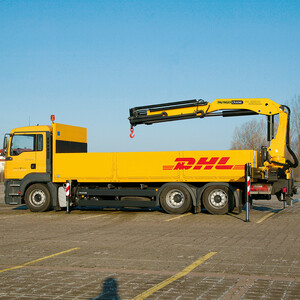

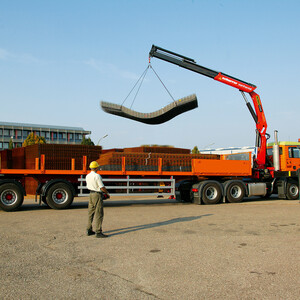

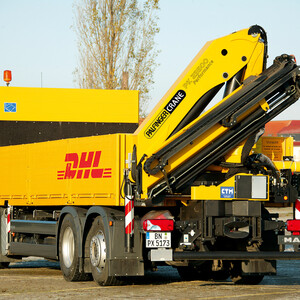

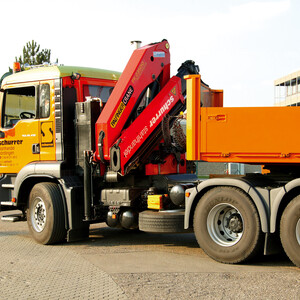

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| A | 22.4 | 8.2 | 400 | 2.8 | 30.0 | 50-75 | 2346 | 2300 | 2500 | 875 |
| B | 21.9 | 10.3 | 400 | 2.8 | 30.0 | 50-75 | 2506 | 2300 | 2500 | 875 |
| C | 21.5 | 12.4 | 400 | 2.8 | 30.0 | 50-75 | 2646 | 2300 | 2500 | 935 |
| D | 21.0 | 14.5 | 400 | 2.8 | 30.0 | 50-75 | 2782 | 2300 | 2500 | 975 |
| E | 20.7 | 16.7 | 400 | 2.8 | 30.0 | 50-75 | 2895 | 2300 | 2520 | 995 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
