PK 21.501 SLD 3
PK 21.501 SLD 3
Loader Crane
| Max. lifting moment | 20.9 mt |
| Max. lifting capacity | 6200 kg |
| Max. hydraulic outreach | 14.9 m |
| Max. manual outreach | 19.1 m |
| Slewing angle | 400° |
| Slewing torque | 2.3 mt |
| Stabilizer spread (std) | 5.0 m |
| Width folded | 2.50 m |
| Max. operating pressure | 330 bar |
| Pump capacity | 45 - 60 l/min |
| Dead weight (std) | 2260 kg |

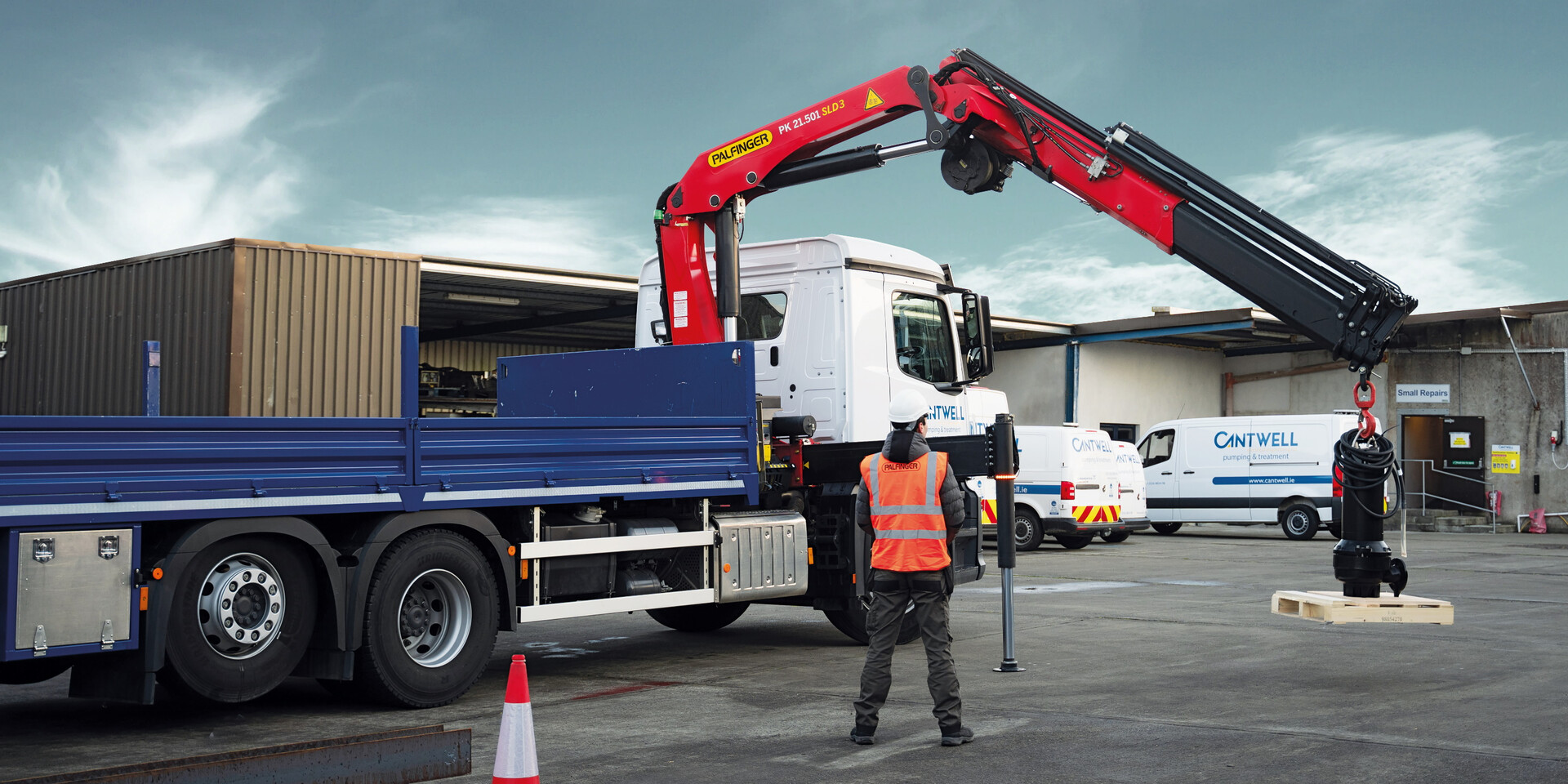

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |

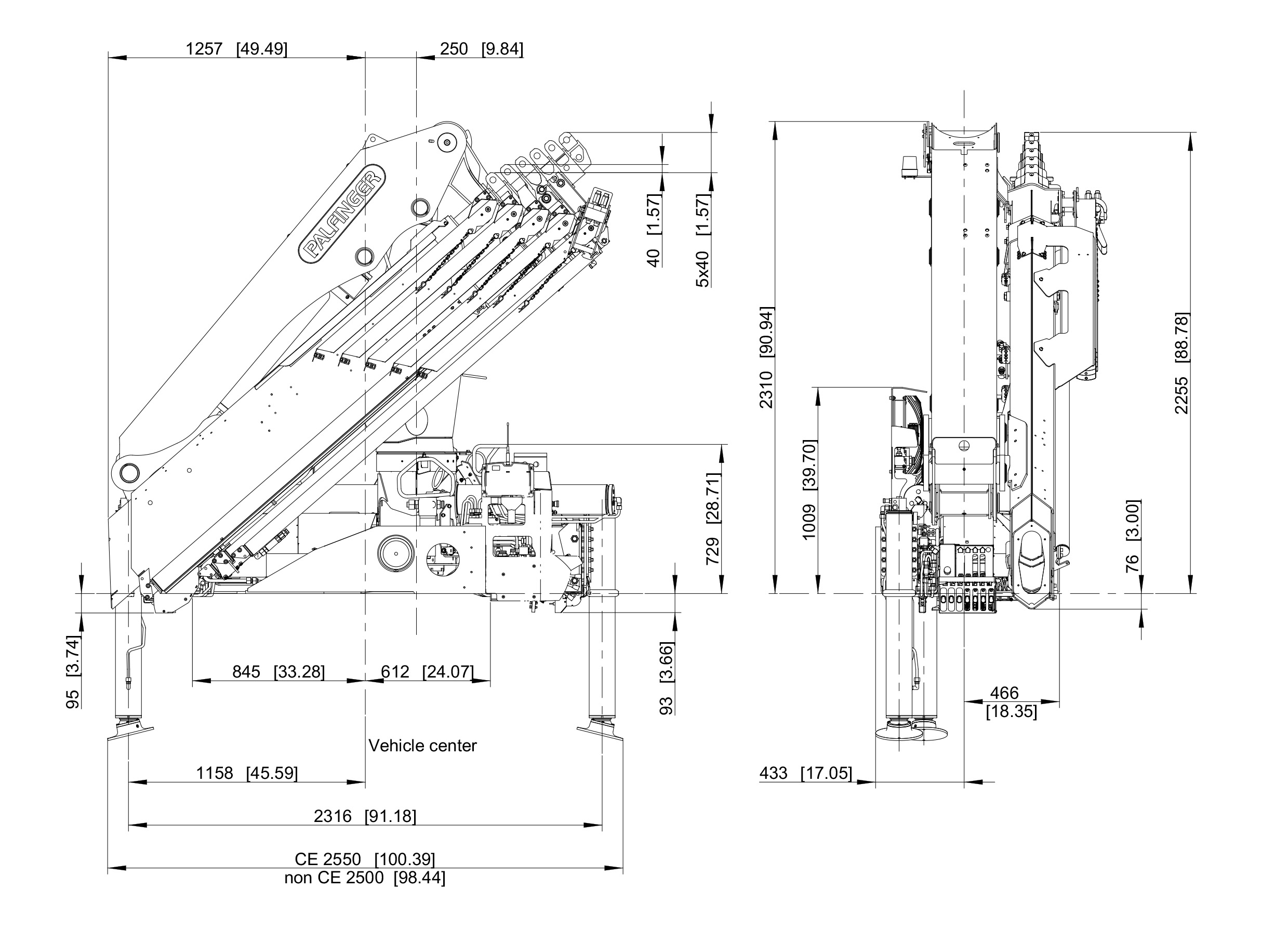

Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| A | 20.5 | 8.2 | 400 | 2.3 | 33.0 | 45-60 | 2250 | 2310 | 2550 | 905 |
| B | 20.0 | 10.0 | 400 | 2.3 | 33.0 | 45-60 | 2410 | 2310 | 2550 | 905 |
| C | 19.6 | 12.6 | 400 | 2.3 | 33.0 | 65-90 | 2540 | 2310 | 2550 | 975 |
| D | 19.3 | 14.9 | 400 | 2.3 | 33.0 | 45-60 | 2640 | 2310 | 2550 | 975 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
