Column

PTV-BG

Column Lift

alt text
alt text
alt text
alt text
Liftgates
Key Specs
Imperial
Metric
Weight Capacity
Up to 1996 kg Up to 4400 lbs.
Platform Size
Up to 1066.8 mm x 2184.4 mm Up to 42"x86"
Bed Height
Up to 1422.4 mm Up to 56"

The PTV-BG direct lift is built for rugged reliability in harsh environments. Combining European tech with North American manufacturing, it offers low running costs, extended compQonent life, and a durable, eco-friendly E-Coat finish for lasting performance.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Smart Gravity or Power Down Control

PALFINGER knows 80% of liftgate issues stem from battery voltage. Our gravity down feature saves power while delivering faster descent—even in cold climates or with aluminum platforms. Just press once or twice to choose your speed and optimize battery life.

alt text

Efficient Dual Motor System

The Secondary Motor activates only for lifting—just 25% of the time. For all other functions, our smart control alternates motors to extend component life and keep electrical temperatures low. Enjoy faster lifts and longer-lasting performance.

alt text

Highlights

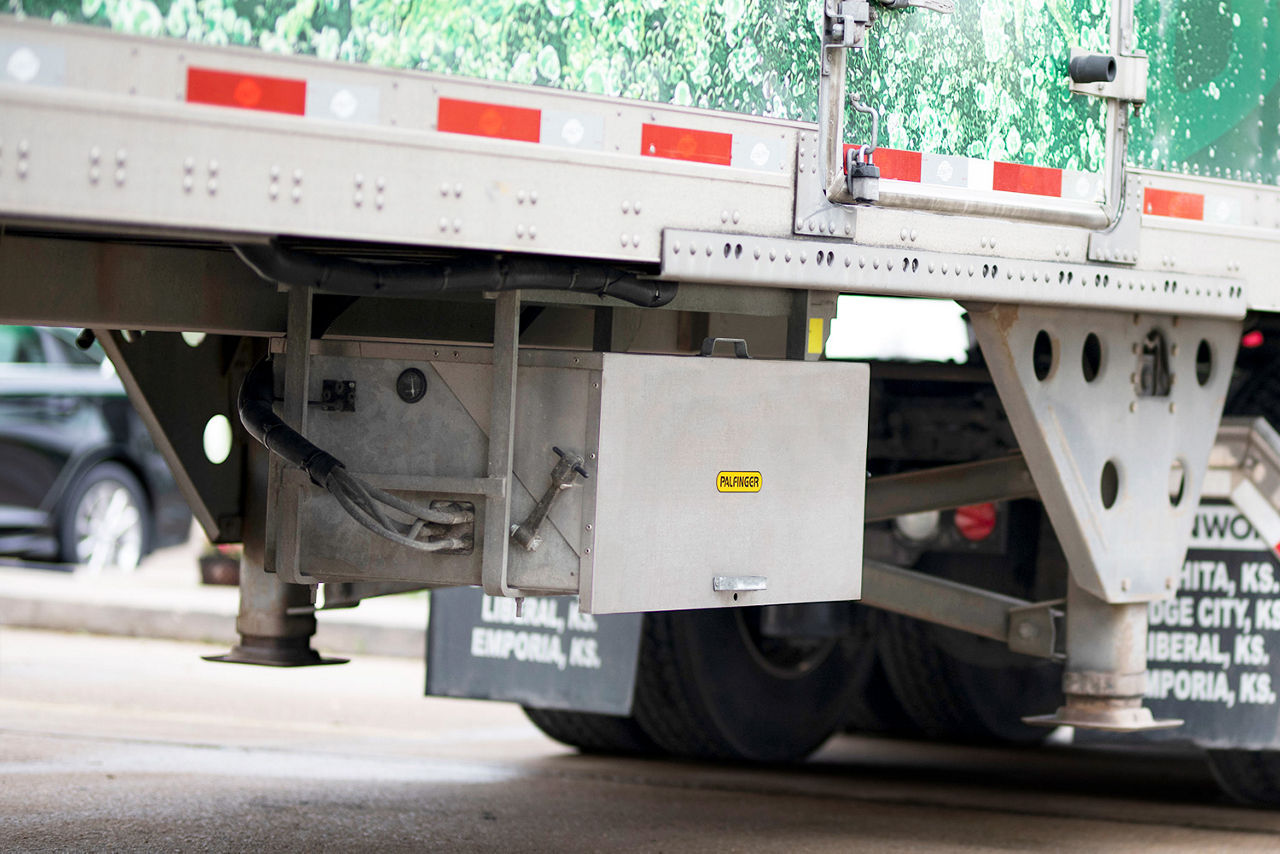

Standard H/D Pump and Motor Box

PALFINGER’s heavy-duty steel box enclosure comes standard with truck or trailer brackets and a corrosion-resistant aluminum lid. It houses dual pumps and up to three batteries, pre-wired and filled with multi-temp hydraulic fluid (-50°F to 150°F). Each unit includes a backup 3-button remote with a 20-ft cord for quick testing, service, or emergency use.
alt text

Smart Controls Ready for Telematics

PALFINGER’s advanced Control System features built-in diagnostics for quick voltage and system checks. It includes cycle counting, a resettable service counter, and CAN bus compatibility for fleet feedback. Housed in a rugged, hinged rubber enclosure, the PC board offers enhanced protection and visibility—ready for today’s telematics demands.
alt text

Bushings and Grease Zerks

PALFINGER’s PTV-BG liftgate features corrosion-protected hardened pins and grease-loading perforated bushings for extended service intervals. These rugged components are part of a low-maintenance design built to go the distance—just one example of the thoughtful engineering behind every PALFINGER liftgate.
alt text

Protected Power, Ready to Perform

The thermo-protected power pack is fully enclosed in the mount tube for added protection and slides out for quick inspection. Oversized, high-quality components reduce maintenance and downtime, ensuring reliable liftgate performance in demanding conditions and extreme temperatures.


alt text

Technical Specifications

Technical data U.S. Units

Lifting capacity (lbs)

Approx. weight (lbs)

Bed height range (inch)

Platform size length (inch)

Platform size width (inch)
PTV-BG 35 3,500 lbs 1495 lbs. 46-56" Available in 60" | 72" | 84" lengths Available in 80" | 86" widths
PTV-BG 44 4,400 lbs 1495 lbs. 46-56" Available in 60" | 72" | 84" lengths Available in 80" | 86" widths
Technical data metric

Lifting capacity

Approx. weight

Bed height range

Platform size length

Platform size width

PTV-BG 35 1,587 kg 678 kgs. 1168-1422 mm Available in 1524 mm | 1828 mm | 2133 mm lengths Available in 2032 mm | 2184 mm widths
PTV-BG 44 1,995 kg 678 kgs. 1168-1422 mm Available in 1525 mm | 1828 mm | 2133 mm lengths Available in 2032 mm | 2184 mm widths
Standard features
  • LED lights
  • Adjustable platform chains
  • Circuit breaker
  • Bottom stops
  • Volt gauge and pressure gauge
  • Master disconnect switch
  • Power down on command
  • Nylon sliding dock

Discover Standard Features

Galvanized

PALFINGER offers galvanized finishes in multiple combinations to suit your climate and operational needs. Engineered for superior corrosion resistance, this durable coating protects against rust and harsh conditions—ideal for demanding environments and long-term performance.

alt text

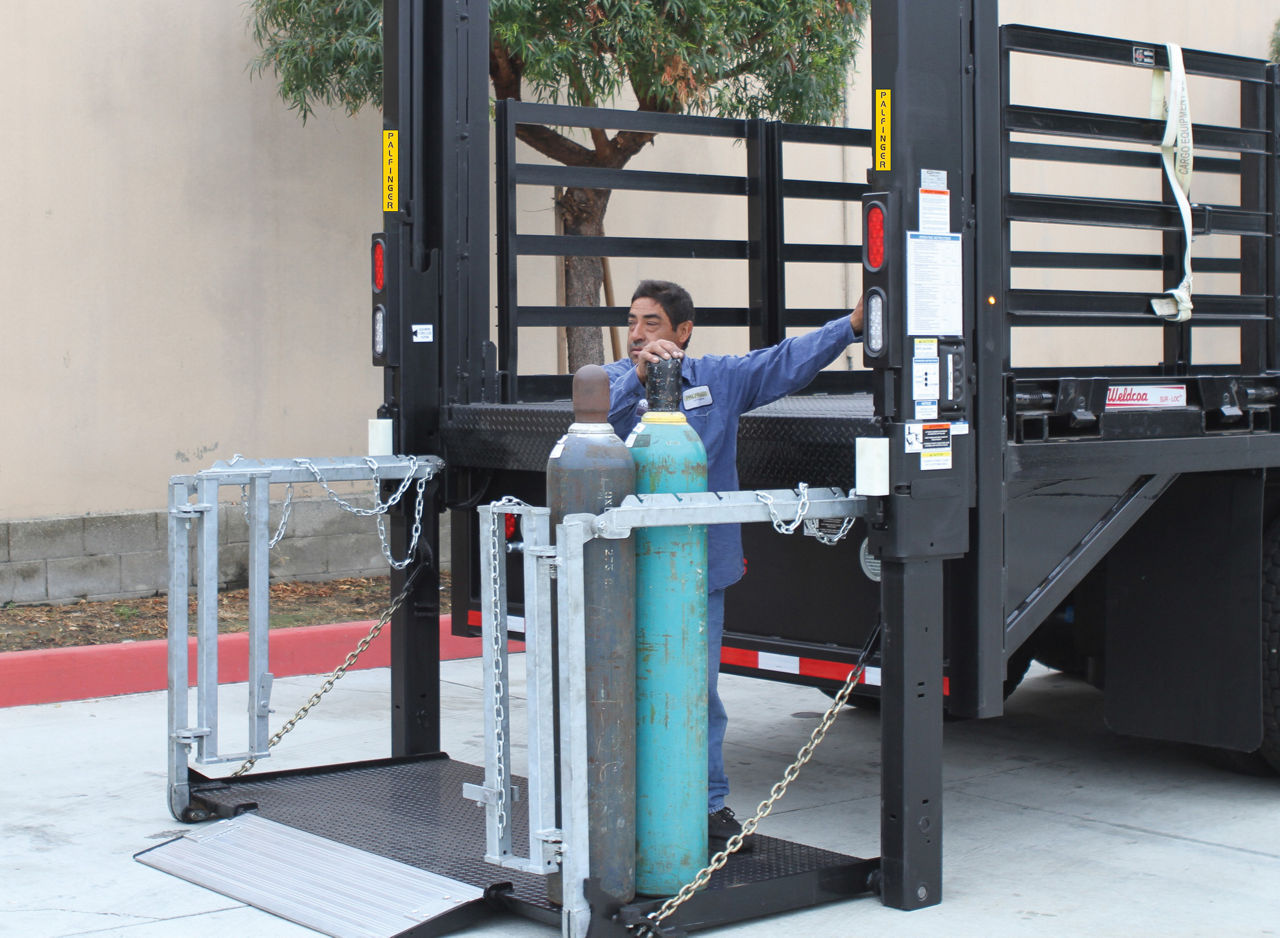

Bottle Gas Racking and Chains

Secure and organize your bottle gas cylinders with heavy-duty racking and chains—perfect for liftgate applications. Built for safety and durability, these solutions keep your gas bottles stable during transport and ready for any job.

Optional Features

102" Applications

102" applications provide a wider platform compared to 96" models.

Aluminum Platforms

Boost load capacity and durability with aluminum platforms—lightweight, corrosion-resistant, and built to perform. Ideal for delivery fleets and commercial vehicles.

16" Aluminum Retention Ramp

Secure cargo with confidence using our 16" aluminum retention ramp—lightweight, durable, and built for demanding liftgate applications. Designed to prevent roll-off during loading and unloading, it offers reliable performance, corrosion resistance, and easy handling for safer, more efficient operations.

Cart Stops

Secure cargo and prevent roll-off with heavy-duty cart stops—designed for liftgate-equipped service trucks. Built to withstand tough jobsite conditions, they offer reliable load control during loading and unloading. Easy to use, durable, and essential for safe, efficient operations.

Dual Pump and Motor

Power up performance with dual pump and motor systems—designed for faster liftgate operation, improved reliability, and reduced downtime. Ideal for high-cycle fleets and demanding commercial use. Experience smoother, more efficient lifting with built-in redundancy and superior hydraulic control.

Handheld Remote

Control liftgate functions with ease using our handheld remote—designed for durability, precision, and convenience. Whether you're loading or unloading, enjoy smooth, responsive operation right at your fingertips. Built for tough environments and reliable performance.

Dock Seal Header Kits

Designed for a tight seal, these kits minimize energy loss, safeguard cargo, and improve safety during loading and unloading. Built to withstand harsh conditions, they deliver long-lasting performance and efficiency for your operation.
