Key Specs
Imperial
Metric
- Weight Capacity
- Up to 2494.8 kg Up to 5,500 lbs.
- Platform Size
- Up to 1574.8 mm x 2184.4 mm Up to 62" x 86"
- Bed Height
- Up to 1422.4 mm Up to 56"
The PALFINGER PTF liftgate is built for performance and safety. Its 62" x 86" aluminum platform fits trucks with 48"-56" bed heights. Self-leveling, power-down, and underbody stowage make loading smooth and keep fleets dock-ready for any delivery.
Highlights
Galvanized Steel Protection
Every steel component is protected through an advanced 8-step hot dip galvanizing process, delivering superior corrosion resistance and long-lasting durability. This treatment ensures your liftgate withstands years of heavy use in harsh environments, reducing maintenance needs and maximizing operational reliability.
Designed for Ease of Use

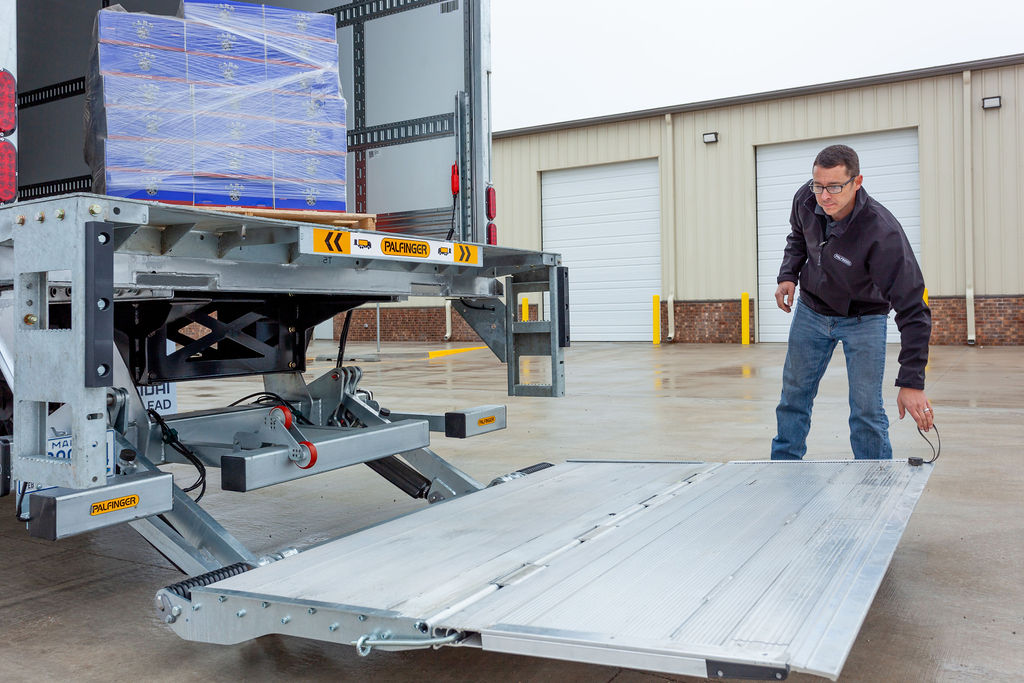

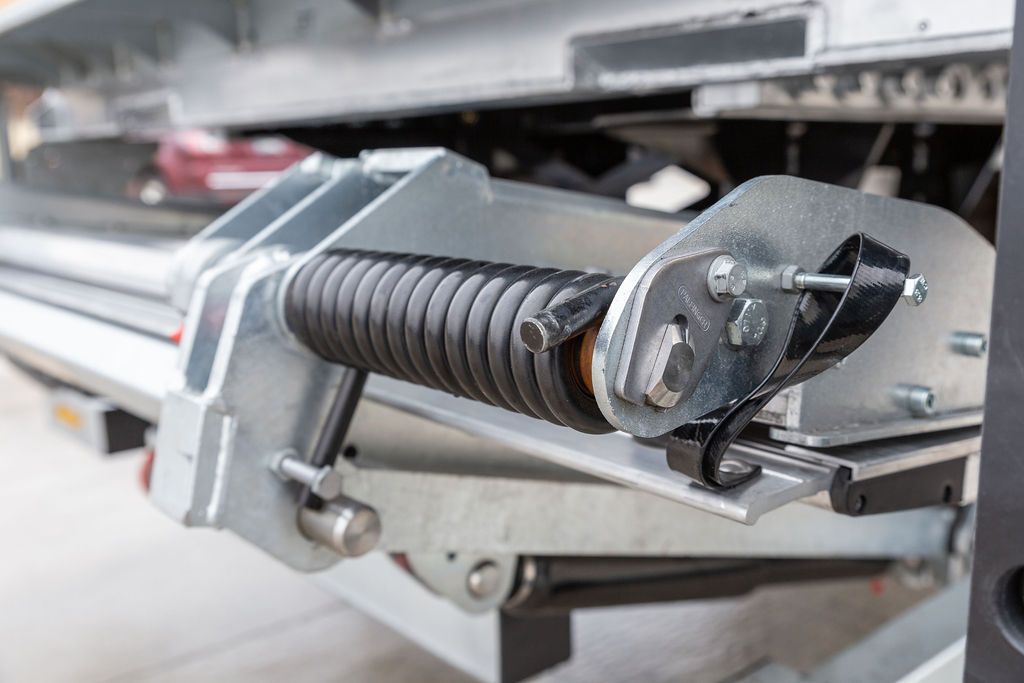

Heavy-duty torsion assist on both main and tip sections makes liftgate operation nearly effortless for drivers. The large 62" x 86" aluminum platform is engineered for strength and convenience, folding and unfolding smoothly to handle demanding loads with ease. Built for efficiency, durability, and operator comfort in every application.
3-Year Warranty

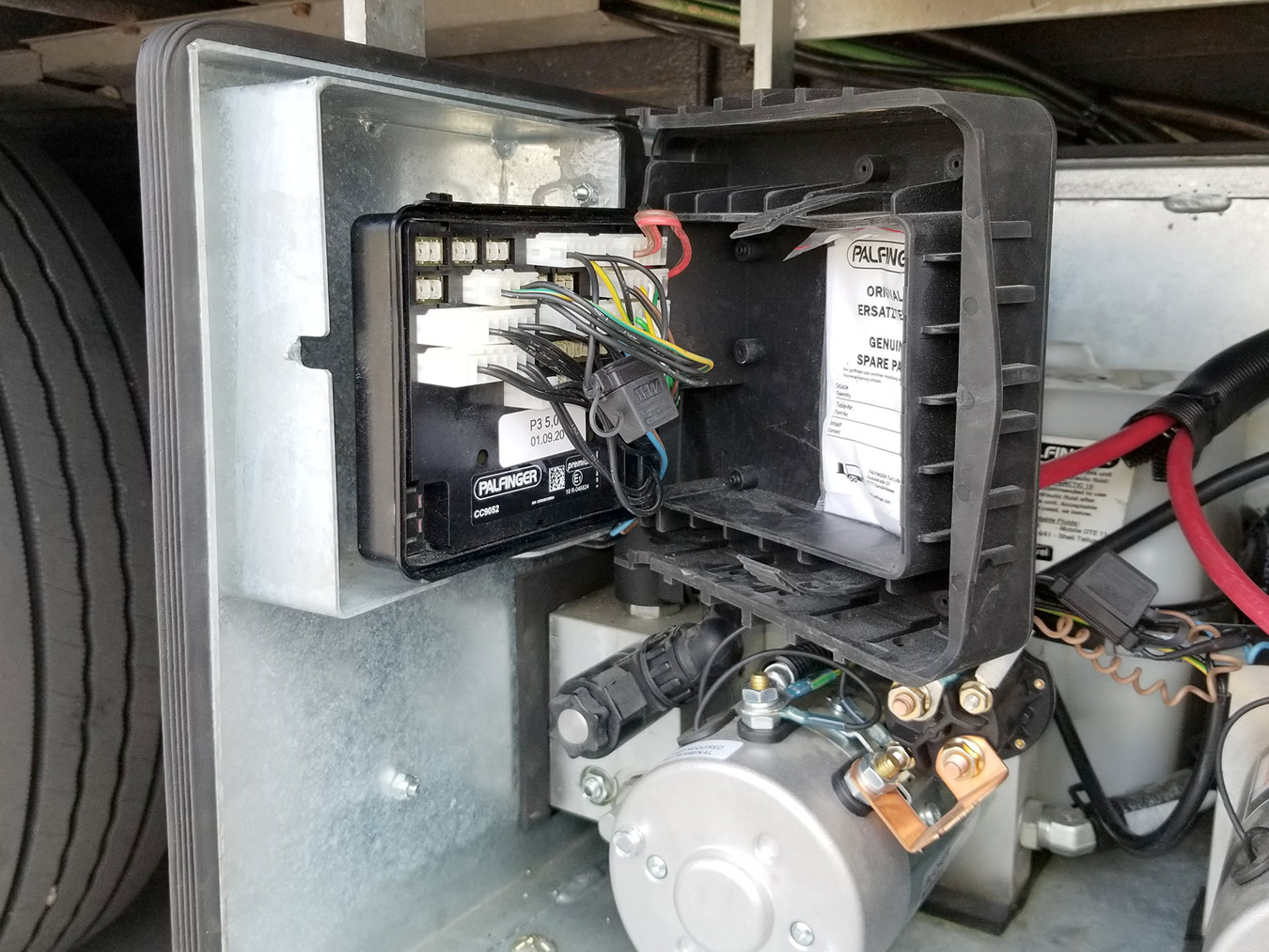

When you choose Interlift by PALFINGER, you get more than advanced technology. You partner with a trusted brand that’s committed to building your business. Our PTF liftgates offer a 3-Year Warranty on the pump and motor, cylinders, hardware, control system and hydraulics—giving you the peace of mind you need to focus on the job ahead.
Technical Specifications
Technical data U.S. Units
|
Lifting capacity (lbs) |
Approx. weight (lbs) |
Bed height range (inch) |
Platform size length (inch) |
Platform size width (inch) |
|
|---|---|---|---|---|---|
| PTF 50 | 5,000 lbs | 1,480 lbs. | 48" – 56" | 62" | 86" |
| PTF 50 WR | 5,000 lbs | 1,668 lbs. | 52" – 56" | 62" | 86" |
| PTF 55 | 5,500 lbs | 1,520 lbs. | 48" – 56" | 62" | 86" |
| PTF 55 WR | 5,500 lbs | 1,708 lbs. | 52" – 56" | 62" | 86" |
Bed height ranges: min = loaded / max = unloaded
Technical data metric
|
Lifting capacity |
Approx. weight |
Bed height range |
Platform size length |
Platform size width |
|
|---|---|---|---|---|---|
| PTF 50 | 2,268 kg | 671.3 kg | 1219.2 mm – 1422.4 mm | 1574.8 mm | 2184.4 mm |
| PTF 50 WR | 2,268 kg | 671.3 kg | 1320.8 mm – 1422.4 mm | 1574.8 mm | 2184.4 mm |
| PTF 55 | 2,494.8 kg | 689.5 kg | 1219.2 mm – 1422.4 mm | 1574.8 mm | 2184.4 mm |
| PTF 55 WR | 2,494.8 kg | 774.7 kg | 1320.8 mm – 1422.4 mm | 1574.8 mm | 2184.4 mm |
Bed height ranges: min = loaded / max = unloaded
Standard features
- Hydraulic cylinder locks
- Toggle switch
- Pre-assembled frame and platform
- 2-button hand control CC hard mount
- Pre-assembled three-piece DOT rear impact guard for truck and trailer
- Cab shut-off switch
- Level ride platform with automatic ground tilt
- 150 Amp resettable circuit breaker
- Platform torsion assist-main and tip
- 2 Ga. x 40’ power and ground cables
- Pre-welded mount plates for chassis frame width: 34”
- 96" wide bed extension w/bolt kit, galvanized
- Dock bumpers with bolt kit
- Double-acting dual cylinder stability
Cart Stops
Secure cargo and prevent roll-off with heavy-duty cart stops—designed for liftgate-equipped service trucks. Built to withstand tough jobsite conditions, they offer reliable load control during loading and unloading. Easy to use, durable, and essential for safe, efficient operations.
Power Down
Power-down functionality ensures smooth, controlled descent—ideal for precision unloading and added safety. Designed for reliability in demanding conditions, this system delivers consistent performance, reduced wear, and better operator control with every cycle.
Galvanized
PALFINGER offers galvanized finishes in multiple combinations to suit your climate and operational needs. Engineered for superior corrosion resistance, this durable coating protects against rust and harsh conditions—ideal for demanding environments and long-term performance.
