Cantilever
ILK
Cantilever Lift
Liftgates
Key Specs
Imperial
Metric
- Weight Capacity
- Up to 2722 kg Up to 6600 lbs.
- Platform Size
- Up to 2133.6 mm x 2489.2 mm Up to 84"x98"
- Bed Height
- Up to 1524 mm Up to 60"

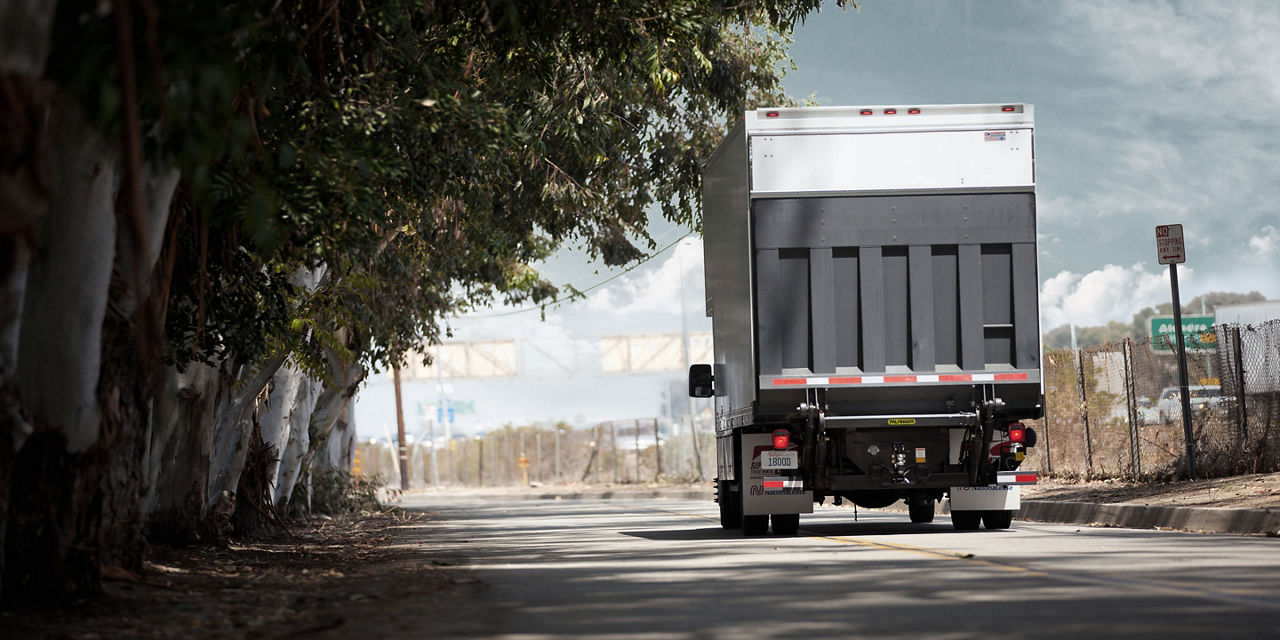

The ILK liftgate delivers unmatched versatility—combining a tailgate, rear door, and adjustable dock plate. Its solid platform adapts to uneven ground, ensuring smooth, safe loading. Built tough for relentless use, it’s ready for whatever the job demands.
Technical Specifications
Technical data U.S. Units
|
Lifting capacity (lbs) |
Approx. weight (lbs) |
Bed height range (inch) |
Platform size length (inch) |
Platform size width (inch) |
|
|---|---|---|---|---|---|
| ILK 18 | 1,800 lbs | 450 lbs. | 28-42" | 60" | 94" |
| ILK 22 | 2,200 lbs | 690-790 lbs. | 30-39" | Available in 48" | 60" lengths | Available in 94" | 98" lengths |
| ILK 33 | 3,300 lbs | 1190-1300 lbs. | 36-55.5" | Available in 48" | 60" | 72" | 84" lengths | Available in 94" | 98" widths |
| ILK 44 | 4,400 lbs | 1300-1470 lbs. | 36-55.5" | Available in 48" | 60" | 72" | 84" lengths | Available in 94" | 98" widths |
| ILK 55 | 5,500 lbs | 1400-1500 lbs. | 36-55.5" | Available in 60" | 72" | 84" lengths | Available in 94" | 98" widths |
| ILK 66 | 6,600 lbs | 1650-1700 lbs. | 40-60" | Available in 72" | 84" lengths | Available in 94" | 98" widths |
Technical data metric
|
Lifting capacity |
Approx. weight |
Bed height range |
Platform size length |
Platform size width |
|
|---|---|---|---|---|---|
| ILK 18 | 816 kg | 204 kgs. | 711-1066 mm | 1524 mm | 2387 mm |
| ILK 22 | 997 kg | 312-358 kgs. | 762-990 mm | Available in 1219 mm | 1524 mm lengths | Available in 2387 mm | 2489 mm widths |
| ILK 33 | 1,496 kg | 539-589 kgs. | 1190-1300 mm | Available in 1219 mm | 1524 mm | 1828 mm | 2133 mm lengths | Available in 2387 mm | 2489 mm widths |
| ILK 44 | 1,995 kg | 589-666 kgs. | 1300-1470 mm | Available in 1219 mm | 1524 mm | 1828 mm | 2133 mm lengths | Available in 2387 mm | 2489 mm widths |
| ILK 55 | 2,494 kg | 635-680 kgs. | 914-1409 mm | Available in 1524 mm | 1828 mm | 2133 mm lengths | Available in 2387 mm | 2489 mm widths |
| ILK 66 | 2,993 kg | 748-771 kgs. | 1016-1524 mm | Available in 1828 mm | 2133 mm lengths | Available in 2387 mm | 2489 mm widths |
Standard features
- Ground rollers on the platform
- Three-piece rear impact guard
- 105-degree tilting platform maintains level through operation
- Cab shut-off switch
- 150 AMP circuit breaker
- Automatic leveling
Bushings & Zerks at All Pivot Points
Bushings and grease zerks at all pivot points ensure smoother operation and extended component life. Designed for durability and easy maintenance, this setup minimizes wear and reduces service intervals—ideal for fleets seeking long-term reliability and performance.
Handheld Remote
Control liftgate functions with ease using our handheld remote—designed for durability, precision, and convenience. Whether you're loading or unloading, enjoy smooth, responsive operation right at your fingertips. Built for tough environments and reliable performance.
E-Coat Protection
PALFINGER’s standard e-coat process ensures unmatched corrosion protection. All parts are cleaned in 4 baths, pre-treated with phosphate coating, then fully immersed in high-performance PPG paint. A direct current bonds the coating to steel, sealing every surface for lasting durability.
