Hydraulic
PK 11001 CM
Service Cranes
Key Specs
Imperial
Metric
- Max Lifting Moment
- 74,550 ft_lbs
- Max Lifting Capacity
- 5,601.9 kg 12350 lbs
- Max Hydraulic Outreach
- 10.2 m 33' 6"
Unlock full potential with the PK 11001 CM Corner Mount crane—engineered for service-body trucks to maximize compartment space and rear-bumper access. Add auxiliary tools and turn it into a versatile workhorse ready to tackle any job with power and precision.
Equipment & Accessories
P2 Radio Remote Control
Upgrade to PALFINGER's paddle-style controller for added safety and control. When plugged into the receiver, it completely disables the radio signal—giving you secure, wired operation and peace of mind on the job site. Designed for reliability and smooth performance in demanding conditions.
Technical Specifications
Technical Data U.S. Units
- Max. lifting moment
- 74,550 ft_lbs
- Max. lifting capacity
- 12350 lbs
- Max. hydraulic outreach
- 33' 6"
- Slewing angle
- 390
- Slewing torque with 1 gear
- 9,360 ft_lbs
- Stabilizer spread (std)
- 13'
- Max. operating pressure
- 4,640 psi
- Pump capacity
- 7.9 - 11.9 US gpm
- Dead weight (std)
- 2,770 kg
Lifting Capacities U.S. Units
|
Crane Weight (lbs) |
Lifting moment (ft_lbs) |
Pressure (psi) |
Outreach |
Pump capacity (gpm) |
Slewing angle (°) |
Slewing torque (ft_lbs) |
|
|---|---|---|---|---|---|---|---|

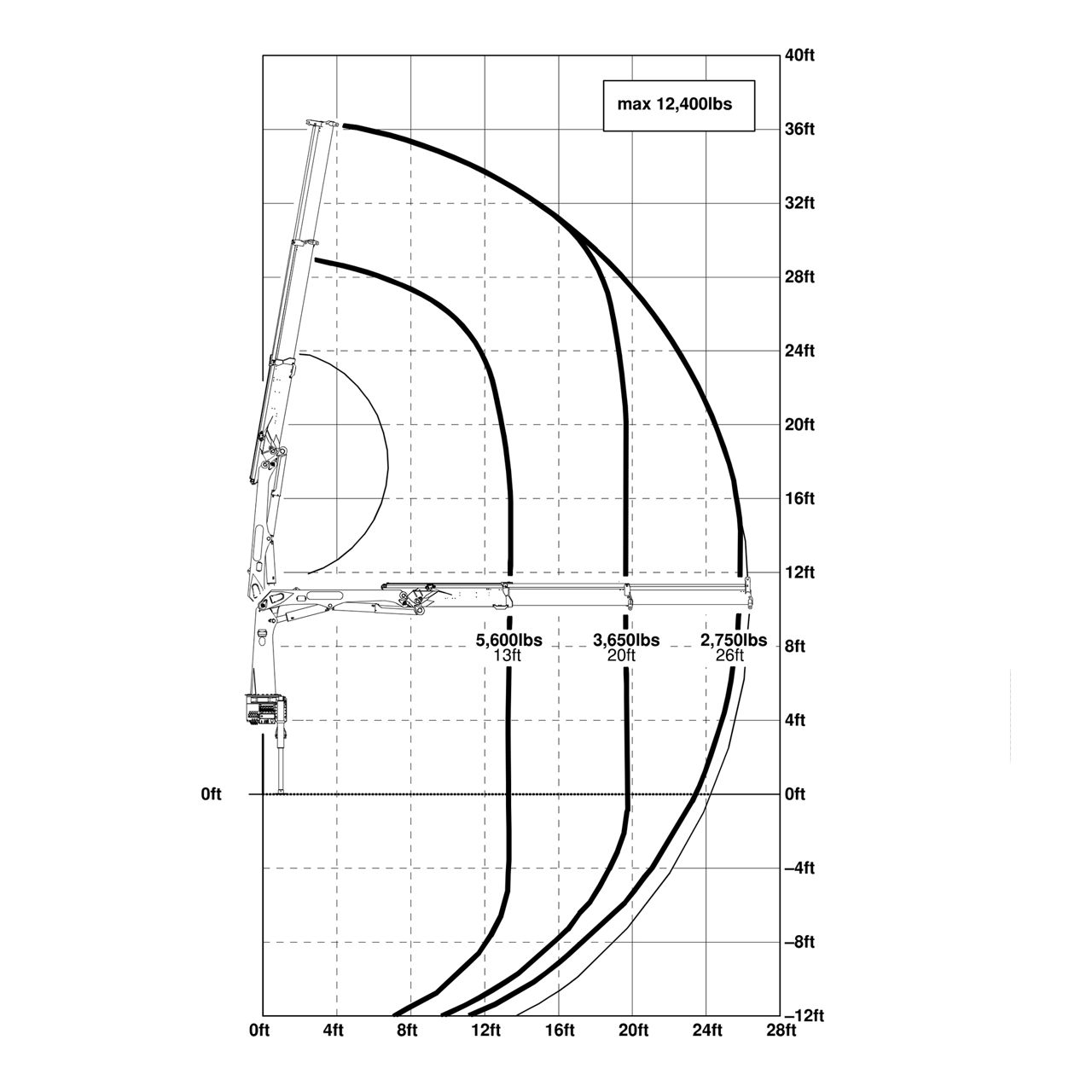

| A | 2,820 lbs | 74,521 ft_lbs | 4,640 psi | N/A | 7.9 - 11.9 | 390 | 9360 |

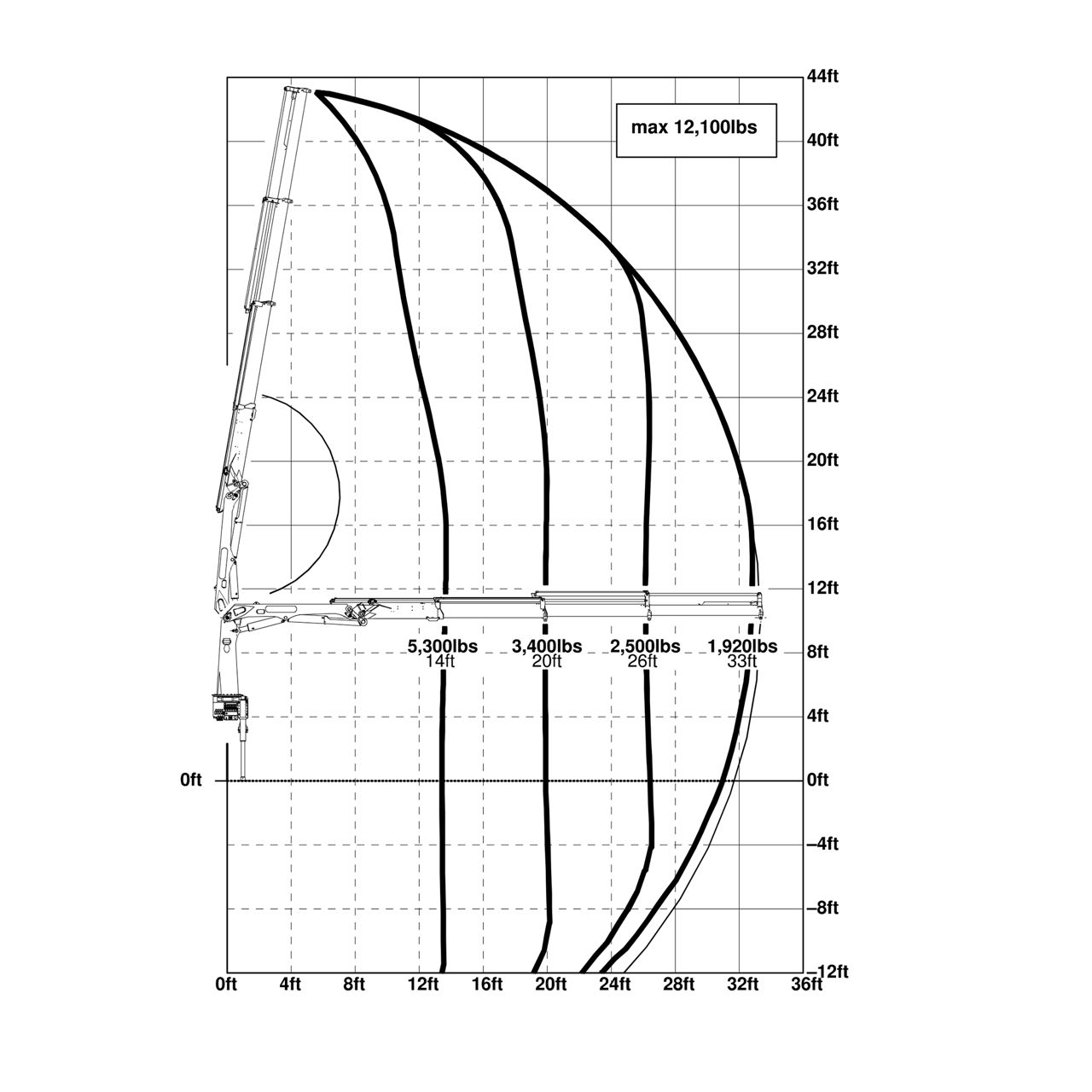

| B | 3,075 lbs | 71,627 ft_lbs | 4,640 psi | N/A | 7.9 - 11.9 | 390 | 9360 |
Low Maintenance Extension System
Lead the way in service-friendly crane design with our low-maintenance extension system, which utilizes a sealed, wear-resistant design featuring optimized sliding elements and corrosion-protected components. This minimizes lubrication requirements and reduces service intervals, ensuring maximum uptime and operational reliability.
Power Link Plus
Our advanced linkage system connects the knuckle boom and main boom to boost lifting power in critical positions while maintaining constant speed. This design ensures maximum performance and efficiency for demanding material handling applications.
Radio Remote Control
Enhance control and safety with our radio remote control system featuring proportional wireless operation, LED crane capacity display, and a tethered backup cable. Includes two rechargeable batteries with a charger for uninterrupted performance.
Slewing Drive
Experience unmatched precision with our service crane slewing drive, delivering smooth, controlled rotation and high torque for heavy-duty lifting. Engineered for reliability and performance, it ensures optimal maneuverability and efficiency in every operation.
Tiltable Stabilizer Plates
Adapt to any terrain with tiltable stabilizer plates featuring a 14° offset for superior ground contact. No need to remove stabilizer foot plates during transport—maximize efficiency and safety for your service crane operations.
Rope Winch
Boost crane safety and performance with our service cranes featuring integrated two-block damage prevention, end-layering protection, and rotation-resistant cable. Fully compliant with ASME B30.22 and CSA Z150.3 standards for unmatched reliability and durability.
Optional Features
Transport Position Switches
Factory-mounted transport switches enhance safety by preventing the crane operator from driving without properly stowing the boom, outriggers, and stabilizers. This smart feature ensures secure transport and protects your equipment and worksite.
Stabilizer Warning Lights
Standard LED warning lights on stabilizer cylinders ensure maximum visibility and safety. Bright orange LEDs alert crane operators, pedestrians, and passing traffic—enhancing awareness and reducing risk during material handling operations.
