Knuckle Boom

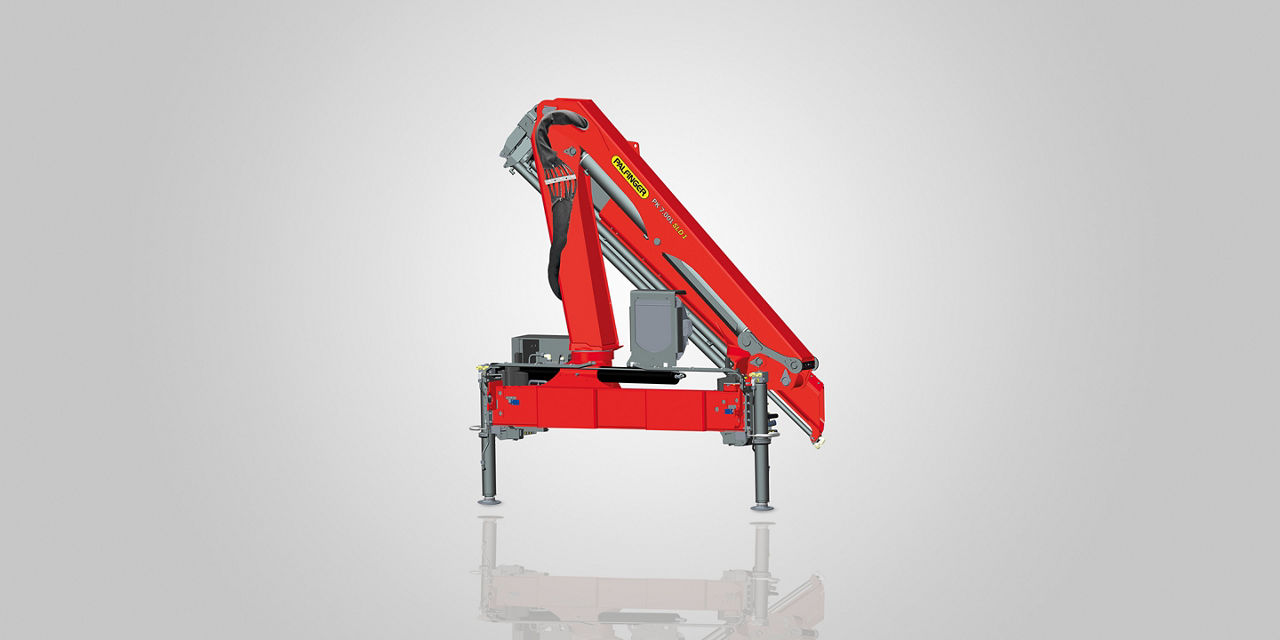

PK 7.001 SLD 1
Knuckle Boom Crane
Key Specs
Imperial
Metric
- Max Lifting Moment
- 6.2 mt 44,500 ft_lbs
- Max Lifting Capacity
- 3,300 kg 7300 lb
- Max Hydraulic Outreach
- 11.2 m 36' 9''
The SLD range combines trusted technology with durable design to deliver robust, value-driven performance. With excellent geometry and durability, the lightweight yet powerful PK 7.001 SLD 1 is built for repetitive tasks. Single Link boosts hook power for faster cycles, ideal for swift yet precise construction site handling.
Technical Specifications
Technical data U.S. Units
- Max. lifting moment
- 44,500 ft_lbs
- Max. lifting capacity
- 7300 lb
- Max. hydraulic outreach
- 36' 9''
- Max. manual outreach
- 42"
- Slewing angle
- 400°
- Slewing torque
- 5,750 ft_lbs
- Stabilizer spread (std)
- 14' 3"
- Fitting space required (std)
- 2' 2''
- Width folded
- 7' 3''
- Max. operating pressure
- 4,785 psi
- Pump capacity
- 5.3 - 7.9 gpm
- Dead weight (std)
- 1,650 lbs
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Technical Data Metric
- Max. lifting moment
- 6.2 mt
- Max. lifting capacity
- 3,300 kg
- Max. hydraulic outreach
- 11.2 m
- Max. manual outreach
- 12.9 m
- Slewing angle
- 400°
- Slewing torque
- 0.8 mt
- Stabilizer spread (std)
- 30 m
- Fitting space required (std)
- 0.66 m
- Width folded
- 2.2 m
- Max. operating pressure
- 330 bar
- Pump capacity
- 20 - 30 l/min
- Dead weight (std)
- 750 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities U.S. Units
|
Crane Weight (lbs) |
Lifting moment (ft_lbs) |
Pressure (psi) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
Outreach |
Pump capacity (gpm) |
Slewing angle (°) |
Slewing torque (ft_lbs) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 1,650 lbs | 44,857 ft_lbs | 4,786 psi | 75.98 inch | 87.4 inch | 25.98 inch | 18' 1" | 5.3 - 7.9 | 400 | 5750 |
| A | 1,830 lbs | 43,410 ft_lbs | 4,786 psi | 75.98 inch | 87.4 inch | 25.98 inch | 24' 3" | 5.3 - 7.9 | 400 | 5750 |
| B | 1,985 lbs | 41,963 ft_lbs | 4,786 psi | 75.98 inch | 87.4 inch | 25.98 inch | 42' | 5.3 - 7.9 | 400 | 5750 |
| C | 2,116 lbs | 40,516 ft_lbs | 4,786 psi | 75.98 inch | 87.4 inch | 25.98 inch | 42' | 5.3 - 7.9 | 400 | 5750 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities Metric
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 1,930 mm | 750 kg | 2,200 mm | 660 mm | 6.2 mt | 5.5 m | 33 bar | 20-30 | 400 | 0.8 |
| A | 1,930 mm | 830 kg | 2,200 mm | 660 mm | 5.9 mt | 7.4 m | 33 bar | 20-30 | 400 | 0.8 |
| B | 1,930 mm | 900 kg | 2,200 mm | 660 mm | 5.8 mt | 9.3 m | 33 bar | 20-30 | 400 | 0.8 |
| C | 1,930 mm | 960 kg | 2,220 mm | 660 mm | 5.6 mt | 11.2 m | 33 bar | 20-30 | 400 | 0.8 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Optional Features
Radio Remote Control – Full Control
Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
