Knuckle Boom Crane
PK 4200
PK 4200 High Performance
Knuckle Boom Crane
Key Specs
Imperial
Metric
- Max Lifting Moment
- 3.9 mt 28,220 ft_lbs
- Max Lifting Capacity
- 990 kg 2183 lbs
- Max Hydraulic Outreach
- 9.7 m 32' 2"

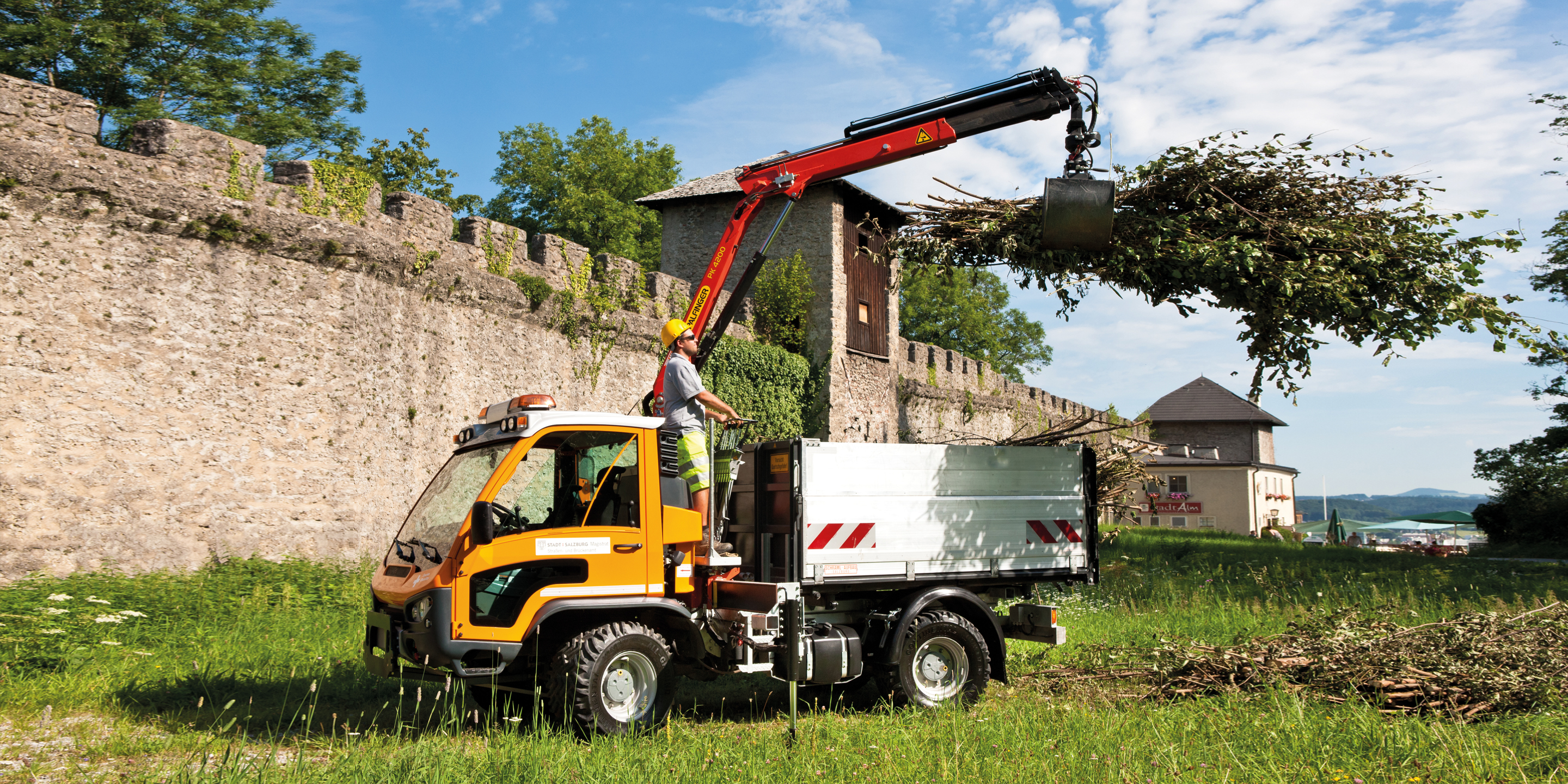

Versatile small cranes with optimised power-to-weight ratio for lightweight commercial vehicles
- High outreach with up to four hydraulic extensions
- Optimised dead weight
- Small overall width for use in inner city areas
- High value retention thanks to coating technology
Technical Specifications
Technical data U.S. Units
- Max. lifting moment
- 28,220 ft_lbs
- Max. lifting capacity
- 2183 lbs
- Max. hydraulic outreach
- 32' 2"
- Max. manual outreach
- 32' 2"
- Slewing angle
- 370°
- Slewing torque
- 2,890 ft_lbs
- Stabilizer spread (std)
- 9' 6"
- Fitting space required (std)
- 1' 9"
- Width folded
- 6' 3"
- Max. operating pressure
- 3,625 psi
- Pump capacity
- 4.0 gpm
- Dead weight (std)
- 1,080 lbs
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Technical Data Metric
- Max. lifting moment
- 3.9 mt
- Max. lifting capacity
- 990 kg
- Max. hydraulic outreach
- 9.7 m
- Slewing angle
- 370°
- Slewing torque
- 0.4 mt
- Stabilizer spread (std)
- 3.3 m
- Fitting space required (std)
- 0.53 m
- Width folded
- 1.9 m
- Max. operating pressure
- 250 bar
- Pump capacity
- 15 l/min
- Dead weight (std)
- 491 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities U.S. Units
|
Crane Weight (lbs) |
Lifting moment (ft_lbs) |
Pressure (psi) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
Outreach |
Pump capacity (gpm) |
Slewing angle (°) |
Slewing torque (ft_lbs) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 1,082 lbs | 28,217 ft_lbs | 3,626 psi | 64.96 inch | 74.8 inch | 20.87 inch | 16' 1'' | 4 | 370 | 2893 |
| A | 1,202 lbs | 26,770 ft_lbs | 3,626 psi | 64.96 inch | 74.8 inch | 20.87 inch | 32' 2" | 4 | 370 | 2893 |
| B | 1,312 lbs | 26,046 ft_lbs | 3,626 psi | 64.96 inch | 75.39 inch | 20.87 inch | 32' 2" | 4 | 370 | 2893 |
| C | 1,409 lbs | 25,323 ft_lbs | 3,626 psi | 64.96 inch | 78.74 inch | 20.87 inch | 32' 2'' | 4 | 370 | 2893 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities Metric
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 1,650 mm | 491 kg | 1,900 mm | 530 mm | 3.9 mt | 4.9 m | 25 Mpa | 15 | 370 | 0.4 |
| A | 1,650 mm | 545 kg | 1,900 mm | 530 mm | 3.7 mt | 6.5 m | 25 Mpa | 15 | 370 | 0.4 |
| B | 1,650 mm | 595 kg | 1,915 mm | 530 mm | 3.6 mt | 8.1 m | 25 Mpa | 15 | 370 | 0.4 |
| C | 1,650 mm | 639 kg | 2,000 mm | 530 mm | 3.5 mt | 9.8 m | 25 Mpa | 15 | 370 | 0.4 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Long-Lasting Coating for Maximum Protection
Advanced coating technology protects components against corrosion, wear, and harsh weather conditions. Multi-stage surface treatment and durable, eco-friendly coatings create a tough, elastic finish with high impact and UV resistance. This extends service life, maintains a high-quality appearance, and preserves resale value while reducing environmental impact and long-term maintenance effort.
Optional Features
Rope Winch – Controlled Vertical Lifting
Rope winch enables precise vertical lifting and lowering of loads, even at long reach or great height. Integrated into the crane control system, it allows smooth, controlled movements and accurate positioning. Assisted functions improve safety, reduce load swing, and expand lifting applications where vertical handling, fine control, or high placement accuracy are required.
Radio Remote Control – Full Control
Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
