L Crane

C80L

Compact L-Type Timber Loader Crane

alt text
Epsilon Timber and Recycling Crane
Key Specs
Imperial
Metric
Max. outreach
9.4 m
Max. lifting moment
76 kNm
Dead Weight
1710 kg

This L-type recycling loader crane from our Epsolution range has a lifting capacity of 8 metric tons and is available in three telescopic arm lengths: 7.6, 7.7 m and 9.4 m. The C80L features Epscope and Epslink technologies for optimized protection against mechanical damage.

*Depending on the variant and equipment selected.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

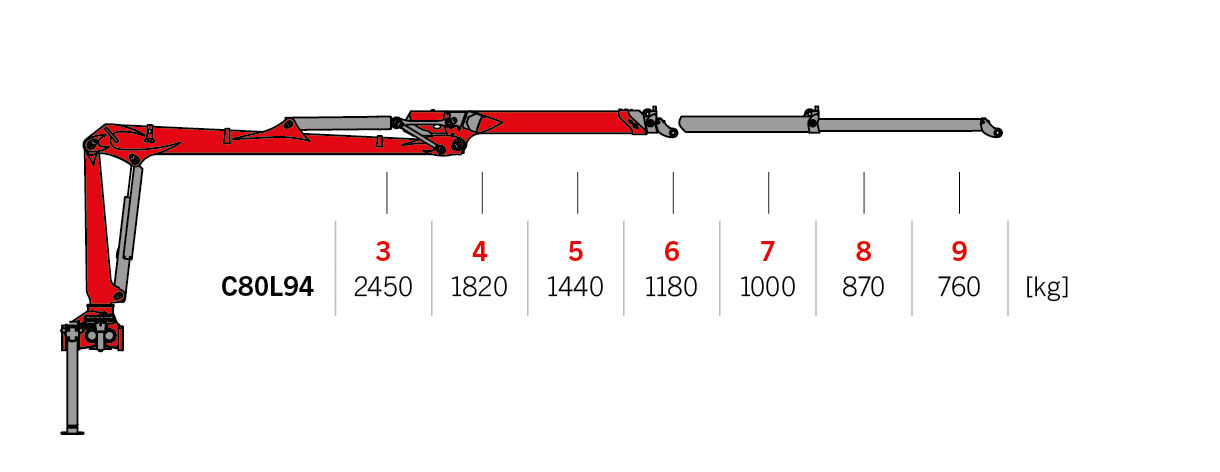

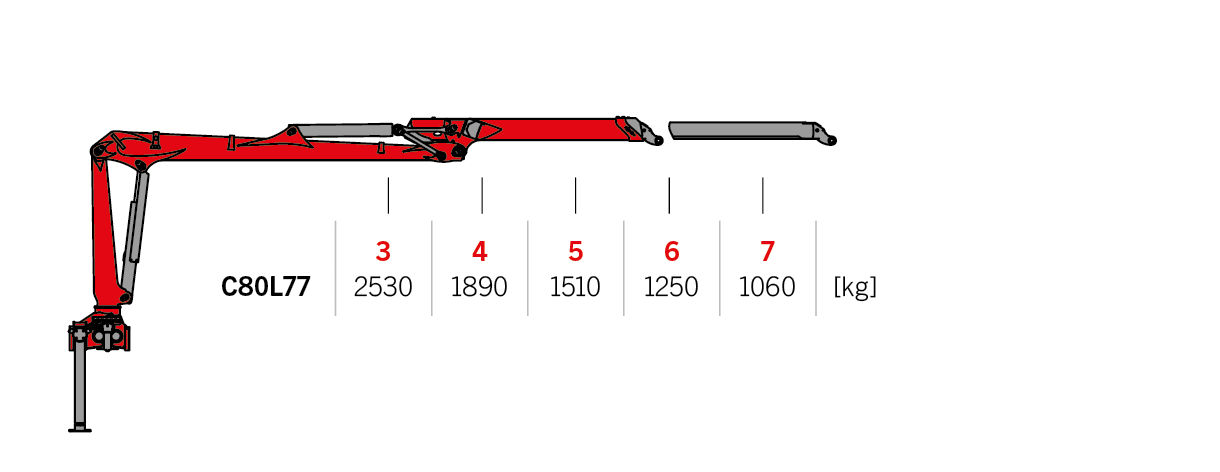

Diagrams

View
alt text

View
alt text

Protected hydraulic routing

Epslink and Epscope combine to deliver unmatched performance.

Protected hydraulic guide

EPSLINK

Epslink is EPSILON’s patented link-rotator combination. It features an extraordinarily robust four-eye-cast link with internal hose routing – and combines with Epscope to provide a practical, professional solution.

alt text

EPSCOPE

Epscope is EPSILON’s patented extension boom system, available in both single and double telescope variants. The extension cylinder and hose equipment are mounted internally, which allows operators to work safely without the risk of mechanical damage to key components.

alt text
alt text

KTL, finite element modeling, and functional design

Innovative technology for long-lasting surface protection, durability testing, and optimized functionality.

KTL + Finite Elemente + Functional Design

Cathodic dip coating (KTL)

This specialist surface treatment lays the foundations for long-lasting surface protection. PALFINGER’s Marburg and Lengau production facilities feature fully automated cathodic dip coating lines.

This treatment starts by degreasing and rinsing components before activating them, applying a zinc phosphate coating and then rinsing again. This is followed by passivation and a final rinsing step with ultra-pure water before the components undergo cathodic dip coating. Sophisticated robotic systems then finalize the process.

alt text

Finite element method

At EPSILON, we apply the finite element method to optimize our crane construction processes. We have deployed this state-of-the-art modeling technique for several years to refine all supporting elements made from fine-grain steel.

alt text

Functional Design

We develop every shape and detail based on function and practical application. Our designs follow a clear technical logic that ensures efficient, intuitive operation and high performance. This approach combines technical precision with a clean, functional aesthetic.
alt text

Equipment & Accessories

SG204

With a volume of 200 l, a maximum load of 2,000 kg, and an operating pressure of 32 MPa, the SG204 delivers reliable performance at a dead weight of 270 kg.
alt text

Technical Specifications

Technical Data

Telescopic boom length

Number of extensions

Net load moment [kNm]

Net slewing torque [kNm]

Slewing angle [°]

Max. reach [m]

Operating pressure [bar]

Max. pump capacity. 1K [l/min]

Max. pump capacity. 2K [l/min]
77 dm 1 76 kNm 20 kNm 425 ° 7.7 m 220 bar 1x70 2x60
76 dm 75 kNm 20 kNm 425 ° 7.6 m 220 bar 1x70 2x60
94 dm 2 74 kNm 20 kNm 425 ° 9.4 m 220 bar 1x70 2x60
Dead weight without joint/rotator

Telescopic boom length [dm]

Incl. Standard top/side seat

Incl. remote control (RCE)
77 dm 1,820 kg 1,820 kg
76 dm 1,710 kg 1,710 kg
94 dm 1,780 kg 1,780 kg

Discover Standard Features

Epscope

Internally routed hoses and an integrated telescopic cylinder permit safe working without the risk of damage from external sources.

alt text
Epslink

This high-strength four-lug link with rotator and optimized hose routing is suitable for EPSILON polyp grabs and clamshell grabbers.

alt text
Cathodic Dip Coating (CDC)

An innovative technology for long-lasting surface protection.

alt text
Complete CE Compliance

We develop and manufacture every crane in full compliance with CE standards, which ensures the highest safety, reliability, and performance standards across all applications.

alt text
Finite Element Technology

At EPSILON, we apply the finite element method to optimize our crane construction processes. We have deployed this state-of-the-art modeling technique for several years to refine all supporting elements made from fine-grain steel.

alt text

Control Methods

alt text
Top seat mounting and control options

Standard top seat

The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH).

Top seat mounting and control options

The Standard top seat can be mounted behind the crane column with dual-circuit hydraulics. In this version, the directly articulated controls comprise two joysticks and two pedals, while the adjustable seat features armrests and a seat contact switch.

alt text

The Standard top seat can be mounted behind the crane column with linear levers. In this version, the directly articulated controls comprise either four linear levers and two pedals, or five linear levers and one pedal. The adjustable seat features armrests and a seat contact switch.

alt text

Side seat HKR-HKL

Right-side/left-side top seat: - Two joysticks and two pedals - Single and dual circuits available

alt text

Side seat HLR/HLL

Right-side/left-side top seat: - four linear levers and two pedals or - five linear levers and one pedal - Hydraulic stabilisation from top seat - Single circuit as standard

alt text
Remote Control

Remote Control (RCE)

Simple, high-precision controls with a clear view of the load.

Remote Control

Our Remote Control solution features Danfoss PVG32 proportional control valves, installed in a Scanreco handset with feedback. This solution includes Paltronic 50 control electronics, with all crane functions and stabilization systems controllable via remote control.

alt text
