Rotating - Slider

CC80RS

Slider with Rotator

alt text
Container Delivery Unit (CDU)
Key Specs
Imperial
Metric
Sliding Distance
914.4 mm 36"
Rotating Capacity
3628 kg. 8000 lb

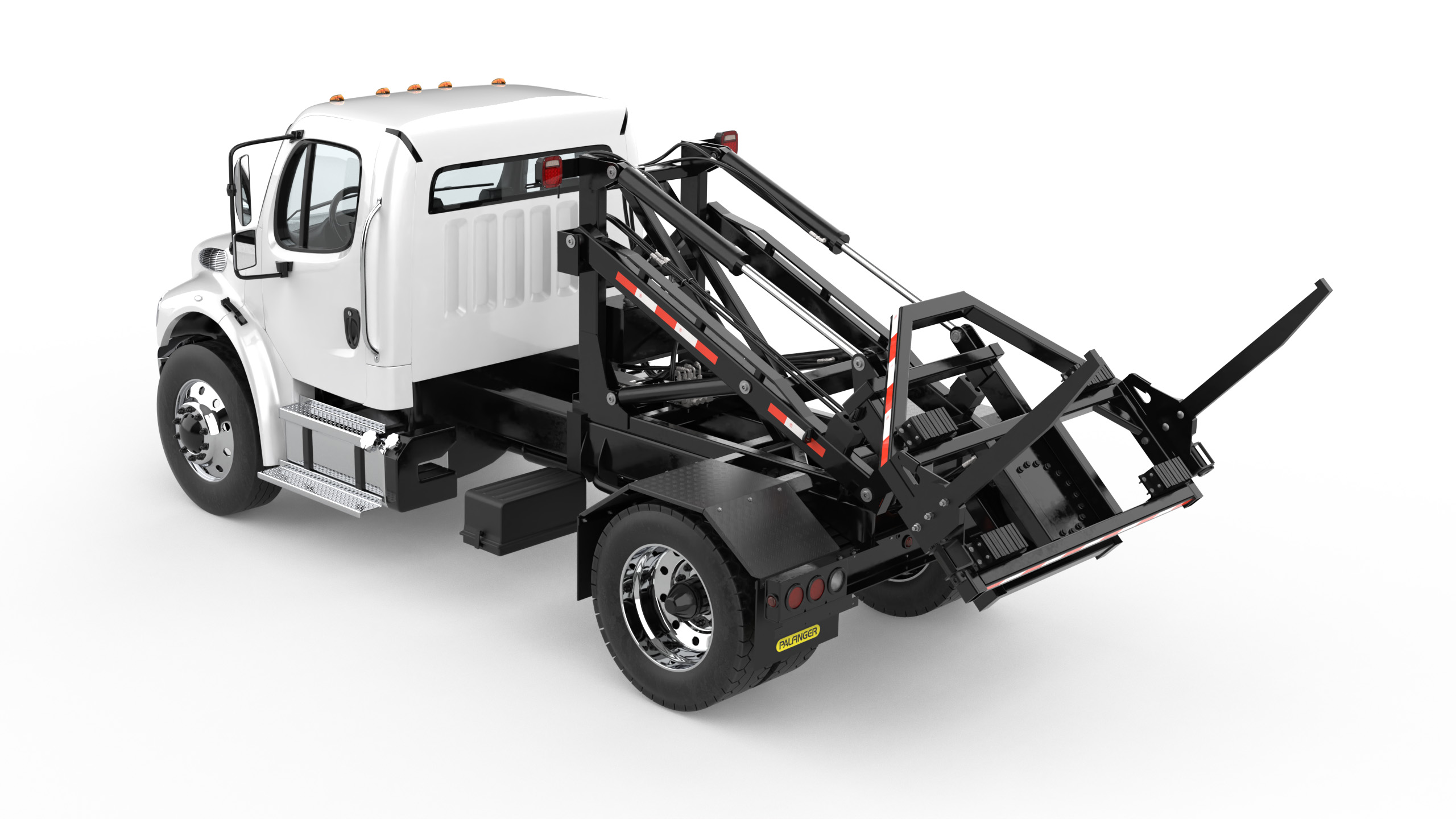

Boost efficiency with the CR80RS container delivery unit—your reliable solution for heavy-duty jobs. Frame-mounted rollers ensure smooth sliding, while 360° rotation adds unmatched versatility. Options include 62" forks and inside air controls for ultimate convenience and safety.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

360° Continuous Rotation for Total Control

Unload with ease using 360° continuous rotation in both directions. This feature boosts efficiency, enhances safety, and adds convenience—rotating at the same capacity the CDU can lift. Perfect for positioning containers or rotating units for quick, hassle-free repairs.

alt text

Strong, Simple Design for Maximum Durability

Engineered by PALFINGER for strength and reliability, our container delivery units feature a robust, raising-frame design built with solid components. This simple yet powerful structure ensures long-lasting performance and superior durability for heavy-duty applications.

alt text

Safer Transport with Smart Sliding Design

Our sliding option improves container transport safety by reducing weight on the front axle for greater stability on the road. Add sliding components to CDU models for enhanced reliability and smoother handling—making every job safer and more efficient.

alt text

Flexible Transport for Any Job Site

Solve container transport challenges with the CDU’s versatility. Move containers individually or load multiple units on a flat-deck trailer for job site delivery. In-cab two-function cable controls ensure safe, easy operation, while bolt-on forks make replacements quick and cost-effective.

alt text

Technical Specifications

alt text
Technical data U.S. Units
Lifting Capacity
8,000 lb
Rotating capacity (360° bi-rotational)
8000 lb
Weight (approx.)
3,500 lb
Sliding Distance
36"
Forks (heat treated - bolt on)
1-1/2" x 48"
Control valve
4 spools
Operating pressure
3,000 psi
Hydraulic tank
10 gal.
Lift cylinders
3-1/2"
Tilt Cylinders
4"
Optimum C/A
108"
Recommended GVWR
24,000 lb
Container sizes
2-10 cu. yd.
Shipping Weight
3,500 lb
Technical data metric
Lifting Capacity
3,628 kg
Rotating capacity (360° bi-rotational)
3628 kg.
Weight (approx.)
1,587 kg
Sliding Distance
914.4 mm
Forks (heat treated - bolt on)
1-1/2" x 48"
Control valve
4 spools
Operating pressure
3,000 psi
Hydraulic tank
37.8 l
Lift cylinders
3-1/2"
Tilt Cylinders
4"
Optimum C/A
108"
Recommended GVWR
24,000 lbs
Container sizes
2-10 cu. yd.
Shipping Weight
1,587 kg

Discover Standard Features

Twin Lock

The twin lock feature on our container delivery units ensures maximum security and stability during transport and placement. Designed for heavy-duty applications, it delivers safe, efficient, and reliable performance every time—giving operators confidence and control on the job.

alt text
Inside Controls

Operate with ease and safety using inside controls on our container delivery units. Designed for convenience, this feature keeps operators in control from the cab—boosting efficiency, reducing downtime, and ensuring smooth, precise handling for every heavy-duty job.

alt text
Twin Lifting Cylinders

Our container delivery units feature twin lifting cylinders for unmatched strength and balance. This design ensures smooth, stable lifting of heavy loads, reducing stress on components and boosting efficiency. Engineered for reliability, it delivers consistent performance on every job.

alt text

Optional Features

52" Forks

Upgrade your container delivery unit with 52" forks for superior strength and reach. Designed for heavy-duty applications, these forks provide secure handling and precise control, making every lift safer and more efficient. Perfect for demanding jobs where reliability matters most.

78" Forks

Upgrade your container delivery unit with 78" forks for maximum strength and extended reach. Built for heavy-duty applications, these forks ensure secure handling and precise control, making every lift safer and more efficient—perfect for demanding jobs where reliability matters most.

64" Forks

Upgrade your container delivery unit with 64" forks for maximum strength and extended reach. Built for heavy-duty jobs, these forks ensure secure handling and precise control, making every lift safer and more efficient—perfect for demanding applications where reliability matters most.
