40-90m

P 900

Unmatched Working Height

alt text
alt text
Aerial Work Platform
Key Specs
Working Height
90 m
Basket Load
700 kg
Side Reach
32,3 m

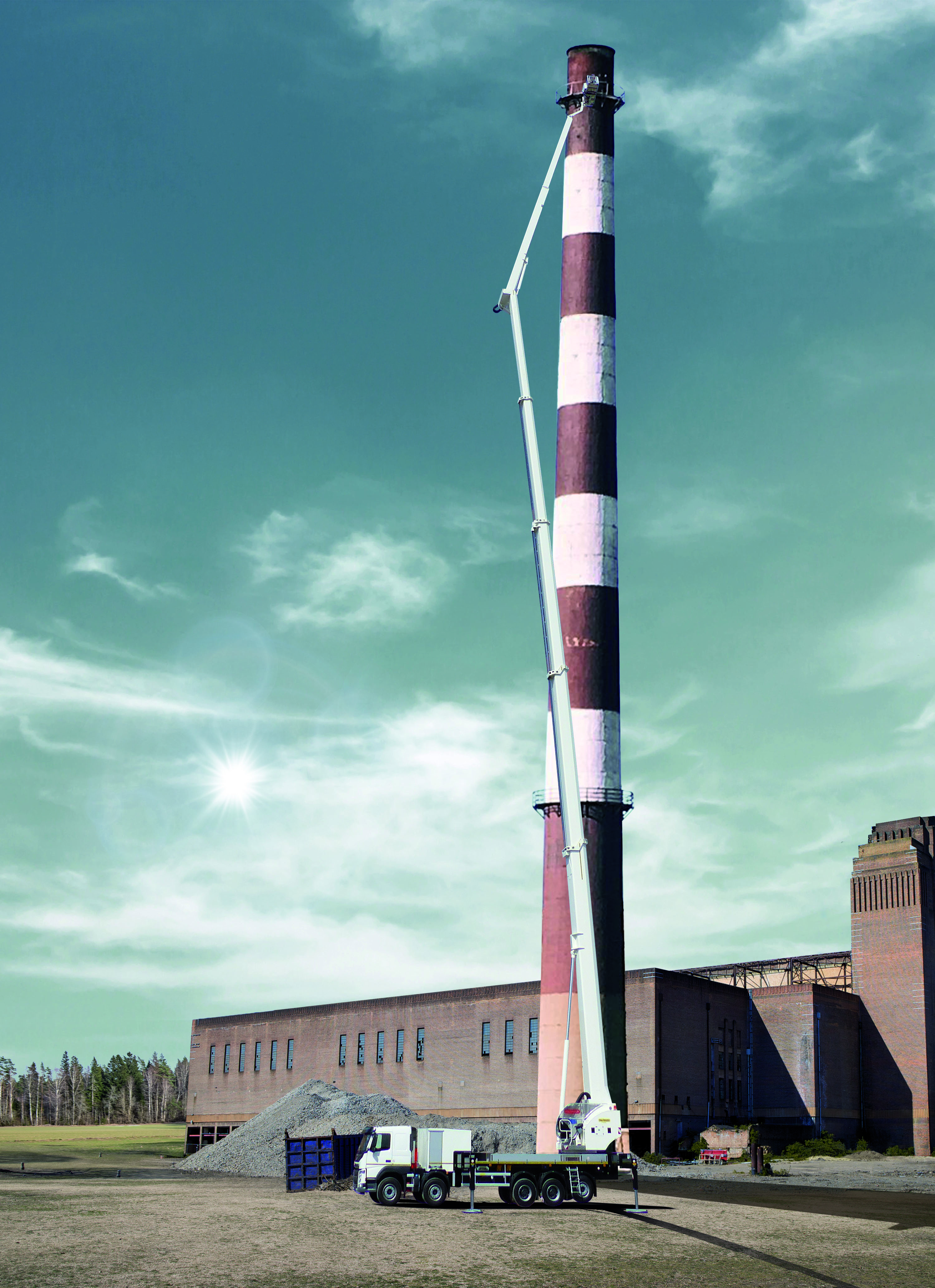

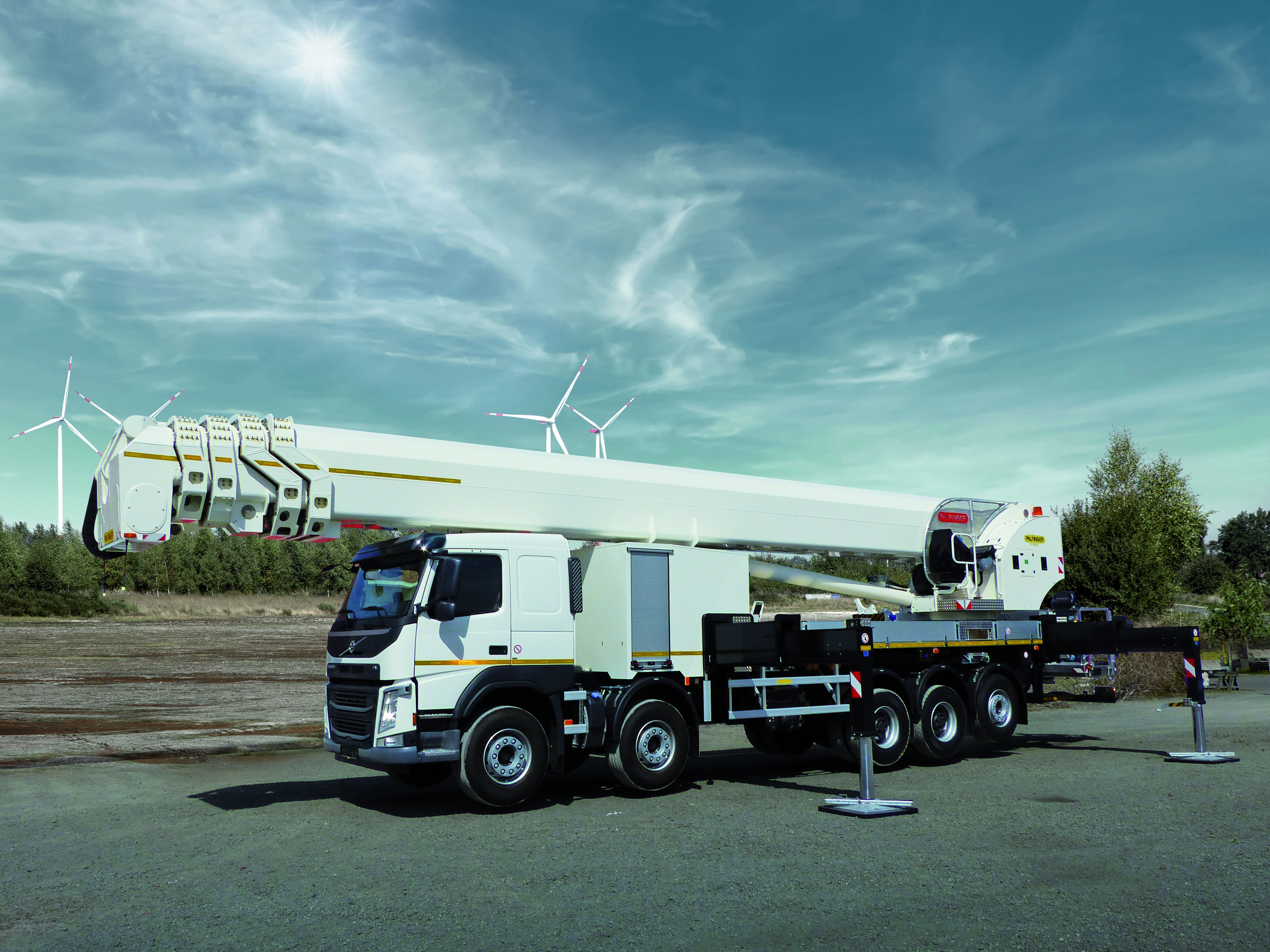

This flagship aerial work platform is designed for great performance at great height, with a maximum working height of 90 m. Featuring a vertical boom, convenient dual‑side controls and generous storage, the P 900 ensures speed, safety and stability on every job.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Diagrams

View
alt text

View
alt text

Control, Safety, And Full Visibility

The secondary control point on the turntable allows operators to work with confidence. With a seat and a color display, these controls give operators complete command over all platform movements and a perfect view of the boom system. The Gravity Powered Drive (GPD) ensures a smooth descent even with the engine off, providing maximum operational safety.

alt text

Reliable performance in strong winds

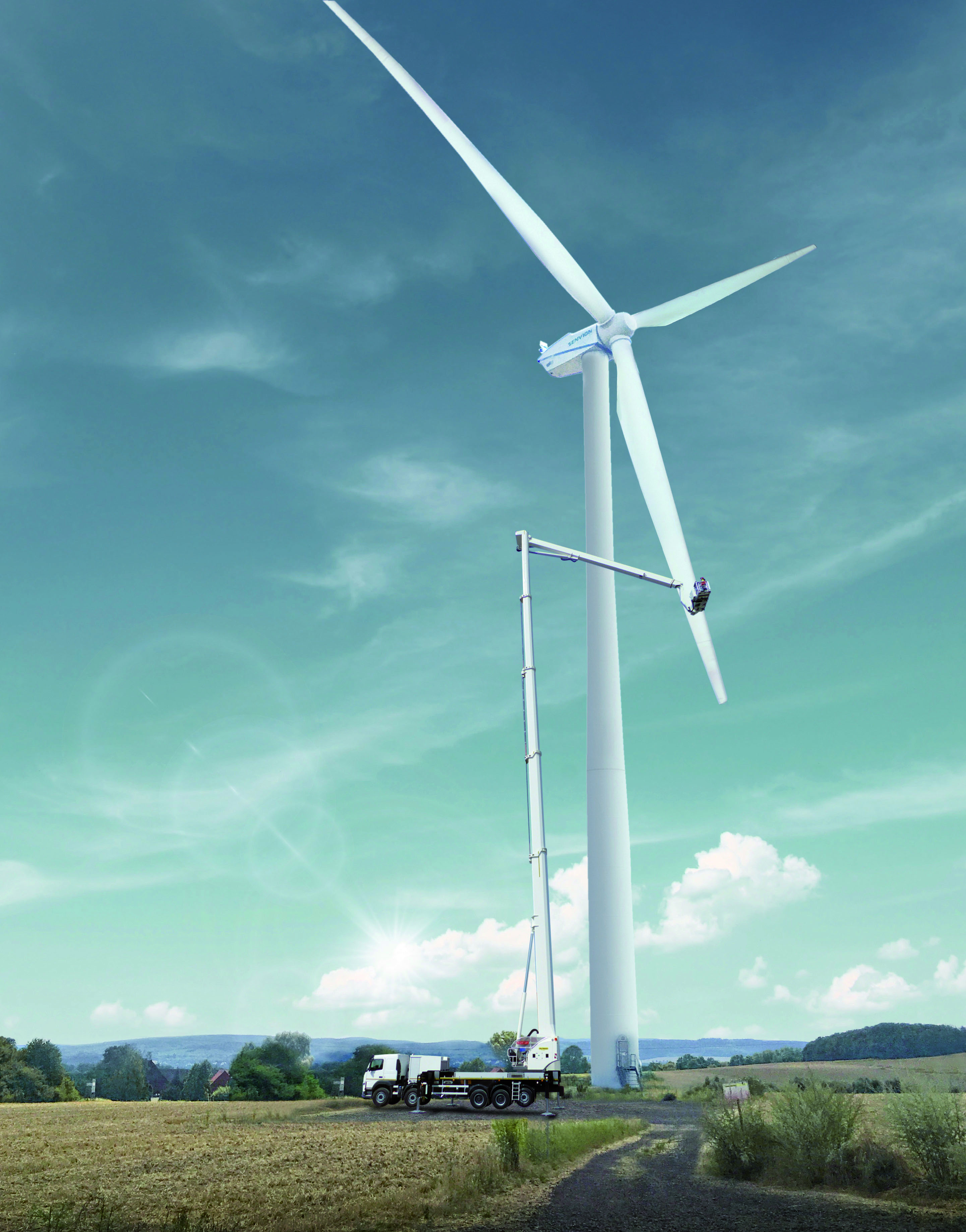

The Wind Speed 7 upgrade enables safe and reliable operation, even in demanding weather conditions. This upgrade allows the P900 to work safely in winds of up to 15.5 m/s, expanding its working range and setting new standards for stability.

alt text

Smart design, more space and stability

An integrated hydraulic tank in the base frame keeps the center of gravity low, ensuring superior stability and safer on‑road driving. Extra‑large storage compartments and illuminated tool boxes in the loading area provide ample space and easy access to all necessary work equipment.

alt text

Ultrasound anti-collision system

The ultrasound anti-collision system enhances work site safety. Operators can set the system's effective distance – from 0.35 m to 2 m – to receive audio and visual collision warnings, while the “auto stop” function provides maximum peace of mind when maneuvering on site.

Highlights

A Well-Oiled Machine

The automatic telescope lubrication system keeps the lower arms of the telescopic boom sufficiently oiled during operation. This reduces downtime and increases the longevity of the respective parts.
alt text

Equipment & Accessories

Even Greater Basket Capacity

The optional Powerlift system boosts lifting capacity, allowing you to lift up to 300 kg of large, bulky materials.

Technical Specifications

alt text
Technical data
Max. height of work
90 m
Max. basket floor height
88 m
Max. horizontal outreach /with basket load
32,3 m
Slewing range of basket
2 x 84°
Hydraulic jib boom, working range
180°
Max. stabilizer spread
8 m
Max. basket load
700 kg
Workman basket - breadth / length / height
2.15/3.45 x 0.95 x 1.15 m
Telescopic basket (when jib boom is not extended)
530 kg
Heavy-duty basket (when jib boom is not extended)
700 kg

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Chassis

Discover Standard Features

Leveling Made Simple

Save time and ensure peak performance on work platforms with automatic leveling.

Convenient Stabilizer System

Achieve stability fast with just the touch of a button thanks to PALFINGER's automatic support leveling feature.

Perfect Protection

The KTL coating provides optimal, long-lasting surface protection. This surface treatment process offers excellent corrosion protection for the whole life of a platform, maintaining performance and helping to retain value.

One Button Folding

Fold the aerial work platform quickly and easily with the PALFINGER Home function.
