40-90m

P 480

High-Level Precision

alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
Aerial Work Platform
Key Specs
Working Height
48 m
Basket Load
600 kg
Side Reach
28 m

This aerial work platform is a real all-rounder, suitable for a variety of applications. The P 480 combines innovative technology and a weight-optimised design to provide unparalleled flexibility on the job.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Diagrams

View
alt text

View
alt text

Precise work, extensive reach

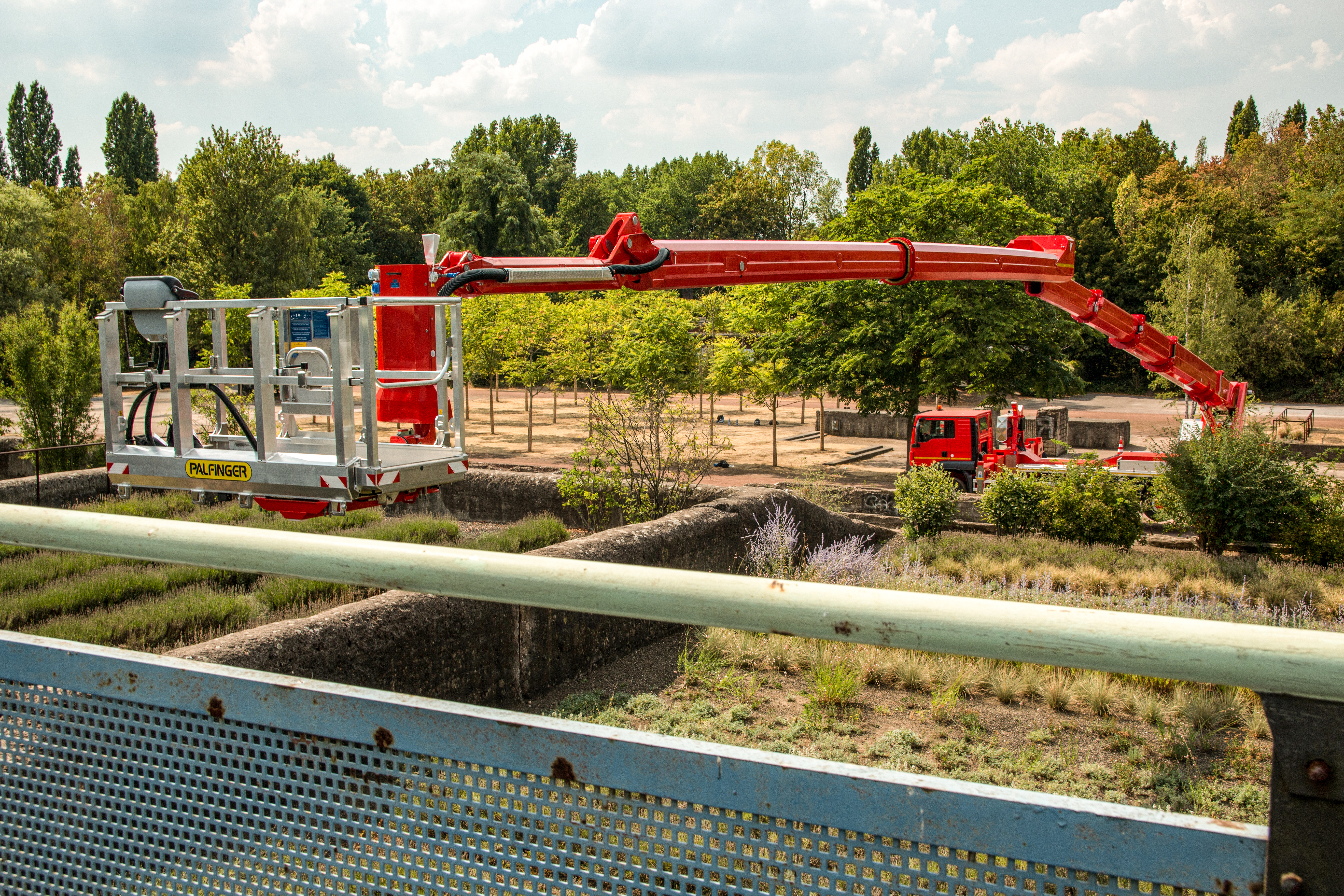

The P 480 features an impressive 240° X‑jib and dual 200° basket rotation, ensuring outstanding flexibility, perfect positioning, and a wider working range. Combined with the telescopic upper boom that extends up to 17 m, this platform provides exceptional maneuverability and reach for precise, efficient work at height.

alt text

High flexibility and maximum performance

High flexibility and maximum performance characterize the aerial work platforms in this category. This series is designed with special profile structures and lightweight materials, ensuring a low dead weight. This allows the vehicle to transport more tools, work accessories, and materials. The signature X-Jib provides full flexibility, while the 2 x 200° work basket rotation utilizes the full basket width of 3.88 m – together, this makes even hard-to-reach work sites easily accessible.

High flexibility and maximum performance characterize the aerial work platforms in this category. This series is designed with special profile structures and lightweight materials, ensuring a low dead weight. This allows the vehicle to transport more tools, work accessories, and materials. The signature X-Jib provides full flexibility, while the 2 x 200° work basket rotation utilizes the full basket width of 3.88 m – together, this makes even hard-to-reach work sites easily accessible.

Highlights

Telescopic Upper Boom

The X-jib together with the telescopic upper boom extend maximum reach up to 19 metres.
alt text

A Well-Oiled Machine

The automatic telescope lubrication system keeps the lower arms of the telescopic boom sufficiently oiled during operation. This reduces downtime and increases the longevity of the respective parts.
alt text

Equipment & Accessories

Even Greater Basket Capacity

The optional Powerlift system boosts lifting capacity, allowing you to lift up to 600 kg of large, bulky materials.
alt text

Radio Remote Control

With a light and compact design, our radio remote control offers operators maximum flexibility on the job and optimal control when operating access platforms and stablizers.

Cable Winch

A cable winch can be attached beneath the workman basket to provide 460 kg of lifting capacity.

Technical Specifications

alt text
Technical data
Max. height of work
48 m
Max. basket floor height
46 m
Max. horizontal outreach /with basket load
28 m
Slewing range of basket
2 x 200°
Max. basket load
600 kg
Workman basket - breadth / length / height
3.88 x 1.05 x 1.1 m
Rotation angle of turntable
540°
Height in transport position
3.93 m
Width in transport position
2.5 m
Overall length
9.9 m
Overall weight
17,600 kg

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Chassis

Available standard chassis:

MAN TGS 26.400 6x2-4 BL CH

Further chassis on request

Discover Standard Features

Leveling Made Simple

Save time and ensure peak performance on work platforms with automatic leveling.

Convenient Stabilizer System

Achieve stability fast with just the touch of a button thanks to PALFINGER's automatic support leveling feature.

Perfect Protection

The KTL coating provides optimal, long-lasting surface protection. This surface treatment process offers excellent corrosion protection for the whole life of a platform, maintaining performance and helping to retain value.

One Button Folding

Fold the aerial work platform quickly and easily with the PALFINGER Home function.

Optional Features

Counterweights

Extend the working range using optional counterweights
