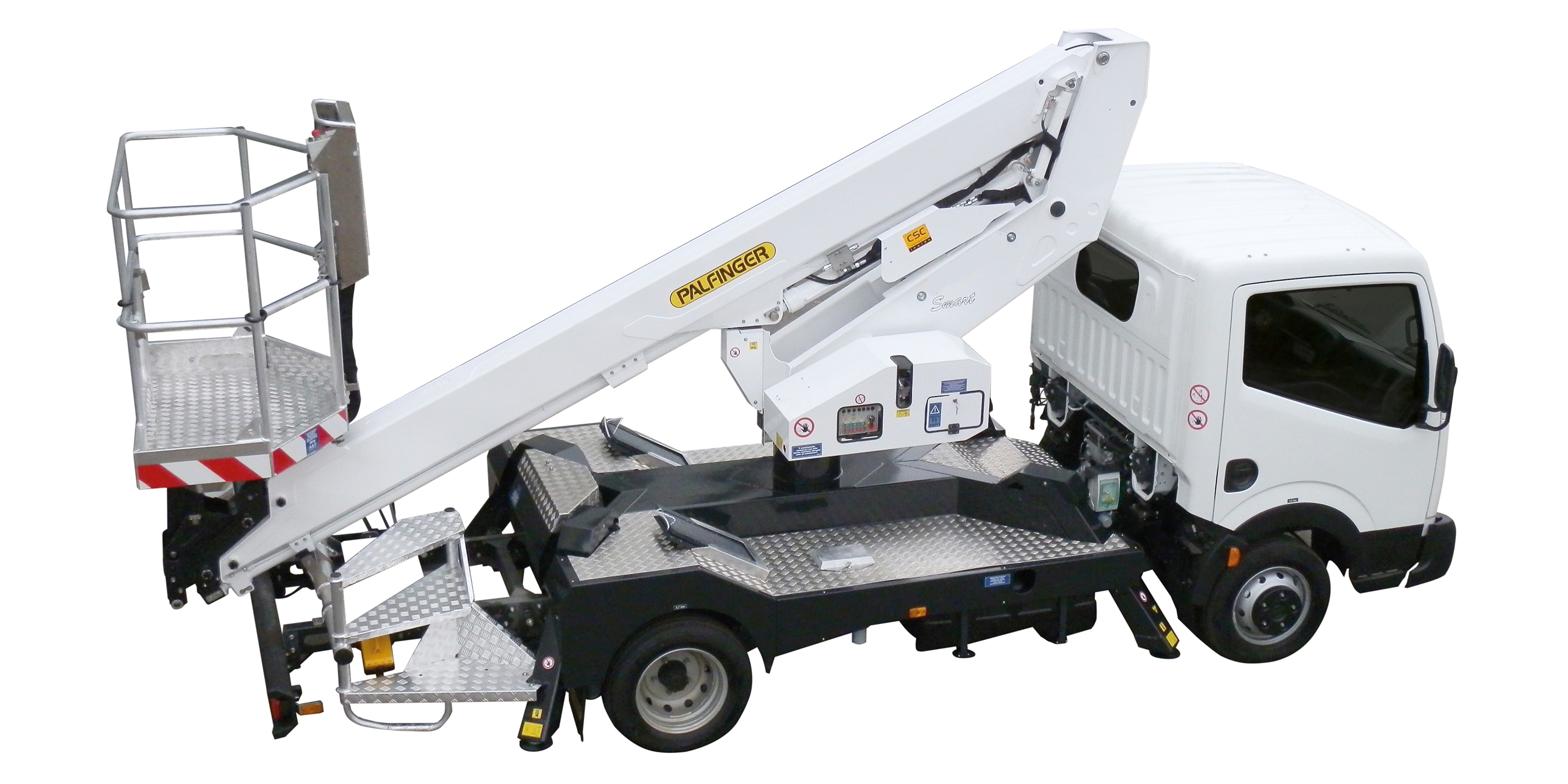

Aerial Work Platform
Key Specs
Working Height
17 m
Basket Load
230 kg
Side Reach
10.8

Safety and performance in all areas. Easy to use.

Find Sales Partner

Technical Specifications

Technical data
Max. height of work
17 m
Max. basket floor height
15 m
Max. horizontal outreach /with basket load
10.8
Slewing range of basket
2 x 90°
Max. basket load
230 kg
Workman basket - breadth / length / height
1.4 x 0.85 x 1.1 m
Height in transport position
2.89 m
Width in transport position
2.1 m
Overall length
6.1 m
Overall weight
3,200 kg

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Chassis
