Smart Class

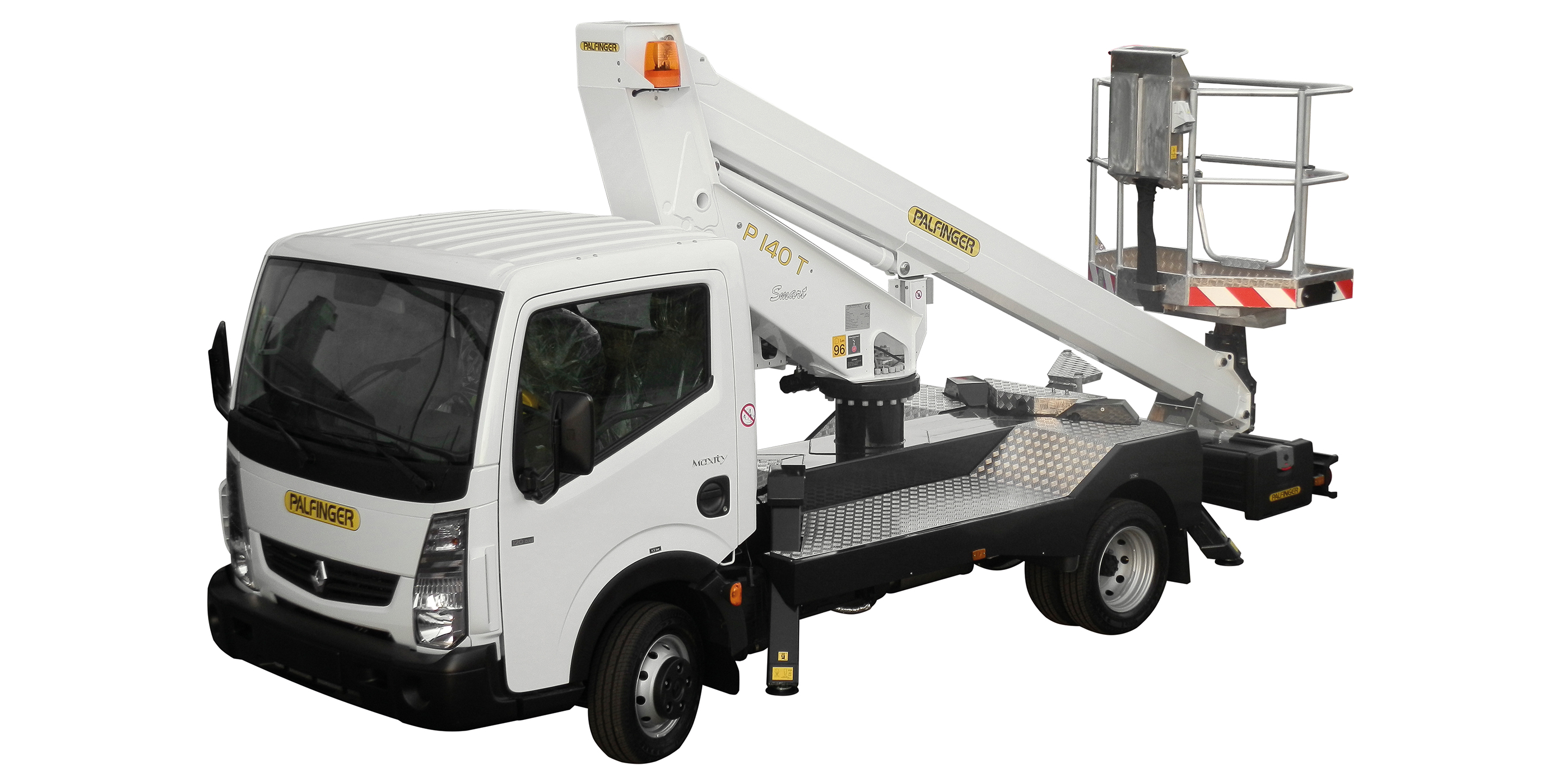

P 140 T

P 140 T

alt text
alt text
alt text
alt text
alt text
alt text
Aerial Work Platform
Key Specs
Working Height
13.5 m
Basket Load
230 kg
Side Reach
8.4

Fast and secure operation for all maintenance tasks at height –
without drawbacks

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Technical Specifications

Technical data
Max. height of work
13.5 m
Max. basket floor height
11.5 m
Max. horizontal outreach /with basket load
8.4
Slewing range of basket
2 x 90°
Max. basket load
230 kg
Workman basket - breadth / length / height
1.4 x 0.85 x 1.1 m
Height in transport position
2.89 m
Width in transport position
2.1 m
Overall length
6.05 m
Overall weight
3,200 kg

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
