Low Smart Class

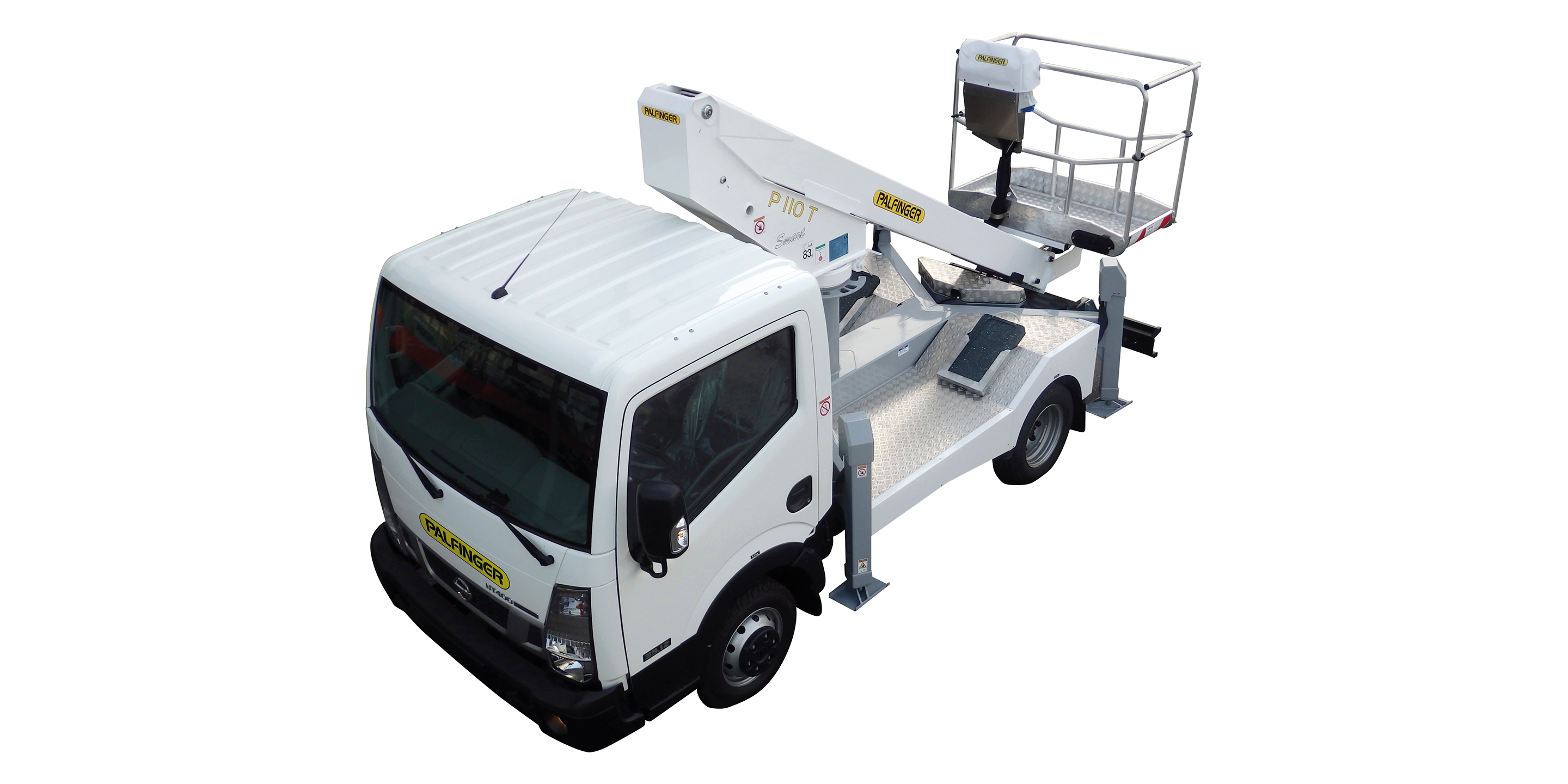

P 110 T

P 110 T

alt text
Aerial Work Platform
Key Specs
Working Height
11 m
Basket Load
250 kg
Side Reach
6,80 m

SMALL STABILISATION AREA REQUIRED, FOR JOBS THAT CAN BE CARRIED OUT QUICKLY AND SAFELY WHILE PARKED ON THE ROAD

  • Extremely compact footprint when stabilised, with outriggers located within the truck's outer edges
  • Compact structure, easy to use
  • Fast response
  • Ideal for urban areas where traffic is often congested
  • Fully hydraulic operation
  • Ergonomic design
  • Great versatility for use at height
  • Exceptional guide manoeuvrability
  • Workplace safety
  • PALFINGER professional quality
Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Technical Specifications

Technical data
Max. height of work
11 m
Max. basket floor height
9 m
Max. horizontal outreach /with basket load
6,80 m
Max. basket load
250 kg
Workman basket - breadth / length / height
1,4 x 0,7 x 1,1 m
Angle of main boom
-30° + 60°
Rotation angle of turntable
280°
Height in transport position
2.67 m
Width in transport position
2.05 m
Length in transport position
5.3 m

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
