Cantilever
MBB PTC 750 L

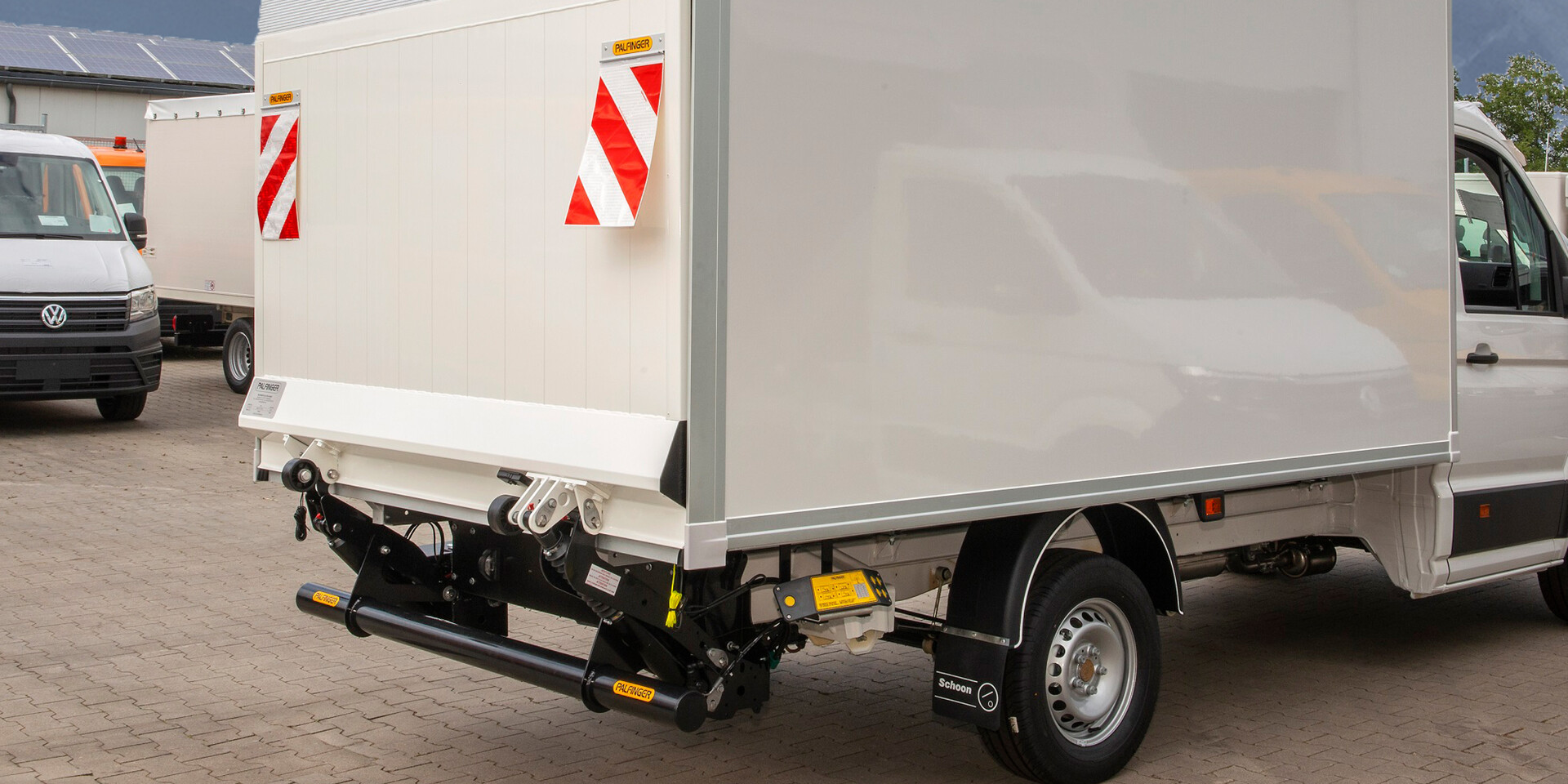

MBB PTC 750 L
Tail Lift
Außenseite
- Aluminium platform with wet-painted rearside, with or without tip (in a RAL colour)
- Aluminium platform anodised (up to 2000mm height)
Lifting gear standard
- Cylinders with protection bellows and tubes
- All steel components in KTL
- Vehicle specific mounting brackets
- Lifting gear powder-coated (in RAL9011 or NOVA grey)
- Lifting gear micro-galvanised 750er
- Provision for ball-head coupling installation MBB PTC 750 L / S & PTC 1000 LLW (incl. central support)
- Mechanical stabilisers, large, lose, pair
| Lifting capacity | 750 kg |
| Main beam | Beam box system |
| Lifting gear hydraulics | 1 lifting cylinder / 1 tilting cylinder |
| Platform overlap with floor | -57 mm |
| Lift arm pitch /Lift arm length | Depending on vehicle |
| Load centre - lengthwise | 600 mm |
| Load centre - across center | Central 50% of rated load on one side |
| Inclination angle of the platform | +90° to -10° |
| Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
|---|---|---|---|---|---|
| alu | 2100 | 1450 | - | ab 171 kg |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

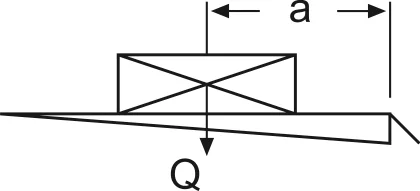

| a (mm) | Q (kg) |
| 600 | 750 |
| 700 | 650 |
| 820 | 550 |
| 1120 | 400 |

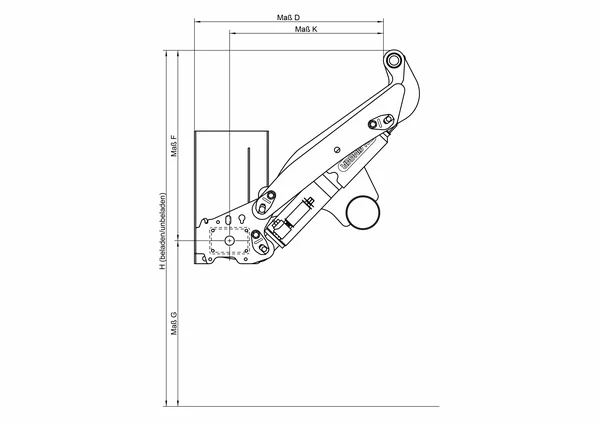

| Lifting arm lengths (mm) | 600 |
| H (max.) Loading height unloaded | 1074 |
| H (min.) Loading height loaded | 702 |
| F (max.) Middle of main beam to upper edge of loading floor | 584 |
| K (min.) at dimension F (max.) | 560 |
| D (min.) Installation space (min.) | 567 |
| F (min.) | 397 |
| K (max.) at dimension F (min.) | 585 |
| D (max.) Installation space max. | 708 |
| G (max.) Unloaded (middle of main beam to ground) | 490 |
| GG (min.) loaded | 305 |
