Cantilever
MBB C 1000 SPR/SPL

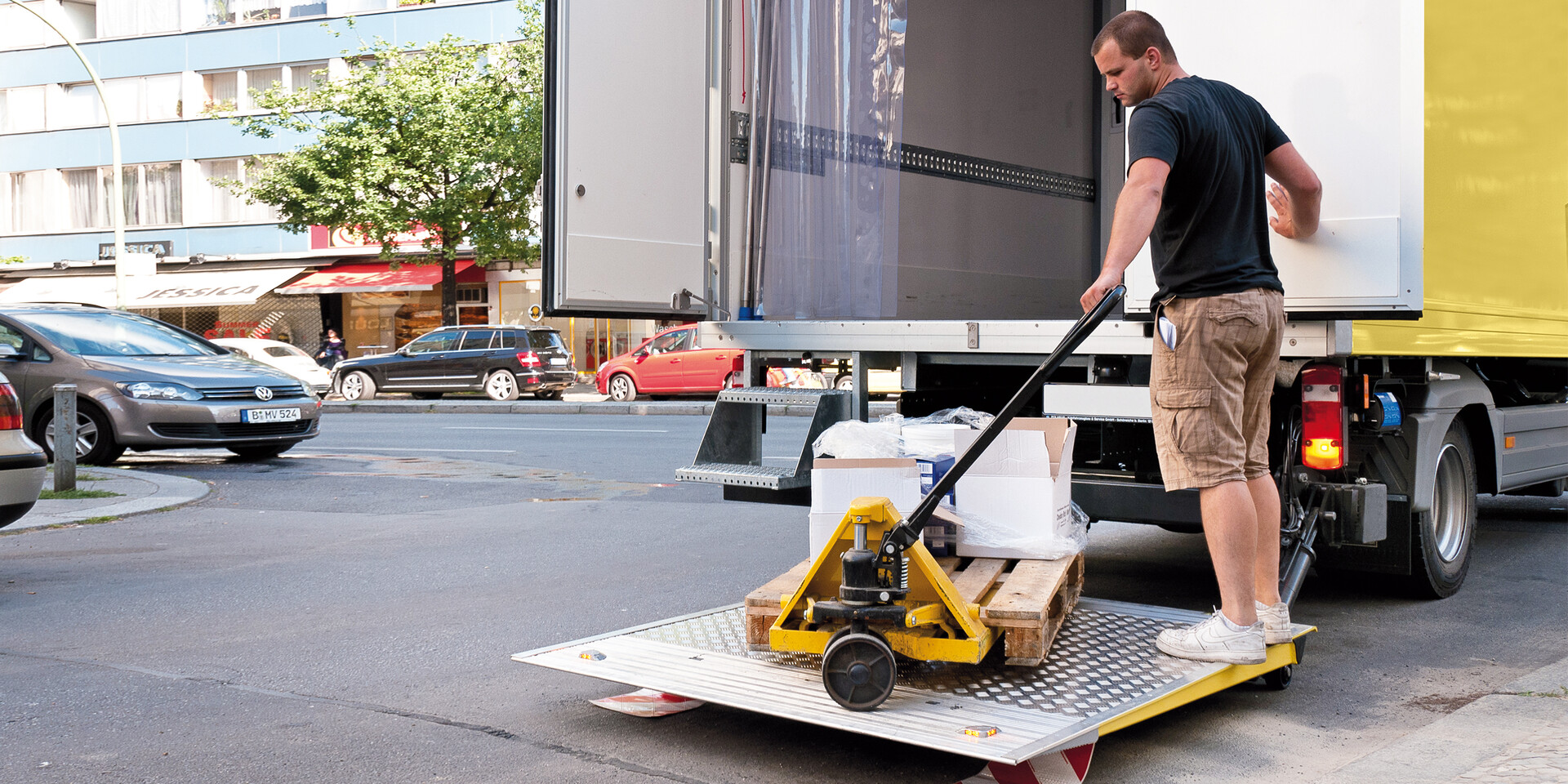

Tail Lift
MBB C 1000 SPR/SPL
Platform standard
- AluLite 30/40/40S - platform
- Ground rollers
- Warning flags red/white or black/yellow
- LED warning lights
- Protection bars for warning lights, pair
- Abrollsicherung
- Troughs, square, pair
Innenseite
- Increased anti-slip resistance R13 (for Aluminium platforms)
- Plastic coating for platforms (incl. coated roll-stops) per m²
Außenseite
- Steel platform with powder-coated rearside (in a RAL colour)
- Aluminium platform with wet-painted rearside, with or without tip (in a RAL colour)
- Aluminium platform anodised (up to 2000mm height)
- Horizontal folding Aluminium platform for cantilever lifts (max. width 2520mm)
Lifting gear standard
- Cylinders with protection bellows and tubes
- All steel components in KTL
- Mounting brackets
- Lifting gear powder-coated (in RAL9011 or NOVA grey)
- Lifting gear micro-galvanised 750er
- Bolt-on mounting brackets (not LZ/SZ models and MBB C 500 VAN to MBB PTC 750 S)
- Welded mounting brackets (please provide chassis dimensions)
- Hydr. Stabiliser, large, installed, pair (double-acting cylinders)
- Mechanical stabilisers, large, lose, pair
Operation standard
- Control box with self-closing cover and Z-bracket / EVERY ADDITIONAL CONTROL HAS TO BE SELECTED INDIVIDUALLY!
- 3+1 controls (instead of control box)
- 4-button control planel, slim, for internal installation (as further control device)
- 4-button control panel, box format for external installation (as further control device)
- Foot controls integrated in platform (as further control unit)
- 2-button wanderlead hand control w/o plug (as further control device)
- 3-button wanderlead hand control w/o plug (as further control device)
- Slim control panel basic (instead control box)
- Radio remote control RCBT (standard set) SN2050730
- Radio remote control Akerström
- Key switch or turning switch, lockable (not possible with MBB 3+1 and MBB 3+3+1 controls)
Electrics / Sensors standard
- 12V or 24V
- Drivers cab switch with indicator OR interface ETMA Code A (V-lifts only cab switch)
- Sensors b13 (lifting gear) and b15L (platform)
- Surcharge for plug-in sensor b15S platform (instead sensor b15L)
- Surcharge for sensor b15L lifting gear (instead sensor b13) = "2x b15"
- Development of a customised program for MBB Control
- ETMA Code A + B (including plus and minus cable 3,8m)
- Cable for box body light
Other options and accessories
- Safety gate, A-shape A1100, in RAL-color e.g. 1023, piece (not for AluLite)
- Safety gate, P-shape, in RAL-color e.g. 1023, piece, left or right (not for AluLite)
| Lifting capacity | 1000 kg |
| Main beam | 180 x 180 mm |
| Lifting gear hydraulics | 2 electrical lifting cylinder / 2 electrical tilting cylinder |
| Platform overlap with floor | - 57 mm |
| Lift arm pitch /Lift arm length | 410 mm |
| Load centre - lengthwise | 600 mm |
| Load centre - across center | Central 50% of rated load on one side |
| Inclination angle of the platform | +90° to -10° |
| Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
|---|---|---|---|---|---|
| alu | 1000 | 1450 | 317 | - | |
| alu | 1000 | 1550 | 319 | - | |
| alu | 1000 | 1600 | 320 | - | |
| alu | 1000 | 1825 | 324 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| a (mm) | Q (kg) |
| 600 | 500 |
| 700 | 430 |
| 820 | 360 |
| 1120 | 260 |
| Lift arms (in mm) | 900 |
| H (max.) Loading height unloaded | 1554 |
| H (min.) Loading height loaded | 1225 |
| F (max.) Middle of main beam to upper edge of loading floor | 924 |
| K (min.) at dimension F (max.) | 655 |
| D (min.) Installation space (min.) | 846 |
| D (max.) Installation space (max.) | 921 |
| F (min.) | 860 |
| K (max.) at dimension F (min.) | 730 |
| G (max.) Unloaded (middle of main beam to ground) | - |
| G (min.) loaded | - |
| E (max.) Vehicle frame width (max.) | - |
| E (min.) Vehicle frame width (min.) | - |
