Loader Crane

PK 23.001L TEC 3

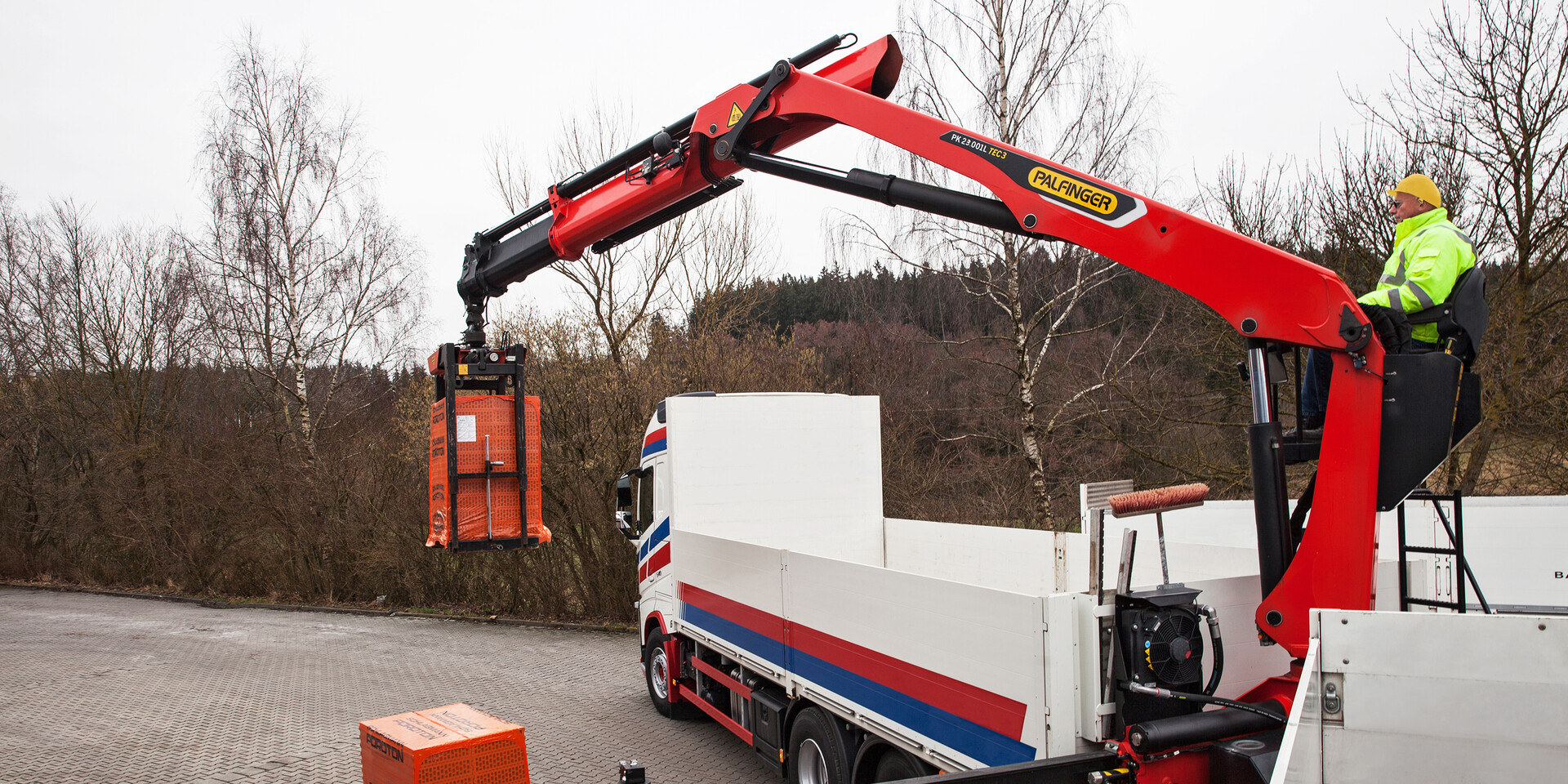

High outreach and high operating speed ensure efficient handling of construction material

  • Maximum radius of action thanks to slewing angle of 440 degrees
  • Optimized lubrication of the slewing mechanism thanks to an oil bath right up to the head bearing
  • Avoiding damage of the hydraulic hoses and compact set-up dimensions thanks to the new internal hose guiding system
  • Excellent visibility and high operator comfort thanks to new top seat with new joystick control



Downloads Technical Data

Internal hose routing system through the column

Avoiding damage of the hydraulic hoses as well as compact set-up dimensions are possible thanks to the internal hose routing system.

Loading height in close range

Thanks to the very good loading height in close range, the crane can move pallets over the entire loading area.

Details

Slewing Mechanism in Oil Bath

Optimized lubrication of the slewing mechanism thanks to an oil bath right up to the head bearing.

Slewing angle

The slewing angle of 440 degrees enables the maximum radius of action.

High Stand or Top Seat

The high stand is presented with numerous detailed improvements - compete in line with the design and configurations used by PALFINGER. It complies with the crane standard EN 12999: 2011 and is available alternatively for front and rear mounting. As another alternative, the top seat offers excellent visability for the operator as well as highest comfort.

Details

P-Profile

The polygonal or drop-shaped P-Profile is especially rigid and simultaneously light weight design perfection. Thanks to self-lubricating materials, the extension boom system is low in maintenance.

Details
Special

Experience the product features

HPSC

PRODUCT FEATURES

The High Performance Stability Control (HPSC) is a fully proportional system for monitoring the stability of the crane vehicle. Sensors for proportional path measurement in the stabilizer supports permit completely variable support positioning. Hence, the permissible, safe working range can be calculated for any support situation.

HOW IT WORKS

The HPSC system calculates the permissible working range for any slewing angle of the boom system and for any support situation. The position of the stabilizer support is detected by means of a cable extension transducer or magnetostrictive position sensor. Based on the intelligent calculation algorithm developed by PALFINGER, it works more efficiently than comparable systems that are available in the market.

* Optional feature/country-specific-equipment

Max. lifting moment 22.9 mt
Max. lifting capacity 5650 kg
Max. hydraulic outreach 16.3 m
Slewing angle 440°
Slewing torque with 1 gear 2.7 mt
Stabilizer spread (std) 6.6 m
Max. operating pressure 340 bar
Recommended pump capacity
Top seat RSQ240 		50 - 70 l/min
Recommended pump capacity
Top seat RSQ240 LS		 65 - 90 l/min
Recommended pump capacity
Top seat PVG32 Radio		 85 - 110 l/min
Dead weight (std) 2700 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Lifting moment
(mt) 		Outreach
(m) 		Slewing angle
(°) 		Slewing torque
(mt) 		Pressure
(MPa) 		Pump capacity
(l/min) 		Crane Weight
(kg) 		Crane Height
(mm) 		Crane Width
(mm) 		Installation With
(mm)
A 22.2 11.1 440 2.7 34.0 50-110 2700 2430 2550 -
B 21.6 13.7 440 2.7 34.0 50-110 2865 2430 2550 -
C 21.0 16.3 440 2.7 34.0 50-110 3020 2430 2550 -

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.

Downloads

Brochures

L Crane Range

15,92 MB Download
