⩾ 32 t GVW
POWER HP 24 A (R)
- Go back
- Home
- Products
- Hookloader and Skiploader
- Models
- POWER HP 24 A (R)

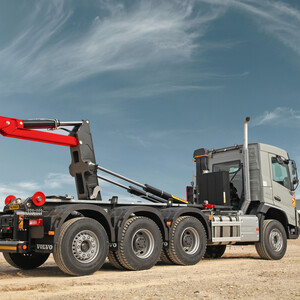

POWER
Hooklift
It can be installed on chassis of 32 t and more GVW, covering all the jobs that require powerful and robust equipment: in agriculture, construction, off-road and several other application areas.
Thanks to its articulated arm, the Power A reduces the loading angle and thus the risk of spillage. It also optimizes the positioning of short or long boxes on the truck, ensuring good weight distribution and load stability.
ADVANTAGES of the POWER category
- Lifting capacity remains the same for any frame height
- Robust design for tough applications
- Pit loading
- Minimal maintenance and reduced wearing
HP 24 A
Unit length (mm) | Container max. length (mm) | Container min. length (mm) | Transport height | Weight (kg) | Tipping angle (°) |
---|---|---|---|---|---|
5000 | 6000 | 4000 | 280 | 2550 | 46 |
5000 | 6000 | 4000 | 280 | 2550 | 46 |
5200 | 6200 | 4200 | 280 | 2600 | 49 |
5300 | 6400 | 4250 | 280 | 2650 | 49 |
5450 | 6600 | 4500 | 280 | 2700 | 47 |
5600 | 6800 | 4500 | 280 | 2750 | 45 |
5750 | 7000 | 4750 | 280 | 2800 | 47 |
5950 | 7200 | 5000 | 280 | 2800 | 47 |
6100 | 7400 | 5000 | 280 | 2850 | 45 |
6250 | 7600 | 5250 | 280 | 2850 | 44 |
6450 | 7800 | 5500 | 280 | 2900 | 44 |
6650 | 8000 | 5500 | 280 | 2900 | 44 |
HP 24 AR
Unit length (mm) | Container max. length (mm) | Container min. length (mm) | Transport height | Weight (kg) | Tipping angle (°) |
---|---|---|---|---|---|
5000 | 6200 | 4000 | 300 | 2800 | 44 |
5200 | 6400 | 4200 | 300 | 2850 | 47 |
5300 | 6400 | 4400 | 300 | 2900 | 47 |
5450 | 6600 | 4400 | 300 | 2950 | 47 |
5600 | 6800 | 4600 | 300 | 3000 | 45 |
5750 | 7000 | 4800 | 300 | 3050 | 47 |
5950 | 7200 | 5000 | 300 | 3050 | 47 |
6100 | 7400 | 5200 | 300 | 3100 | 45 |
6250 | 7600 | 5200 | 300 | 3100 | 44 |
6450 | 7800 | 5400 | 300 | 3150 | 44 |
6650 | 7800 | 5600 | 300 | 3150 | 44 |
TEC CONFIGURATION
CUTTING EDGE OPTIONS
Downloads
Brochures
