Timber handling demands maximum performance. EPSILON timber cranes feature robust design, finely tuned controls, and an array of unique solutions designed to make work easier and more efficient. For decades, PALFINGER EPSILON has set the standard in timber crane technology.
Our Timber Crane Series
All models
?ts=1772096739288&dpr=off)
Smart Control
Actual highlight of Generation 3Thanks to Smart Control, operators no longer need to use different levers to control each cylinder individually. Instead, in this straightforward and intuitive system, they control the crane tip alone – and our sophisticated software does the rest. This technology has proven itself over years of service. It combines three crane functions (main boom, knuckle boom, and telescopic boom) in a single joystick to ensure smooth and precise crane movement.
?ts=1772096739366&dpr=off)
?ts=1772096739378&dpr=off)
Our Timber Crane Segments
Timber haulage
Tight schedules, heavy loads, and challenging conditions mean that timber haulage is a never-ending test of efficiency and endurance. Operators need fast loading cycles without any loss of control, stable handling even when dealing with long timber, and equipment that performs well when subjected to rain, cold, dirt and vibrations. Downtime is expensive – but there’s no room to compromise on safety.
EPSILON provides the right crane solutions for timber haulage with strong, durable designs and precise control for smooth, confident loading. Our systems are built for high-cycle work, reliable daily operation, and consistently high performance – helping customers reduce loading time, protect equipment, and keep cranes running at optimum.
?ts=1772096739459&dpr=off)

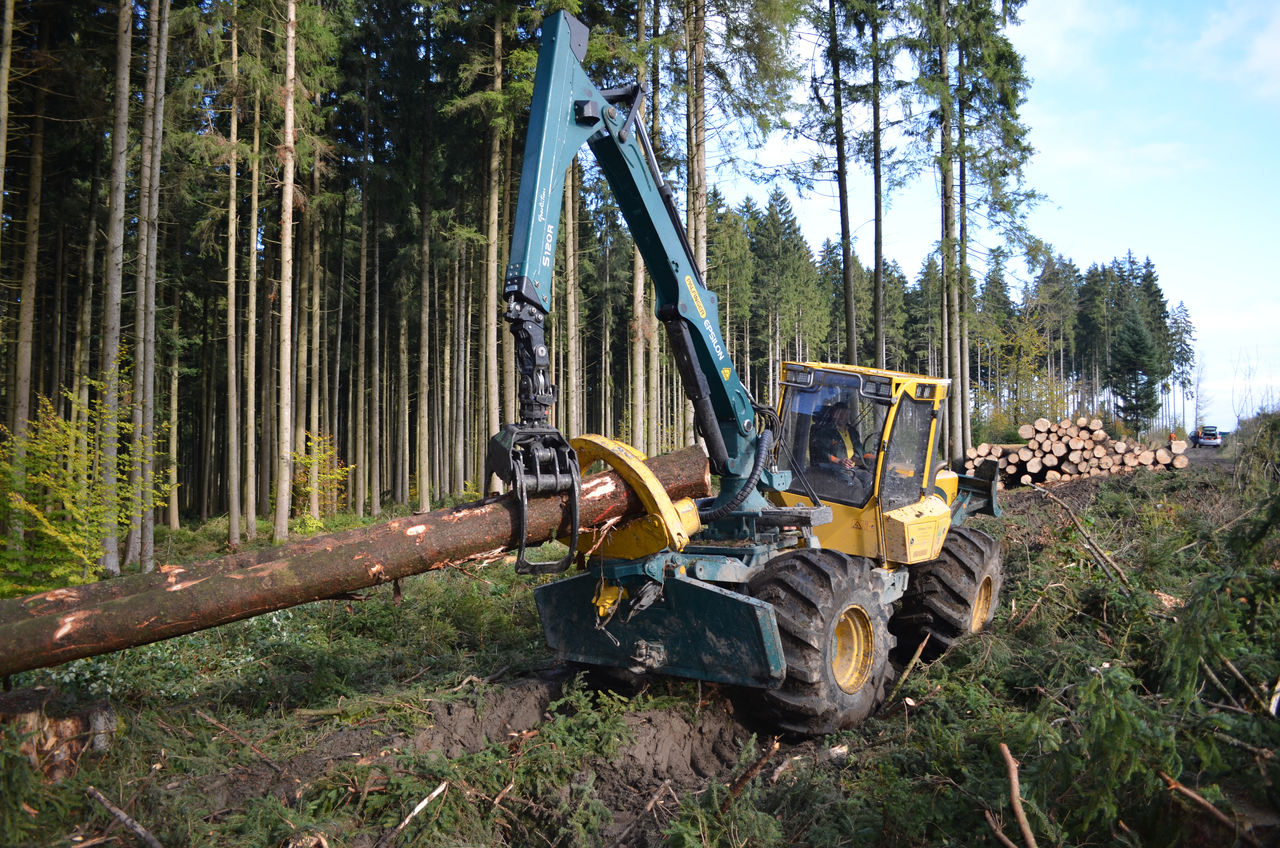

Timber harvesting
Steep terrain, unstable ground, and changing weather conditions ensure that every turn presents a unique challenge. Loads can vary significantly, visibility is often limited, and machinery is forced to contend with sudden impacts, mud, and cold starts. But despite this, operators rely on precise control to work safely and keep productivity high.
EPSILON supports timber harvesting with its tough offroad crane solutions built for demanding forestry jobs. Offering impressive lifting power, robust components, and smooth, responsive control, they enable operators to handle timber efficiently, even in difficult conditions – reducing machine stress while enhancing safety and maximizing uptime.

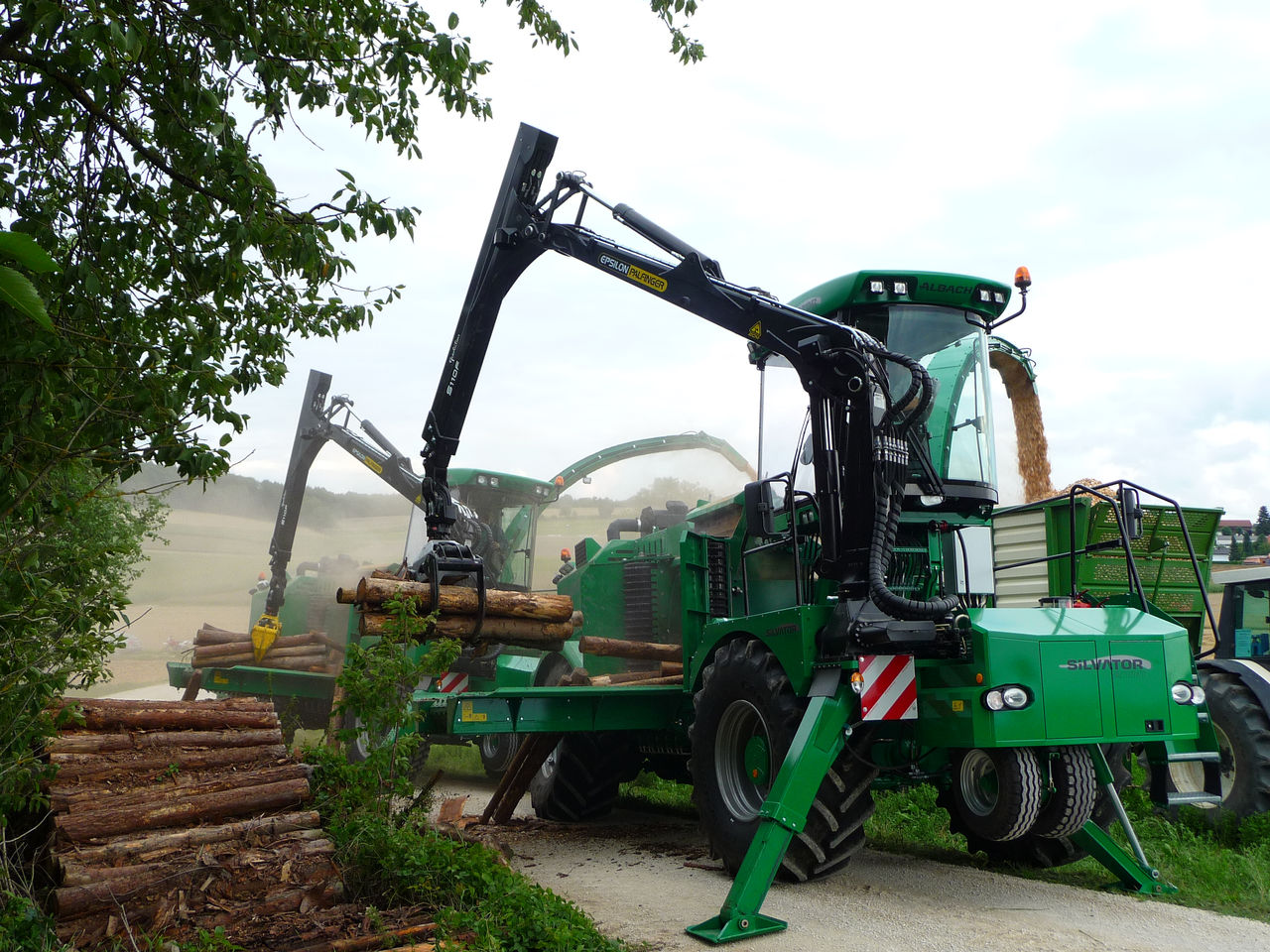

Timber processing
High throughput, repetitive cycles, and tight yards demand speed and accuracy in equal measure. Materials must be effectively sorted and securely stacked, movements must be easily repeatable – and any downtime brings the entire workflow to a halt. At the same time, dust, continuous operation, and heavy-duty grabbing operations exacerbate machine wear.
EPSILON’s crane solutions for timber processing combine precise handling with reliable performance, even in continuous duty. Their robust geometry, controlled movements, and durable construction facilitate fast cycles and clean stacking, helping customers increase throughput and keep operations running smoothly.
Gardening and landscaping
Jobs are constantly changing, space is often at a premium, and work takes place close to people, buildings, and finished surfaces. Loads can be bulky, fragile, or awkward, meaning that operators rely on smooth crane movements to place materials safely and accurately. Machinery must therefore be versatile, easy to operate, and suitable for daily use.
EPSILON offers crane solutions for garden and landscaping, focusing on controlled handling and flexible operation. Precise control and reliable lifting performance help customers to position materials accurately, work safely in confined areas, and complete jobs faster with reduced need for rework.
See Our Timber Cranes In Action
The Right Grab For Every Timber Handling Task
Equipment
Short timber grab (light)
FG27
With a gripping area of 0.26 m², a maximum load of 4,000 kg, and an operating pressure of 25 MPa, the FG27 delivers reliable performance at a dead weight of just 170 kg.
Equipment
Short timber grab (light)
FG37
With a gripping area of 0.36 m², a maximum load of 4,000 kg, and an operating pressure of 25 MPa, the FG37 delivers reliable performance at a dead weight of just 180 kg.
Equipment
Short timber grab
FG43
With a gripping area of 0.40 m², a maximum load of 5,000 kg, and an operating pressure of 23 MPa, the FG43 delivers reliable performance at a dead weight of just 225 kg.
Equipment
Reinforced short timber grab
FG43S
With a gripping area of 0.40 m², a maximum load of 6,000 kg, and an operating pressure of 24 MPa, the FG43S delivers reliable performance at a dead weight of just 260 kg.
Equipment
Short timber grab
FG53
With a gripping area of 0.50 m², a maximum load of 5,000 kg, and an operating pressure of 23 MPa, the FG53 delivers reliable performance at a dead weight of just 235 kg.
Equipment
Reinforced short timber grab with an optimized V-shape
FG53S-V
With a gripping area of 0.50 m², a maximum load of 6,000 kg, and an operating pressure of 24 MPa, the FG53S-V delivers reliable performance at a dead weight of just 270 kg.
Equipment
FG57X
With a gripping area of 0.50 m², a maximum load of 9,000 kg, and an operating pressure of 27 MPa, the FG57X delivers reliable performance at a dead weight of just 320 kg.
Equipment
Brush wood grab
FG27R
With a gripping area of 0.26 m², a maximum load of 4,000 kg, and an operating pressure of 25 MPa, the FG27R delivers reliable performance at a dead weight of just 205 kg.
Equipment
FG31R
With a gripping area of 0.35 m², a maximum load of 4,000 kg, and an operating pressure of 25 MPa, the FG31R delivers reliable performance at a dead weight of just 200 kg.
No Surprises With PALFINGER Services
Maximum uptime with a service contract
Extend product lifespan, minimalize lifecycle costs and ensure maximum safety. PALFINGER service contracts are tailored to your needs.
A reliable partner just around the corner
Our global service network ensures efficient and fast services. Put your trust in employees who are trained in your product and know exactly what they have to do.
