Jumbo Class NX
Working Height 48 M
Basket Load 600 KG
Side Reach 28 m

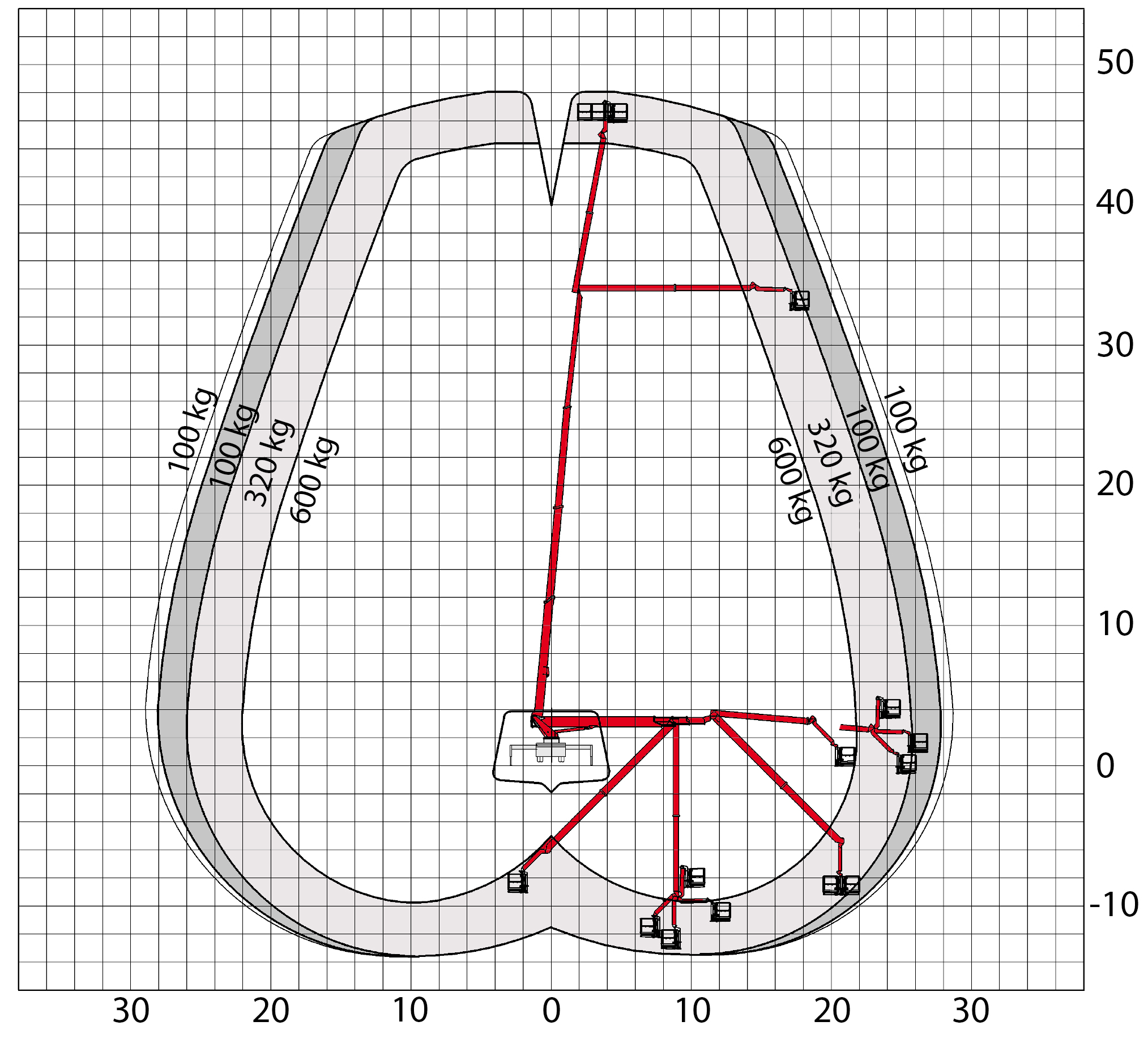

|Max. height of work||48 m|
|Max. basket floor height||46 m|

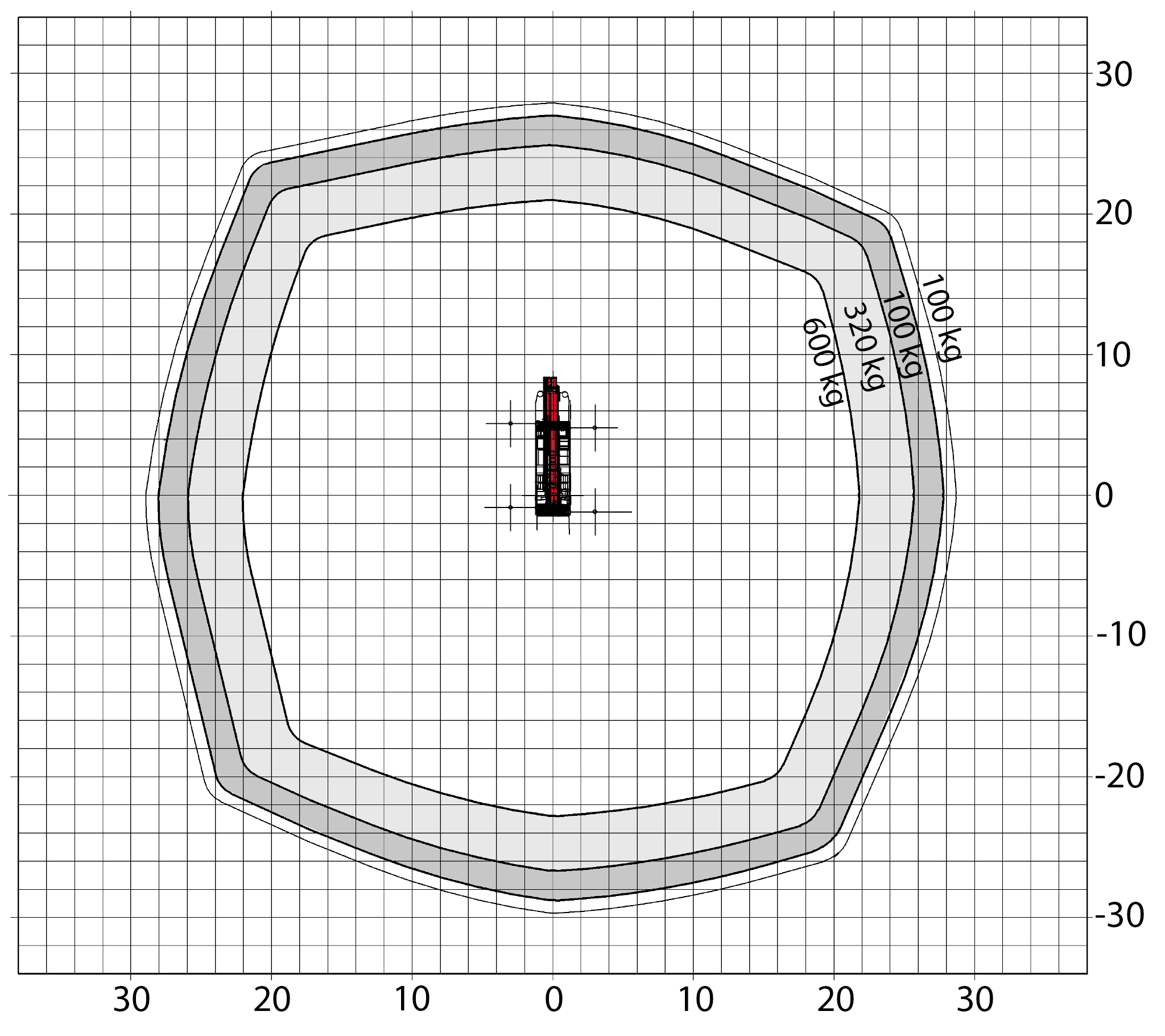

|Max. horizontal outreach /with basket load||28 m|
|Slewing range of basket||2 x 200°|
|max. basket load||600 kg|
|Workman basket - breadth / length / height||3.88 x 1.05 x 1.1 m|
|Rotation angle of turntable||540°|
|Height in transport position||3.93 m|
|Width in transport position||2.50 m|
|Overall length||9.9 m|
|Overall weight||17600 kg|
*above mentioned values are standard values and vary depending on options and chassis
Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
