Service Cranes

Imperial Metric
Max Lifting Moment 60,180 ft lbs
Max Lifting Capacity 12600
Max Hydraulic Outreach 32' 6"
Technical Data

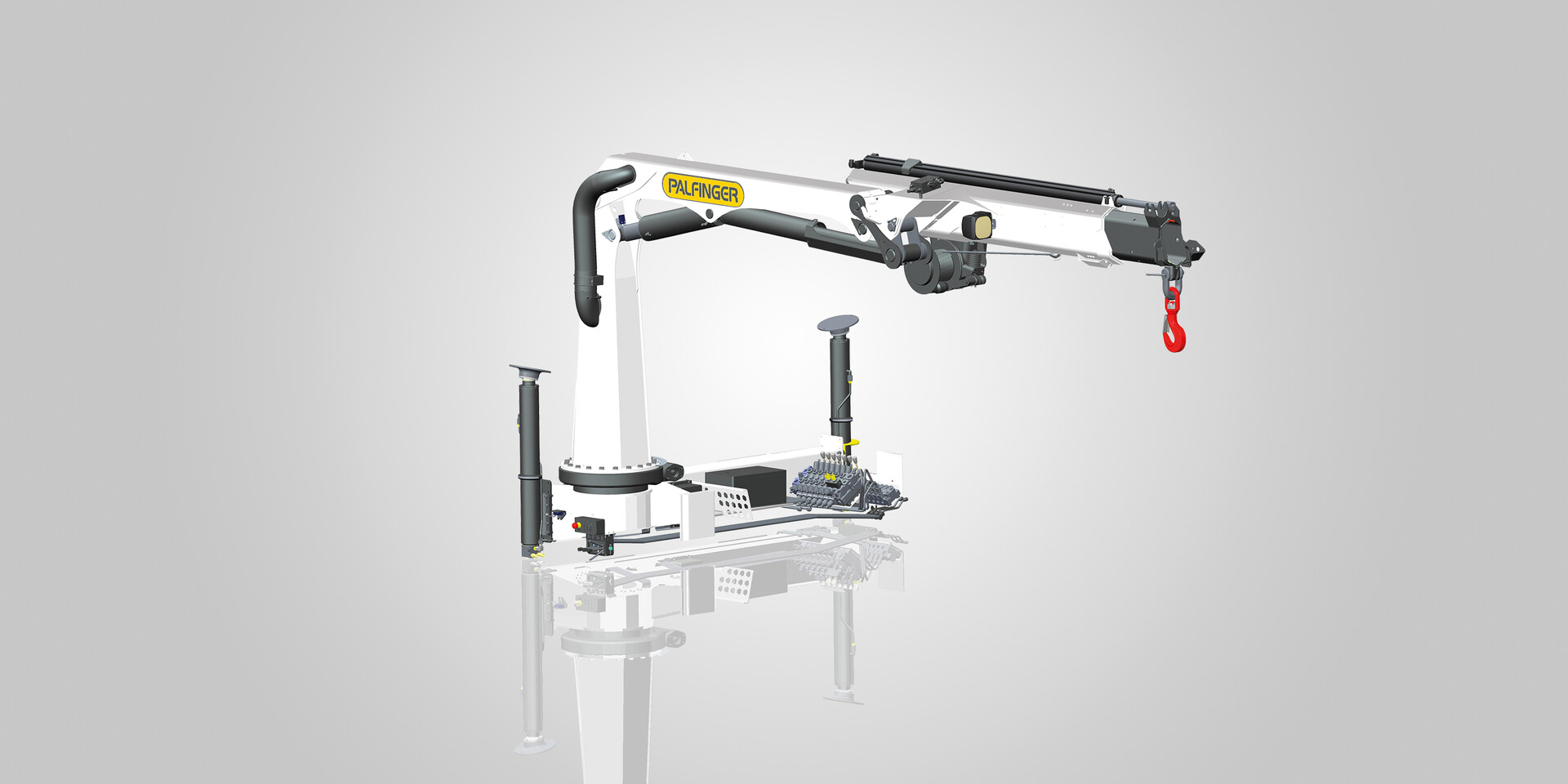

PALFINGER-built Corner Mount Cranes offer unique benefits by optimizing the mounting footprint of telescopic service cranes and combining the operational advances of knuckle boom crane technology.  On the job, users can expect increased power-to-weight ratios with high lifting capacities and low dead weight.  Additionally, the compact installation footprint is ideal for new or replacement installations.
Downloads
Max. lifting moment 60180.0 ft lbs
Max. lifting capacity 12600
Max. hydraulic outreach 32' 6"
Slewing angle 390
Stabilizer spread (std) 13'
Pump capacity 6.6 - 9.2 US gpm
Dead weight (std) 2425 lbs
Lifting moment
(ft_lbs) 		Outreach Slewing angle
(°) 		Slewing torque
(ft_lbs) 		Pressure
(psi) 		Pump capacity
(gpm) 		Crane Weight
(lbs) 		Crane Height
(inch) 		Crane Width
(inch) 		Installation Width
(inch)
STD 60051.0 N/A 390 7230 4640.0 6.6 - 9.2 2425 - - -
A 58604.0 N/A 390 7230 4640.0 6.6 - 9.2 2645 - - -
B 56433.0 N/A 390 7230 4640.0 6.6 - 9.2 2865 - - -
