Knuckle Boom

PK 92002-SH High Performance

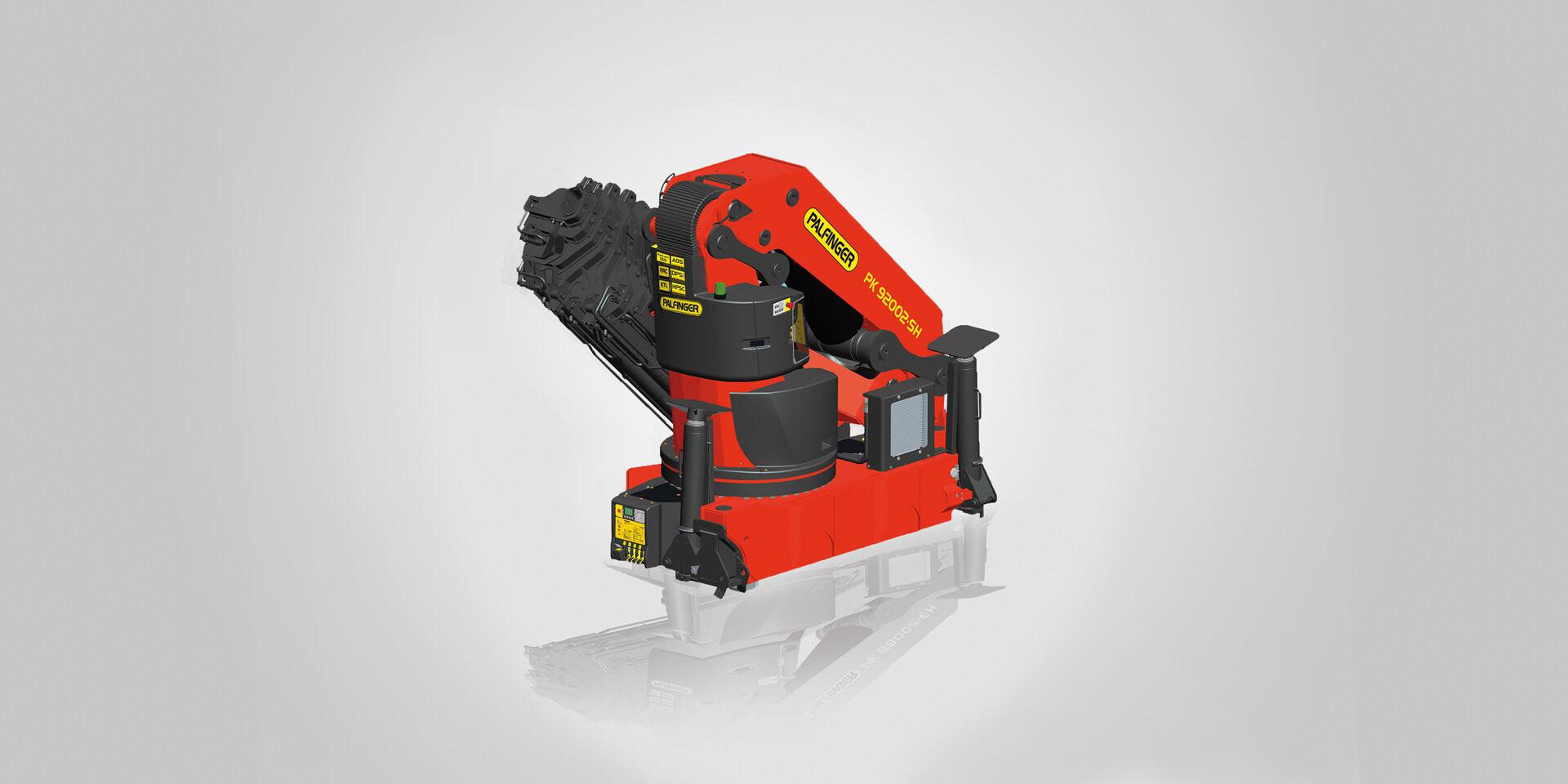

Knuckle Boom Crane

PK 92002-SH High Performance
Imperial Metric
Max Lifting Moment 613,528 ft lbs
Max Lifting Capacity 66138.7 lbs.
Max Hydraulic Outreach 73' 10"

Copes with heavy-duty assignments just as easily as with delicate installations

  • Maximum utilisation of the working rangue due to HPSC
  • More lifting power due to S-HPLS
  • High user friendliness due to radio remote control
  • Perfect appearance and the highest value retention due to coating technology
  • More variety due to fly-jib

Continuous Slewing System

The PALFINGER Continuous Slewing Mechanism permits an unrestricted radius of action. The crane is rotated or 'slewed' using a gear box and hydraulic motor instead of a rack and pinion system. All endless slewing mechanisms come as standard with a high quality roller ball bearing.


Power Link Plus

The PALFINGER Power Link Plus system is a double linkage system with a linkage on the knuckle boom and a linkage between the main boom and crane column. With the 15 degree reverse linkage system, reaching through low door openings or working inside buildings is no problem.


High Power Lifting System

The PALFINGER High Power Lifting System (E-HPLS, A-HPLS or S-HPLS) increases the capacity of the crane by up to 15% while reducing working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. A-HPLS as well as S-HPLS are activated fully automatically. There is continuous activation depending on the power required.


Soft Stop

The Soft Stop function is an electronic limit position damper. It causes gentle braking of all crane movements before the limit position is reached. Hence, jerky movements and load impacts can be avoided. The crane can be operated more gently and precisely.
