Knuckle Boom

PK 46002 High Performance

Knuckle Boom Crane

Imperial Metric

Max Lifting Moment 312,460 ft lbs

Max Lifting Capacity 34200 lbs.

Max Hydraulic Outreach 68' 11"

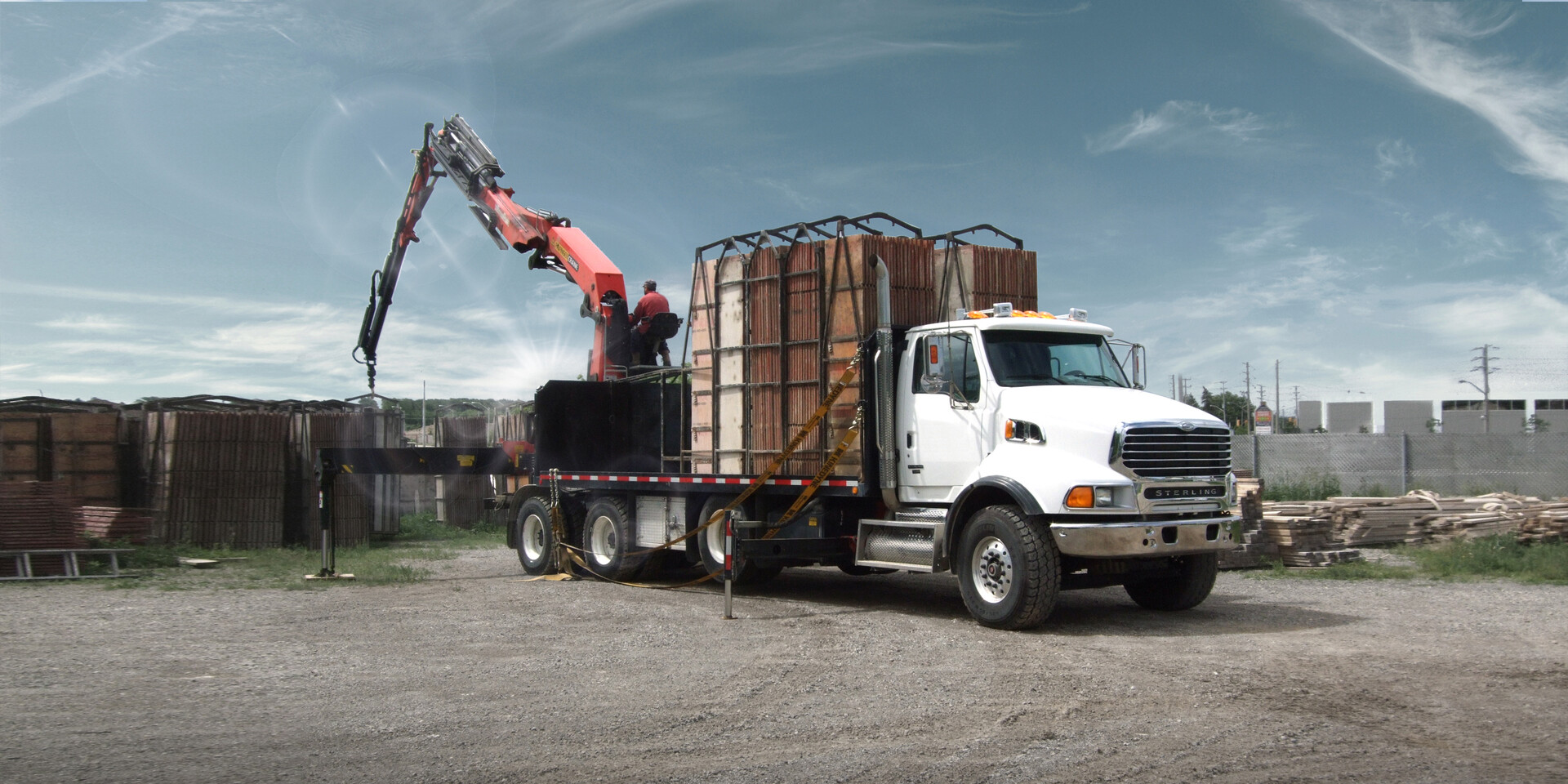

Equipped with the endless slewing system and double slewing drive, maintenance-free extension boom system, functional design elements and Power Link Plus, the PK 46002 is truly an ambassador of PALFINGER‘s leadership in technology. Designed exclusively for North America, this top seat controlled crane is the perfect crane for a 3-axle chassis, it has a wide spectrum of uses and is equally suited for concrete forming, assembly work, transport of containers, construction, and other heavy jobs.

Max. lifting moment	312460.0 ft lbs
Max. lifting capacity	34200 lbs.
Max. hydraulic outreach	68' 11"
Max. manual outreach	106' 8"
Slewing angle	∞
Slewing torque with 1 gear	39780.0 ft lbs
Stabilizer spread (std)	25' 7"
Max. operating pressure	4640 psi
Pump capacity	21.1 - 26.4 gpm
Dead weight (std)	9446 lbs

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Max. lifting capacity	15512.9 kg
Max. hydraulic outreach	21.0 m
Max. manual outreach	32.5 m
Slewing angle	∞
Pump capacity	80 - 100 l/min
Dead weight (std)	4284.6 kg

	Lifting moment (ft_lbs)	Outreach	Slewing angle (°)	Slewing torque (ft_lbs)	Pressure (psi)	Pump capacity (gpm)	Crane Weight (lbs)	Crane Height (inch)	Crane Width (inch)	Installation Width (inch)
A	306041.0	-	∞	28930 / 39780	4640.0	21.1 - 26.4	9314	-	-	-
B	296635.0	-	∞	28930 / 39780	4640.0	21.1 - 26.4	9899	-	-	-
C	290847.0	-	∞	28930 / 39780	4640.0	21.1 - 26.4	10505	-	-	-
D	285783.0	-	∞	39780	4640.0	21.1 - 26.4	11199	-	-	-
E	281442.0	-	∞	39780	4640.0	21.1 - 26.4	11695	-	-	-
F	277101.0	-	∞	39780	4640.0	21.1 - 26.4	12136	-	-	-
G	273483.0	82' 8"	∞	39780	4640.0	21.1 - 26.4	12533	-	-	-

	Lifting moment (mt)	Outreach (m)	Slewing angle (°)	Slewing torque (mt)	Pressure (MPa)	Pump capacity (l/min)	Crane Weight (kg)	Crane Height (mm)	Crane Width (mm)	Installation Width (mm)
A	-	7.7	∞	-	-	80 - 100	-	-	-	-
B	-	9.7	∞	-	-	80 - 100	-	-	-	-
C	-	11.8	∞	-	-	80 - 100	-	-	-	-
D	-	14.1	∞	-	-	80 - 100	-	-	-	-
E	-	16.4	∞	-	-	80 - 100	-	-	-	-
F	-	18.7	∞	-	-	80 - 100	-	-	-	-
G	-	21.0	∞	-	-	80 - 100	-	-	-	-

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
