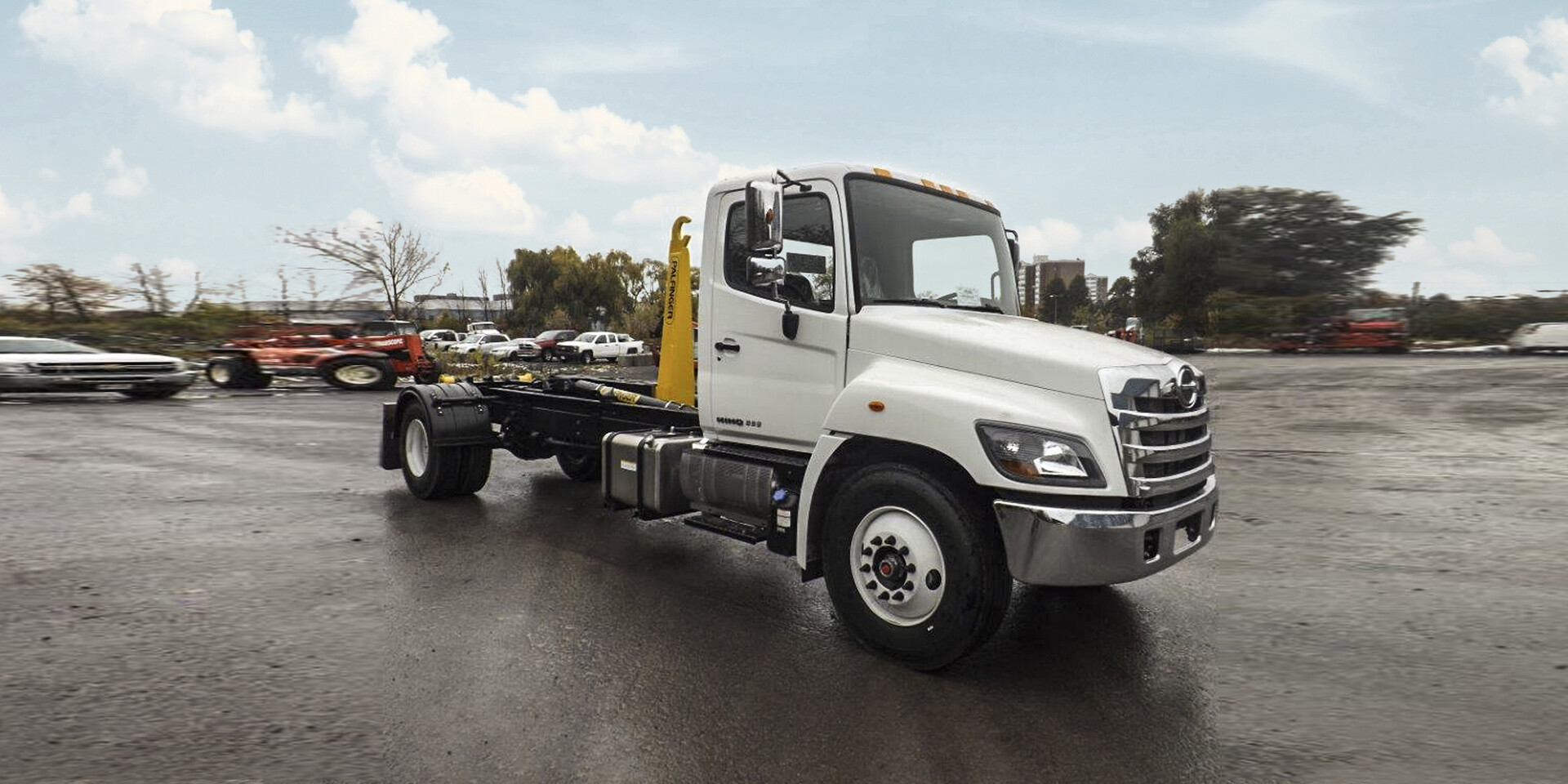

Hooklift

Single Axle
Imperial Metric
Hook Height 54" | 61 ¾"
Container Length 10 – 18 ft
Min GVWR 26,000 lbs.
Technical Data

This model features a telescoping (54 inch) jib and dual main cylinders.

22,000 lbs. capacity

Downloads
Lift / DumpCapacity (lb.) CA Range (in.) Optimum CA (in.) Min. GVWR (lb.) Min RBM (in. lb.) Hooklift length Clear Frame Rail (in.) Body Length Range (ft.) Optimum Body Lenghts (ft.) Jib Height (in.) Jib Action Max. Dump Angle Pivot # of Lift / Dump Cylinders Operating Pressure (PSI) Pump Type Fitting Hoses Shipping Weight (lb.) Paint Construction
S 22000 115-125" 125 26000 N/A 158 163 10-14' 12-14' 54'' Telescopic 52 degrees Dual 2/2 3300 Piston - Direct mount JIC/SAE 2620 Primer A514 (T-1)
M 22000 132-144" 144 26000 N/A 176 181 12-16' 14-16' 54'' Telescopic 53 degrees Dual 2/2 4650 Piston - Direct mount JIC/SAE 2690 Primer A514 (T-1)
L 22000 144-160" 160 26000 N/A 197 202 14-18' 16-18' 54'' Telescopic 51 degrees Dual 2/2 4650 Piston - Direct mount JIC/SAE 2755 Primer A514 (T-1)
Lift / DumpCapacity (lb.) CA Range (in.) Optimum CA (in.) Min. GVWR (lb.) Min RBM (in. lb.) Hooklift length Clear Frame Rail (in.) Body Length Range (ft.) Optimum Body Lenghts (ft.) Jib Height (in.) Jib Action Max. Dump Angle Pivot # of Lift / Dump Cylinders Operating Pressure (PSI) Pump Type Fitting Hoses Shipping Weight (lb.) Paint Construction
S 9979 115-125" 125 26000 N/A 401 414 3.05-4.27 m 3.66-7.07 m 137.16 cm Telescopic 52 degrees Dual 2/2 228 Piston - Direct mount JIC/SAE 1189 Primer A514 (T-1)
M 9979 132-144" 144 26000 N/A 447 460 3.66-4.88 m 4.27-4.88 m 137.16 cm Telescopic 53 degrees Dual 2/2 320 Piston - Direct mount JIC/SAE 1189 Primer A514 (T-1)
L 9979 144-160" 160 26000 N/A 500 513 4.27-5.49 m 4.88-5.49 m 137.16 cm Telescopic 51 degrees Dual 2/2 320 Piston - Direct mount JIC/SAE 1250 Primer A514 (T-1)
  • Dual Pivot Design
    • Flexible design with true dumping capabilities
  • High Pressure Hydraulics (3,600 psi to 4,500 psi)
    • Allows system to take advantage of smaller cylinders, sving you weight and increases your available payload.
  • Container Hold Downs
    • Inside on T-12, PHT-16, and T-20 models
    • Outside on all other models
      • Adjustable (forward and back) on PHT-22
  • Dual Lift/Dump Cylinders
    • Steady and secure handling of bodies during loading, unloading and dumping operations
  • Dual Counter Balance Valves
    • Safety feature providing power up and power down
    • Accessible and serviceable
  • Dual Rear Rollers standard on T-40 models and up
  • Soft Stop Landing standard on T-29 and up
  • Telescopic jib
  • High strength steel supports
    • No wearable/replaceable pads
  • Adjustable Height Jib
    • Hydraulic optional on T-29S, T29-M - 36" and 54"
    • Manual standard on T-40 and up - 54" and 62"
  • Inside Controls
  • Greasable with bronze bushings at all pviot points
  • High strength steel frame - Z rail design
  • Safety sensors
    • Jib sensor ensures the jib cannot retract while in dump mode (all models)
    • Dump latch sensor ensures the latches are fully engated (all models)
    • Soft stop sensor ensures gentle landing of body after dumping (T-29 and up)
  • 3-Year Limited Warranty
