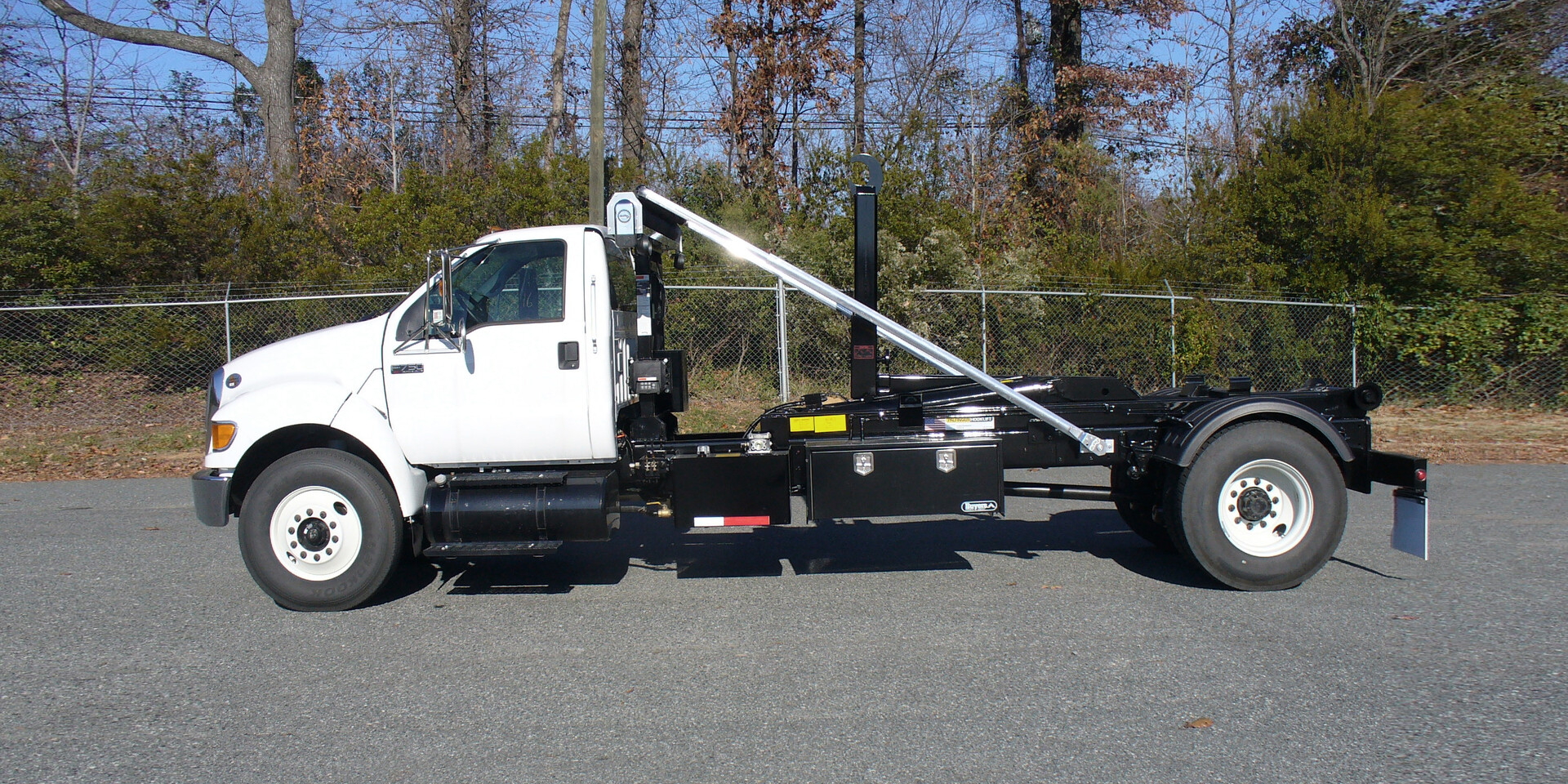

Hooklift

Single Axle
Imperial Metric
Hook Height 54"
Container Length 10 – 16 ft
Min GVWR 26,000 lbs
Technical Data

This hoist features in-cab and outside controls. Low pressure hydraulics. Dual points of articulation.

20,000 lb. capacity

Downloads
Lift / DumpCapacity (lb.) CA Range (in.) Optimum CA (in.) Min. GVWR (lb.) Min RBM (in. lb.) Hooklift length Clear Frame Rail (in.) Body Length Range (ft.) Optimum Body Lenghts (ft.) Jib Height (in.) Jib Action Max. Dump Angle Pivot # of Lift / Dump Cylinders Operating Pressure (PSI) Pump Type Fitting Hoses Shipping Weight (lb.) Paint Construction
M 20000 120-130'' 130 26000 900,000 lbs. 158 163 10-14' 12-14' 54'' Telescopic 58 degrees Dual 2/2 2900 Gear - Direct mount JIC/SAE 3380 Primer A709 (Grade 50)
L 20000 130-144'' 144 26000 900,000 lbs. 180 185 12-16' 14-16' 54'' Telescopic 52 degrees Dual 2/2 2900 Gear - Direct mount JIC/SAE 3400 Primer A709 (Grade 50)
Lift / DumpCapacity (lb.) CA Range (in.) Optimum CA (in.) Min. GVWR (lb.) Min RBM (in. lb.) Hooklift length Clear Frame Rail (in.) Body Length Range (ft.) Optimum Body Lenghts (ft.) Jib Height (in.) Jib Action Max. Dump Angle Pivot # of Lift / Dump Cylinders Operating Pressure (PSI) Pump Type Fitting Hoses Shipping Weight (lb.) Paint Construction
M 9071 120-130" 130 26000 900,000 lbs. 401 414 3.05-4.27 m 3.66-4.27 m 137.16 cm Telescopic 58 degrees Dual 2/2 200 Gear - Direct mount JIC/SAE 1534 Primer A709 (Grade 50)
L 9071 130-144" 144 26000 900,000 lbs. 457 470 3.66-4.88 m 4.27-4.88 m 137.16 cm Telescopic 52 degrees Dual 2/2 200 Gear - Direct mount JIC/SAE 1543 Primer A709 (Grade 50)
  • Dual Pivot Design
    • Flexible design with true dumping capabilities
  • Low Pressure Hydraulics
    • Designed to work closer witih other hydraulically powered equipment
  • Container Hold Downs
    • Used to secure body during transport
    • Located outside (standard on all models)
  • Dual Lift/Dump Cylinders
    • Steady and secure handling of bodies during loading, unloading and dumping operations
  • Dual Counter Balance Valves
    • Safety feature providing pwer up and power down.
    • Accessible and serviceable
  • Telescopic Jib
    • Allows the body to glive effortlessly across the hoist's platform and into the container hold downs
    • Provides better center of gravity for loaded bodies
    • Allows for dumping of overloaded loads (use long hold down plates)
  • Patented Mechanical Jib Locking Design
    • Patented feature that prevents jib operation while in dump mode, without the need for proximity or hydraulic sensors
  • Adjustable Height Jib (optional - HAD 185 only - 36" and 54")
    • Designed to manage bodies set up at various hook heights
  • Inside & Outside Controls
    • Convenient hoist operation
  • Greasable with bronze bushings at all pivot points
    • Servicable working points with replaceable bushings
  • Supports/Guides
    • Steel - no wearable/replacable pads necessary (all models)
    • Steel rollers (HAD 250 and HAD 300 only)
  • Body Bumper (HAD 250 & HAD 300 only)
    • Snugs up to the head sheet to m inimize road chatter
  • Frame
    • Tubular design for optimal strength and support
  • 3-Year Limited Warranty
    • Structural parts
