Single

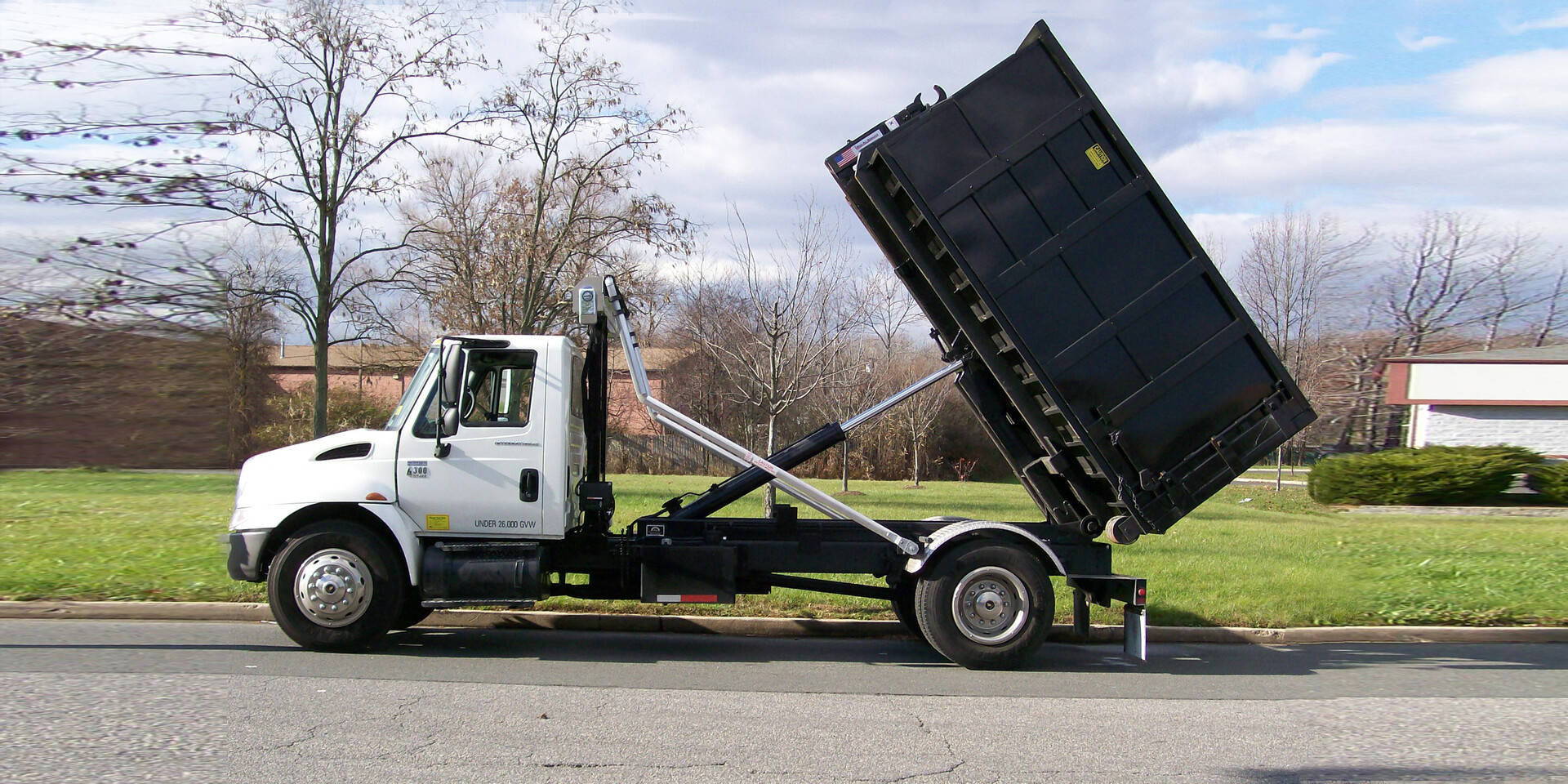

HAD 185
Single Axle
Hooklift
Imperial
Metric
Hook Height
Hook Height
920.75 mm|1371.6 mm
36 ¼"|54"
Container Length
Container Length
3 – 4.3m
10 – 14 ft
Min GVWR
Min GVWR
11793.4 kg
26,000 lbs.
This hoist features in-cab and outside controls. Low pressure hydraulics. Dual points of articulation.
18,500 lbs. capacity
| Lift / DumpCapacity (lb.) | CA Range (in.) | Optimum CA (in.) | Min. GVWR (lb.) | Min RBM (in. lb.) | Hooklift length | Clear Frame Rail (in.) | Body Length Range (ft.) | Optimum Body Lenghts (ft.) | Jib Height (in.) | Jib Action | Max. Dump Angle | Pivot | # of Lift / Dump Cylinders | Operating Pressure (PSI) | Pump Type | Fitting Hoses | Shipping Weight (lb.) | Paint | Construction | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 18500 | 115-125'' | 125 | 26000 | 900,000 lbs. | 153 | 158 | 10-14' | 12-14' | 36.25'' & 54'' | Telescopic | 58 degrees | Dual | 2/2 | 2900 | Gear - Direct mount | JIC/SAE | 3300 | Primer | A709 (Grade 50) |
| Lift / DumpCapacity (lb.) | CA Range (in.) | Optimum CA (in.) | Min. GVWR (lb.) | Min RBM (in. lb.) | Hooklift length | Clear Frame Rail (in.) | Body Length Range (ft.) | Optimum Body Lenghts (ft.) | Jib Height (in.) | Jib Action | Max. Dump Angle | Pivot | # of Lift / Dump Cylinders | Operating Pressure (PSI) | Pump Type | Fitting Hoses | Shipping Weight (lb.) | Paint | Construction | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 8391 | 115-125" | 125 | 26000 | 900,000 lbs. | 389 | 401 | 3.05-4.27 m | 3.66-4.27 m | 92.07 cm & 137.16 cm | Telescopic | 58 degrees | Dual | 2/2 | 200 | Gear - Direct mount | JIC/SAE | 1497 | Primer | A709 (Grade 50) |
- Dual Pivot Design
- Flexible design with true dumping capabilities
- Low Pressure Hydraulics
- Designed to work closer witih other hydraulically powered equipment
- Container Hold Downs
- Used to secure body during transport
- Located outside (standard on all models)
- Dual Lift/Dump Cylinders
- Steady and secure handling of bodies during loading, unloading and dumping operations
- Dual Counter Balance Valves
- Safety feature providing pwer up and power down.
- Accessible and serviceable
- Telescopic Jib
- Allows the body to glive effortlessly across the hoist's platform and into the container hold downs
- Provides better center of gravity for loaded bodies
- Allows for dumping of overloaded loads (use long hold down plates)
- Patented Mechanical Jib Locking Design
- Patented feature that prevents jib operation while in dump mode, without the need for proximity or hydraulic sensors
- Adjustable Height Jib (optional - HAD 185 only - 36" and 54")
- Designed to manage bodies set up at various hook heights
- Inside & Outside Controls
- Convenient hoist operation
- Greasable with bronze bushings at all pivot points
- Servicable working points with replaceable bushings
- Supports/Guides
- Steel - no wearable/replacable pads necessary (all models)
- Steel rollers (HAD 250 and HAD 300 only)
- Body Bumper (HAD 250 & HAD 300 only)
- Snugs up to the head sheet to m inimize road chatter
- Frame
- Tubular design for optimal strength and support
- 3-Year Limited Warranty
- Structural parts
