Z-Line
C80Z
Timber & Refuse Loaders

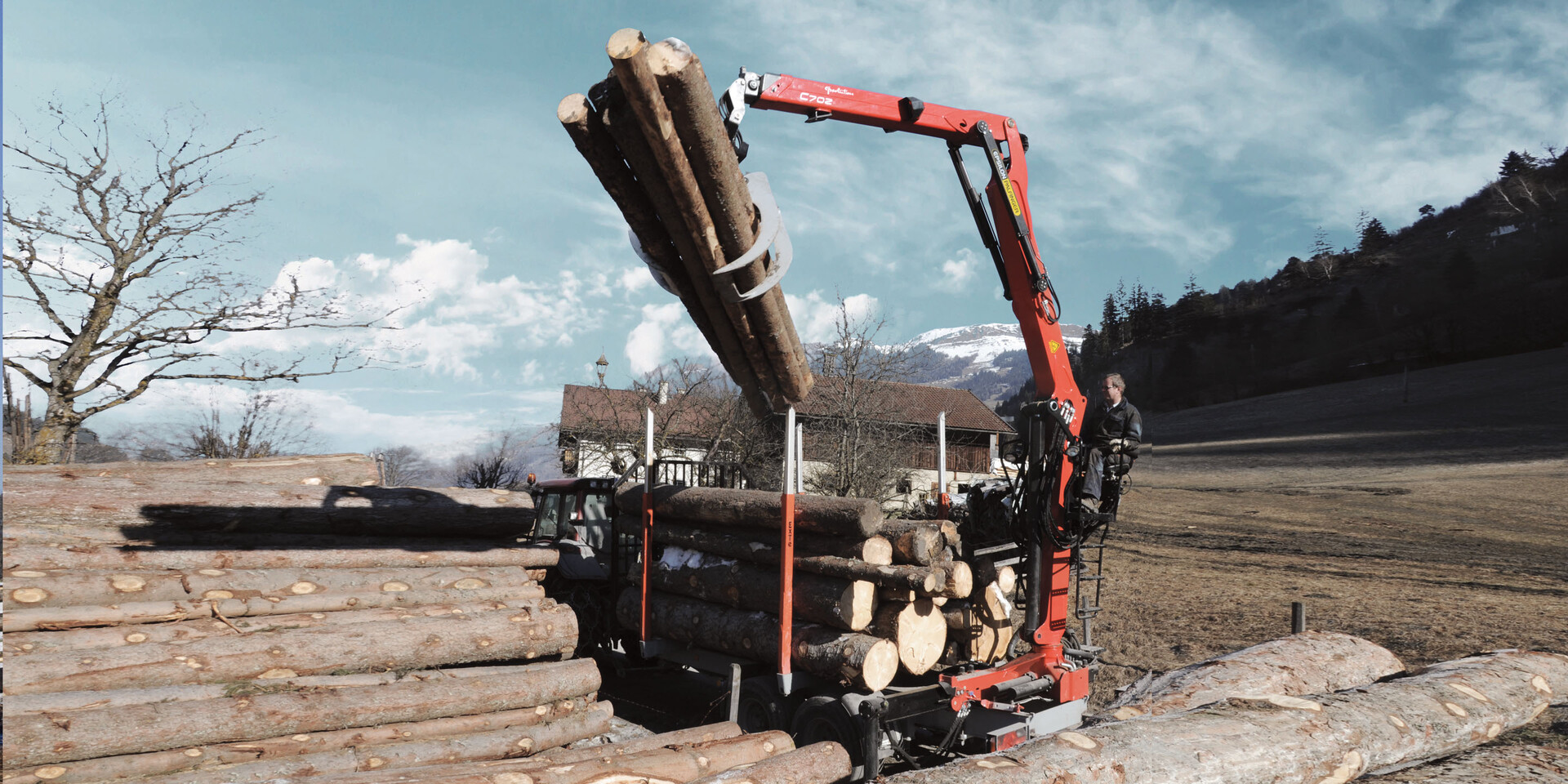

The C-Series is the compact class of EPSILON loaders in the Z-Line product range. This style of loader is a significant time saver with many available configurations. The C80Z allows the operator to safely fold and stow the loader during transport without having to disconnect the grapple.
EPSCOPE
Extension components are located inside the boom for maximum protection. Unparalled speed and precision derived from a synchronized chain/cylinder combination. Service maintenance is facilitated by protective covers that provide access to exchange hoses, pipes, and cylinder. No need to dismantle boom.
EPSLINK
Provides maximum protection and maneuverability through internal hose routing. No more hoses hang around the link/rotator vulnerable to breakage from timber/refuse or from being stowed on the load.
| Max. lifting capacities (lbs.) | Max capacity at full extension (lbs.) | Max outreach (ft.) | Weight without rotator/grab (lbs.) | Slewing torque (mt) | Slewing angle | Operating pressure | |
|---|---|---|---|---|---|---|---|
| Single | 5556 | 2292 | 24 | 3880 | 14751 | 425 degrees | 3480 psi - 2x16 gpm |
| Double | 5401 | 1895 | 29.2 | 4057 | 14751 | 425 degrees | 3480 psi - 2x16 gpm |
| LIFTING | Max capacity at full extension (kg.) | Max outreach (m) | Weight without rotator/grab (kg.) | Slewing torque (ft.lbs) | Slewing angle | Operating pressure | |
|---|---|---|---|---|---|---|---|
| Single | 2520 | 1040 | 7.3 | 1760 | 20 | 425 degrees | 240 bar - 2x60 g/min. |
| Double | 2450 | 860 | 8.9 | 1840 | 20 | 425 degrees | 240 bar - 2x60 l/min. |
