Cantilever
MBB C 750 L
Tail Lift
MBB C 750 L
| Lifting capacity | 750 kg |
| Main beam | 120 x 80 mm |
| Lifting gear hydraulics | 1 lifting cylinder / 1 tilting cylinder |
| Platform overlap with floor | -57 mm |
| Lift arm pitch /Lift arm length | 460 mm / 1120 mm / 1240 mm |
| Load centre - lengthwise | 600 mm |
| Load centre - across center | Central 50% of rated load on one side |
| Inclination angle of the platform | 90° to -10 |
| Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
|---|---|---|---|---|---|
| alu | 2100 | 1450 | 199 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

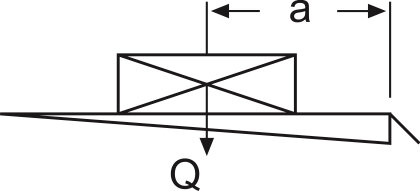

| a (mm) | Q (kg) |
| 600 | 750 |
| 700 | 650 |
| 820 | 550 |
| 1120 | 400 |

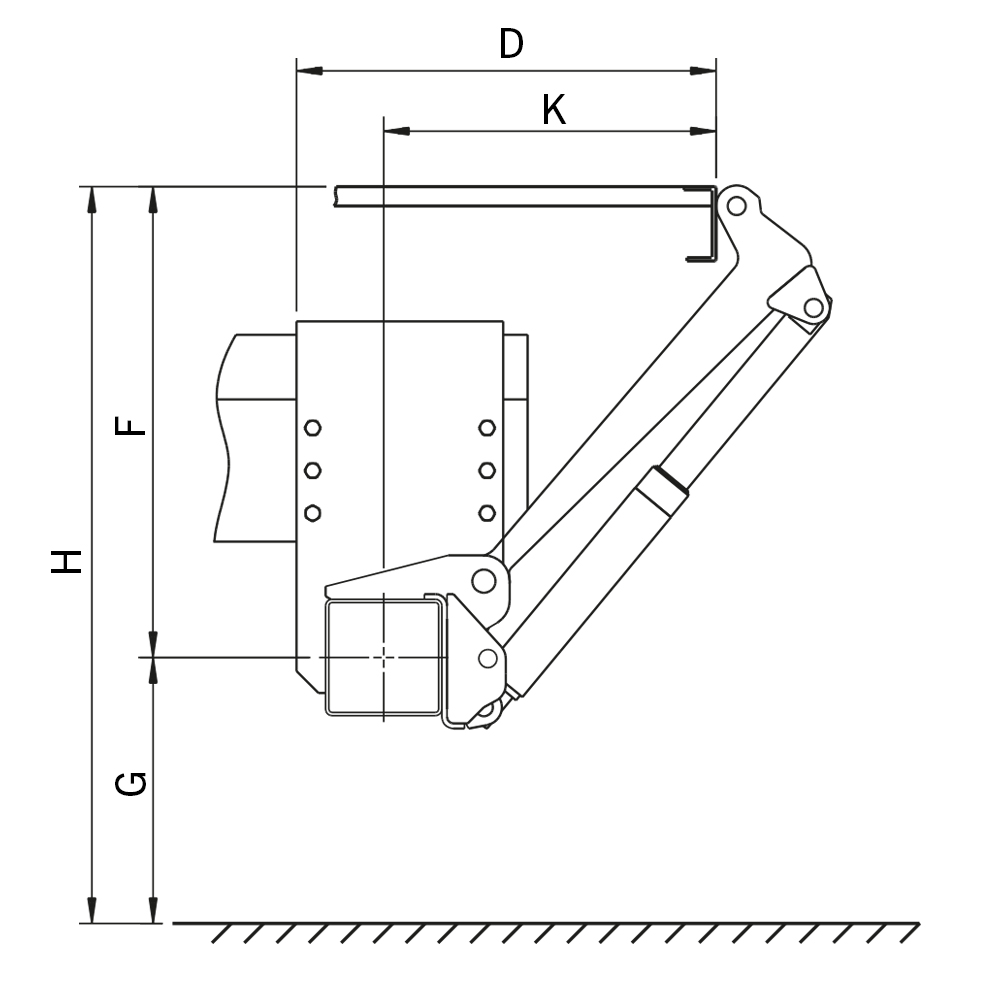

| Lift arms (in mm) | 600 |
| H (max.) Loading height unloaded | 1080 |
| H (min.) Loading height loaded | 680 |
| F (max.) Middle of main beam to upper edge of loading floor | 580 |
| K (min.) at dimension F (max.) | 443 |
| D (min.) Installation space (min.) | 565 |
| D (max.) Installation space (max.) | 700 |
| F (min.) | 420 |
| K (max.) at dimension F (min.) | 578 |
| G (max.) Unloaded (middle of main beam to ground) | 500 |
| G (min.) loaded | 260 |
