P 250 BK
P 250 BK

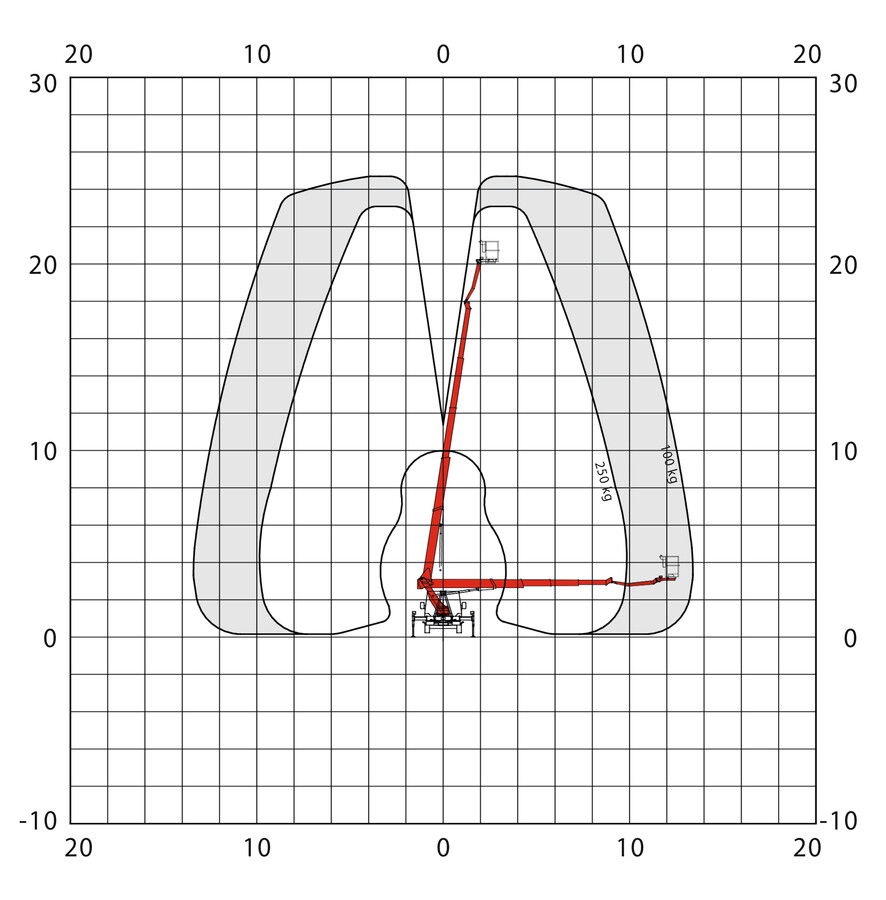

|Max. height of work||24.7 m|
|Max. basket floor height||22.7 m|

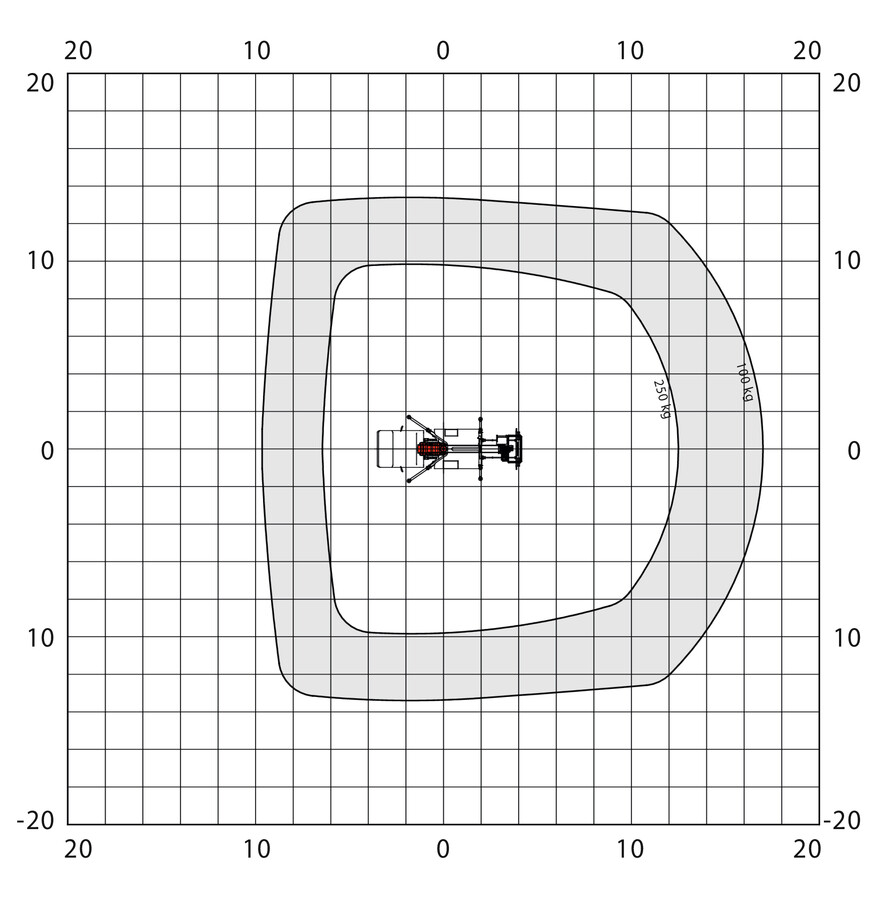

|Max. horizontal outreach /with basket load||16,9 m|
|Slewing range of basket||+/- 90°|
|Max. stabilizer spread||3.6 m|
|Operating angle of working arm||185°|
|max. basket load||250 kg|
|Workman basket - breadth / length / height||1,4 x 0,7 x 1,1 m|
|Rotation angle of turntable||500°|
|Maximum stabilisation gradient||5°|

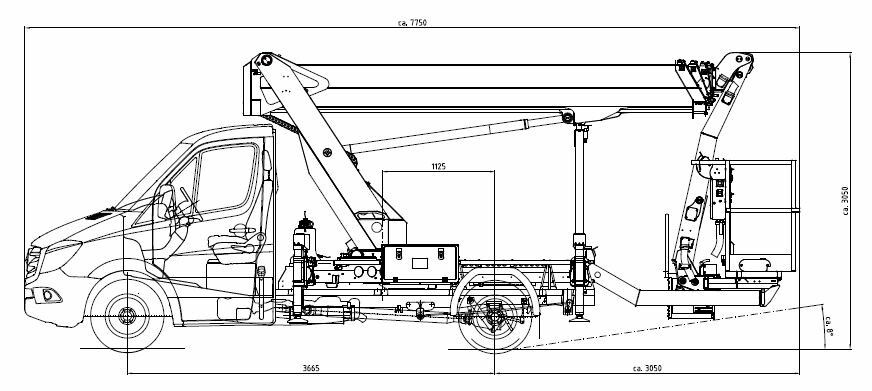

|Height in transport position||2.90 m|
|Width in transport position||2.22 m|
|Overall length||6.87 m|
|Overall weight||3500 kg|
* depending on inclination
** depending on truck chassis
Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
