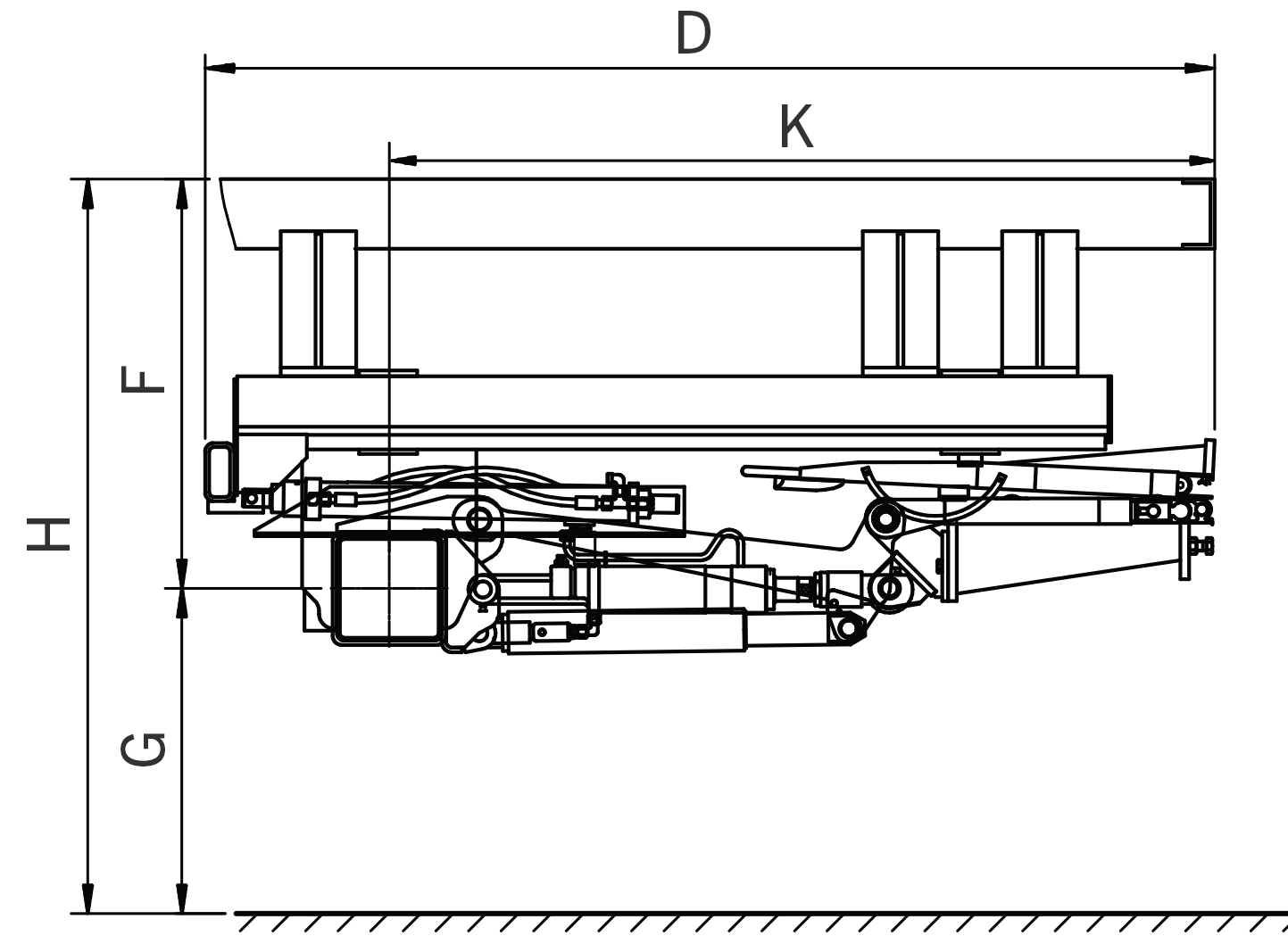

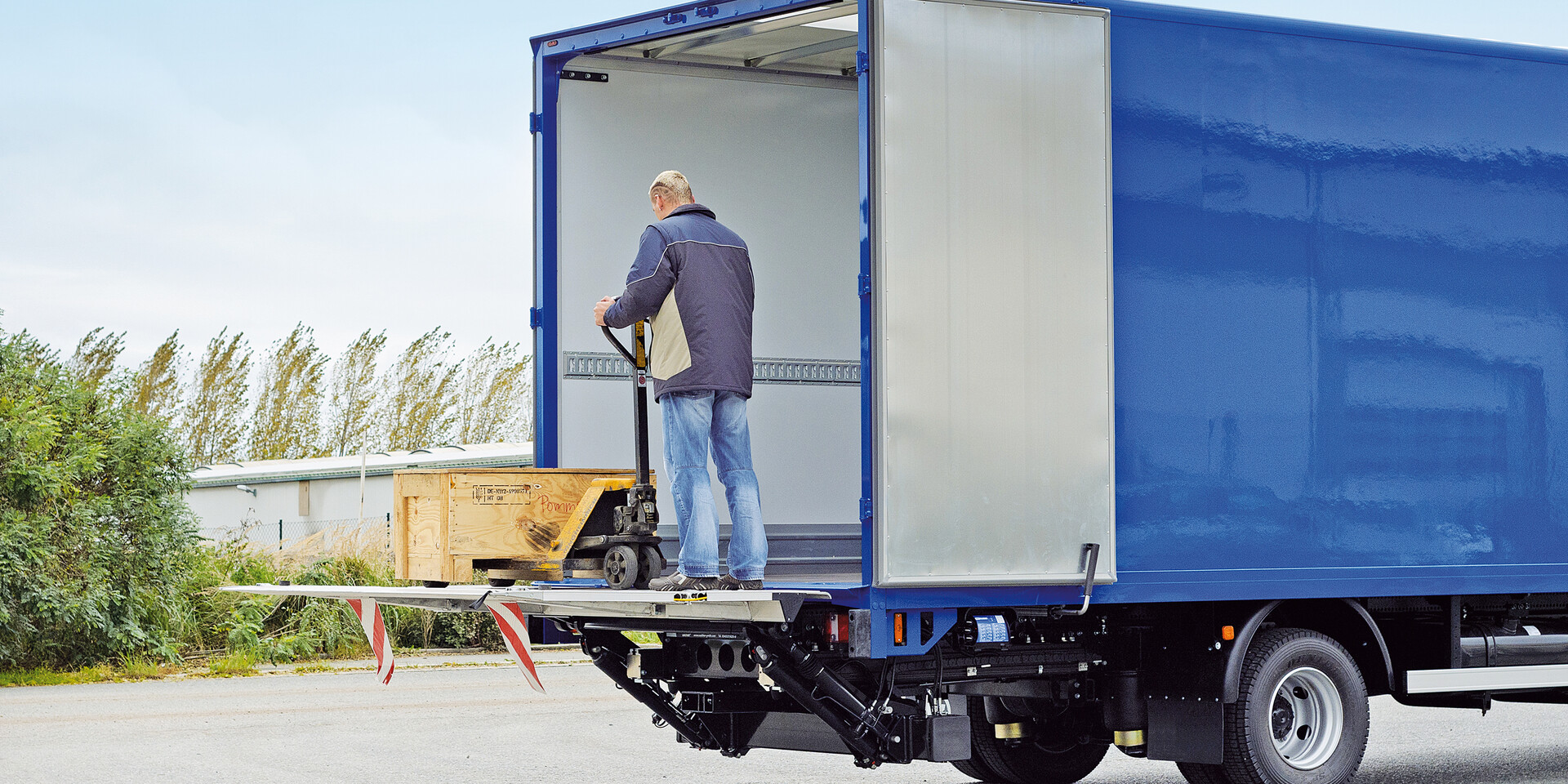

Retractable

MBB R 1000 S

Tail Lift

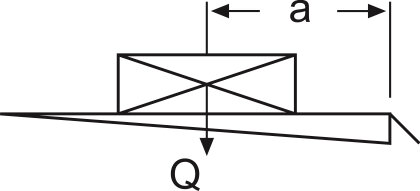

  • 1,000 kg lifting capacity with four cylinders and 700 mm load distance
  • Simple-fold platform
  • Modular, boltable design for adaptation to a wide range of vehicle types
  • All-aluminium or steel/aluminium platform design
  • Spring-supported folding part ≥ Platform housing serves as underride guard
  • Bridging projection for espagnolettes
  • Powerful cylinder for horizontal positioning of the tail lift
  • Optimal adaptation to motor vehicles and trailers thanks to a wide range of different lifting arm lengths and pitches
  • Moving rails in steel as standard, optionally available in aluminium
  • Optionally available completely pre-assembled with energy chain
Downloads

Brochures

MBB R 1000 S

0,64 MB Download

Assembly Instructions

0,21 MB Download

Datasheet Feasibility Study

0,12 MB Download

Operating Instructions

15,72 MB Download
