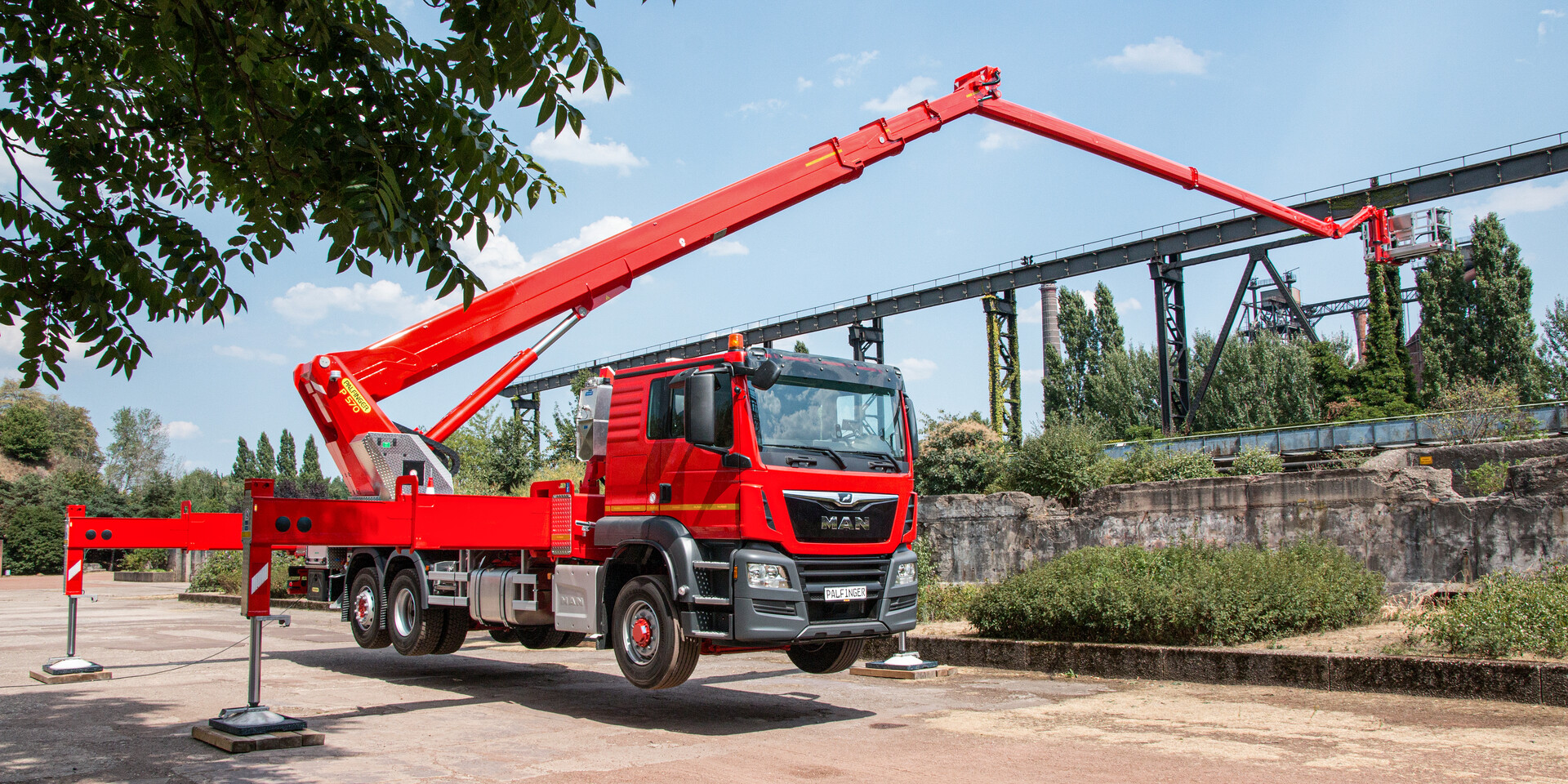

Jumbo Class NX
Working Height 57 M
Basket Load 600 KG
Side Reach 41 m
|Max. height of work||57 m|
|Max. basket floor height||55 m|
|Max. horizontal outreach /with basket load||41 m|
|Slewing range of basket||2 x 200°|
|max. basket load||600 kg|
|Workman basket - breadth / length / height||3.81 x 1.04 x 1.1 m|
|Rotation angle of turntable||540°|
|Height in transport position||3.90 m|
|Width in transport position||2.51 m|
|Overall length||11.93 m|
*above mentioned values are standard values and vary depending on options and chassis
Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
