7 - 17 t GVW
HT 08
TELESCOPIC
Hooklift
The versatility of the PALFINGER TELESCOPIC hooklift makes it the most popular choice among buyers. Covering the widest range of container length and lifting capacity on offer, it is configurable to meet a wide variety of standards and satisfy our customers worldwide. It’s very low transport height and light weight contribute to the assets to maximize application options safely. The different comfort levels make this range highly customizable to the needs of the users and the market.
The HT 08 can be installed on chassis from 8 to 12 t and is capable of handling containers up to 8 t in loading, unloading, trailer transfer and tipping.
Thanks to the telescopic jib, users will be able to handle a wide range of different container lengths and work on a variety of applications with the same vehicle. In addition, rental, transport or waste management companies increase the operating possibilities of their fleet.
The level of equipment technology can be tailored with the SLD or TEC lines to focus on the essentials or benefit from the latest innovations in safety, comfort and performance. It is equipped with a new hook shape to ease catching bars of stackable or unconventional containers.
With the lowest transport height on the market, the HT 08 enables you to transport larger containers to increase the available volume - hookheights from 1000 to 1570 mm. In addition, its light weight optimizes the available payload. Both benefits reduce the number of round trips required to complete a job, saving time and money.
ADVANTAGES
APPLICATIONS
Whether it's to keep a sleepy street quiet or to reduce the sound level of a noisy site, the new "Silent mode" option can improve working conditions while maintaining a high level of safety.
When the option is activated, the traditional buzzer is replaced by three flashing lights to warn of possible arm movement. The lights are strategically placed around the hookloader for maximum visibility: one at the front and two at the rear. The safety of the work site is preserved and the operator handles the containers in better conditions.
The VFF has been developed to allow a better control of operations from inside the cab. Drivers can see accurately and without effort, what they are doing. They can adjust their handling at the right moment saving time without compromising safety

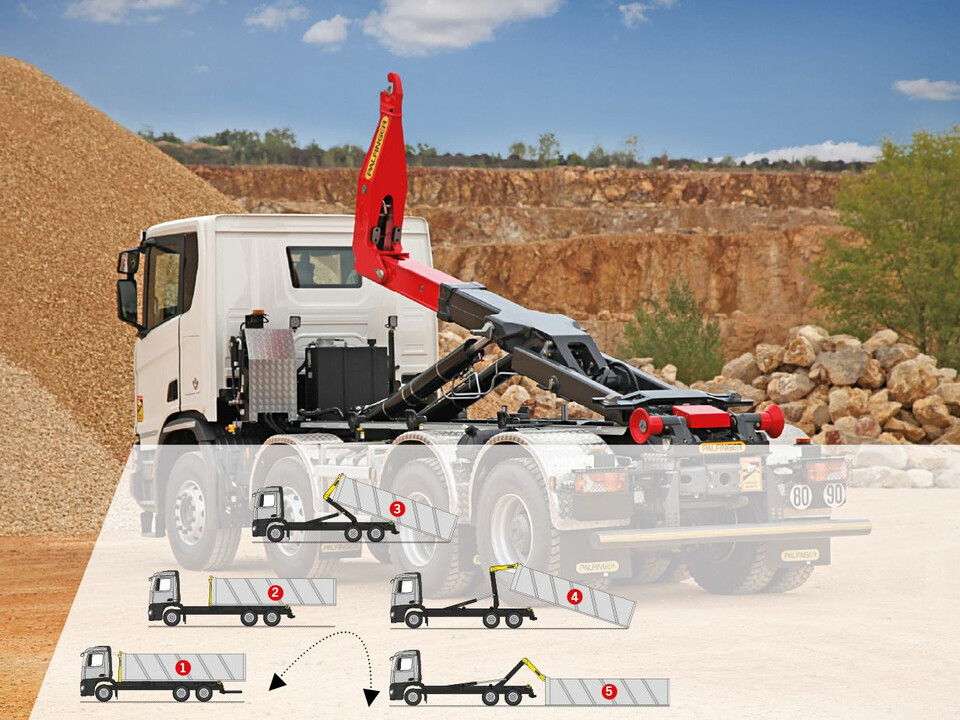

Whether it's unloading, loading or tipping, the automatic sequence control of the PALFINGER hooklift performs all the necessary hydraulic functions automatically one after the other.
Simply select the function, operate the joystick and the work cycle is complete. The movements of the underride protection, the hydraulic inner lock, the arm, the tipping cylinder and the optional functions such as axle stabilizers or the front body safety device are now carried out autonomously in the planned sequence.
All you have to do is monitor the process.
The PAD-Touch control developed by PALFINGER is perfectly suited for moving the hooklift truck with a single joystick directly from the cab. The in-cab control precisely controls the movements of the container, while the screen informs the operator in real time about the position of the boom in its environment. PAD-Touch creates a new standard for boom control.
It is now available with an updated option to control the hook loader from external devices.
TEC 5 |
SLD 5 |
SLD 3 |
| Standard Features: | Standard Features: | Standard Features: |
|
|
|
| Optional Features: | Optional Features: | Optional Features: |
|
|
|
Market standards : NF - DIN - KP7 - CZ
Hookheight (mm) : 1000-1570
Length (mm) : 3550-3800-3950-4350-4750
Container min. length : 3000 mm
Container max. length : 5500 mm
Rail width : 1060-1065 mm
GVW truck : 8 to 12 t
Average weight : 900 kg
Transport height : 235 mm
Tipping angle : 48-54°
