Stiff Boom Crane

SPS 30000

SPS 30000

alt text

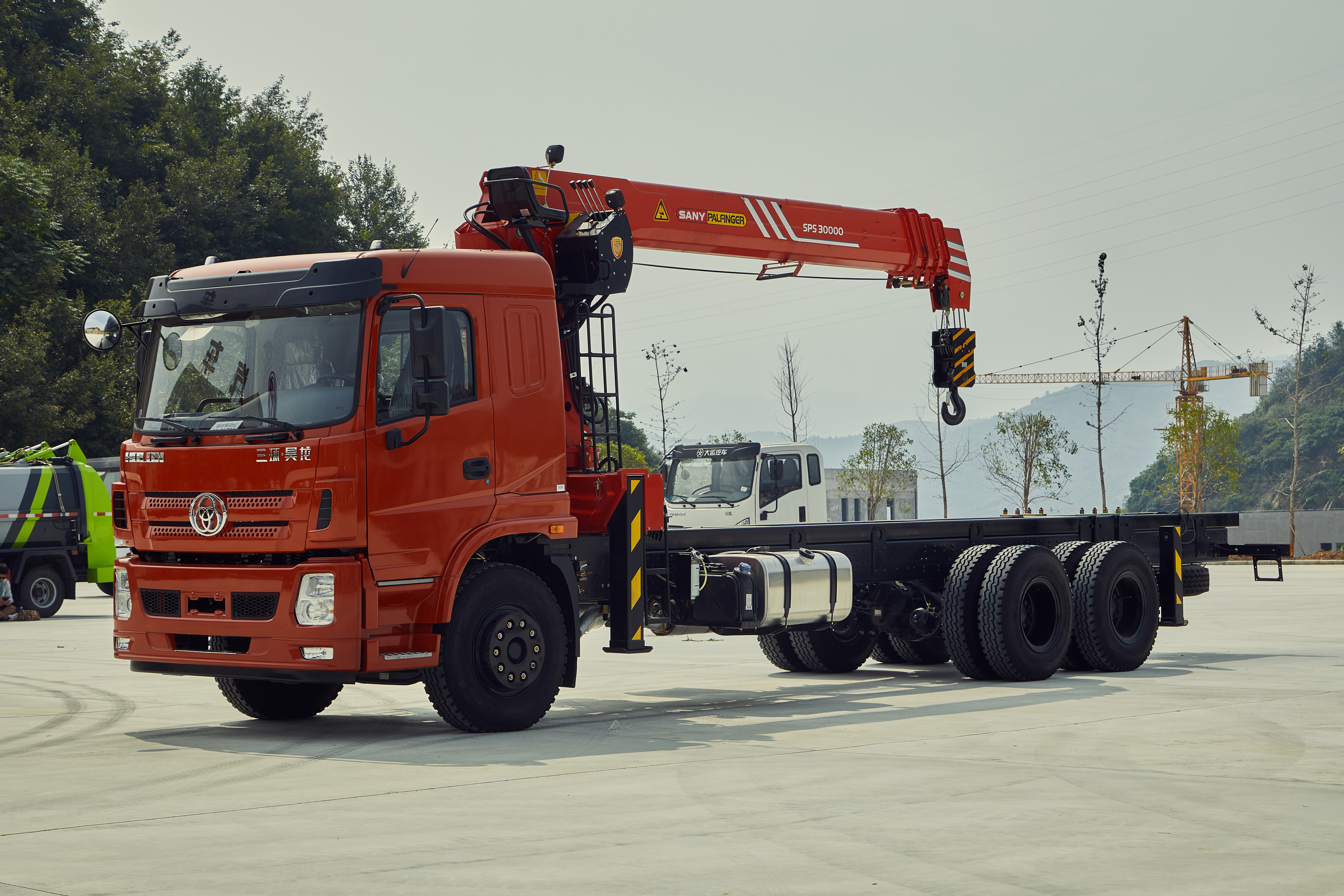

SANY PALFINGER Stiff Boom Crane
Key Specs
Max. Lifting Moment
25 mt
Max. Lifting Capacity
10,000 kg
Max. Outreach
17.7m

Manufactured to European quality standards for reliable, safe performance. Its high-tensile steel boom delivers maximum lifting height and reach, while the wide outrigger span provides secure stability across all mounting situations.

Multiple control methods to meet all the customer's demand.

Hook-In and Over-winding /overload system deliver the maximum safety system. Adaptable equipment for use in various markets and operating environments: Construction, Brick Handling, Infrastructure, Governmental, Electricity

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Octagonal Boom Profile

Octagonal boom profile delivers high strength and rigidity through its optimized cross-section, ensuring stable, reliable lifting performance.

High Tensile Steel: HG785, SC960

Able to withstand higher forces
alt text

Proportional Hydraulic System

Proportional hydraulic system provides smooth, stable control for precise, confident operation in all lifting tasks.

Operator can use multiple functions simultaneously, enabling faster, more efficient crane operation.
alt text

High Pressure Filter

High-pressure filter protects the hydraulic system, ensuring proper functionality and extending the crane’s service life.

alt text

High density paint system

Imported integrated base and topcoat deliver bright, durable color with strong corrosion and weather resistance. The finish holds its gloss for three years and resists fading for up to five years.

High density paint system

Integrated primer and topcoat deliver superior durability, color retention, and long-lasting surface protection.

Long-term UV resistance preserves surface quality and color stability over extended outdoor use.

Clean, professional appearance
alt text

Highlights

Ergonomic Design

Design follows ergonomic principles to ensure comfortable, safe crane operation.

Easy-to-remove components reduce service time and simplify repairs.
alt text

High-Performance Design & Quality System

Simulation analysis checks the crane’s structure under many stress conditions, improving safety and reliability while keeping overall weight low
alt text

Technical Specifications

Technical data
Basic DataSPS 30000BSPS 30000C
Rated Lifting Moment30 mt30 mt
Rated Lifting Capacity12000 kg (2.5m)12000 kg (2.5m)
Max. outreach14.5 m18.1 m
Max. lines of the hook66
Slewing angleContinuousContinuous
Boom raising angle0 ~ 75°0 ~ 75 °
Max. lifting height (the measurement from the ground after the outriggers fully extended)16.5 m20.5 m
Length of the boom system (retracted)5.4 m5.6 m
Length of the boom system (fully extended)14.8 m18.5 m
Boom sections45
Outrigger span (fully extended)6000 (mm)6000 (mm)
Recommended flow rate60 - 90 L/min60 - 90 L/min
Operating pressure30 Mpa30 Mpa
Recommended oil tank capacity200 L200 L
Crane moment (dynamic)507.3 kNm
51.7 mt		507.3 kNm
51.7 mt
Torsional moment (dynamic)30.0 kNm
3.1 mt		30.0 kNm
3.1 mt
Crane Weight4200 kg (Floor Control)
4200 kg (High Seat)		4650 kg (Floor Control)
4650 kg (High Seat)
