Light

PK 7.001 SLD 1

alt text
Loader Crane
Key Specs
Max. lifting moment
6.2 mt
Max. lifting capacity
3,300 kg
Max. hydraulic outreach
11.2 m

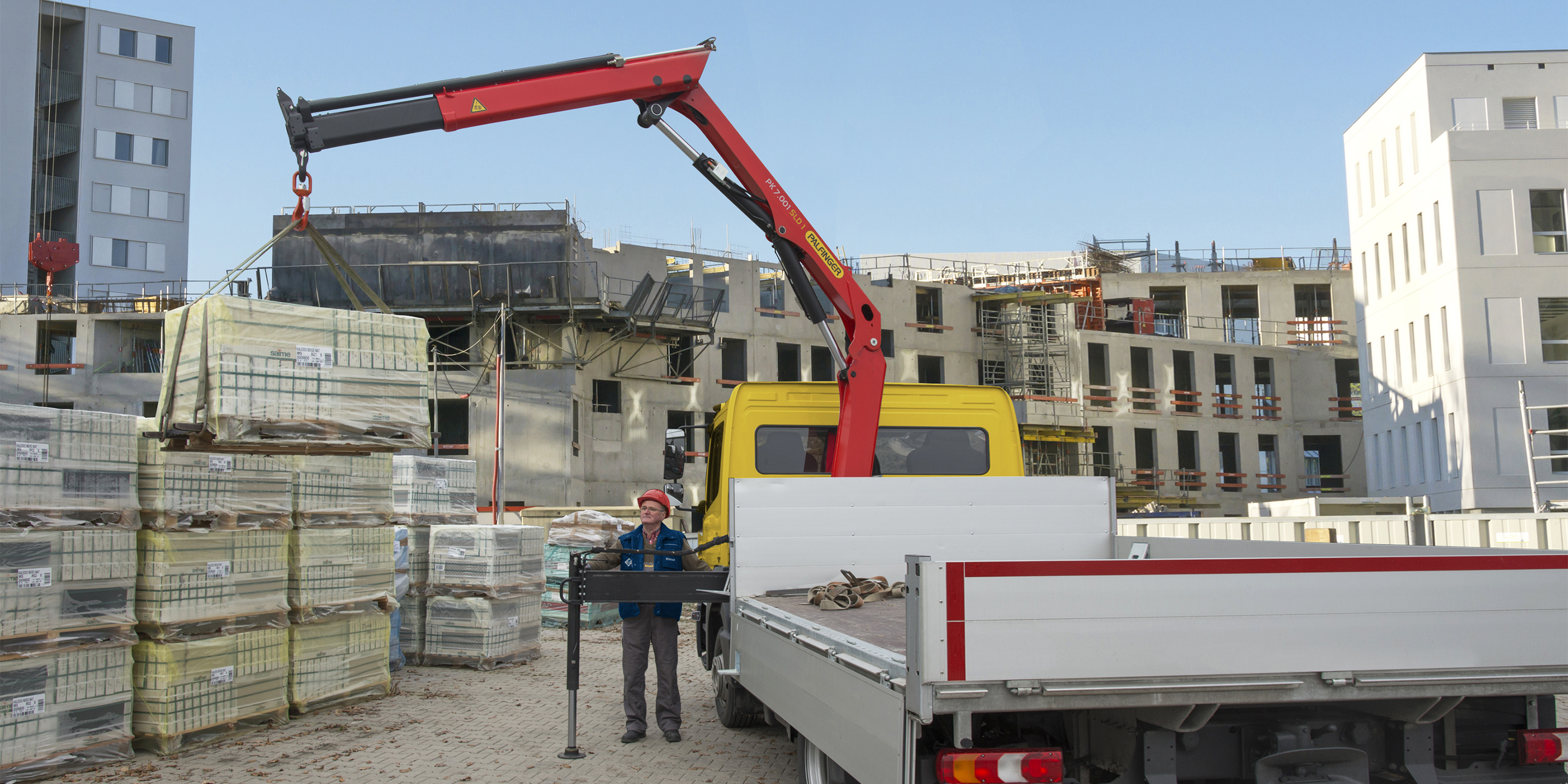

The SLD range combines trusted technology with durable design to deliver robust, value-driven performance. With excellent geometry and durability, the lightweight yet powerful PK 7.001 SLD 1 is built for repetitive tasks. Single Link boosts hook power for faster cycles, ideal for swift yet precise construction site handling.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Diagrams

PK 7.001 SLD ()

View
alt text

PK 7.001 SLD A

View
alt text

PK 7.001 SLD B

View
alt text

PK 7.001 SLD C

View
alt text

Reliable companions for daily lifting operations

Our SLD range is the trusted choice for customers seeking robust, enduring performance. Engineering to provide consistent strength and utterly dependable operation, these cranes require minimal maintenance – even when faced with challenging tasks in tough working conditions.

alt text

Technical Specifications

alt text
Technical data
Max. lifting moment
6.2 mt
Max. lifting capacity
3,300 kg
Max. hydraulic outreach
11.2 m
Max. manual outreach
12.9 m
Slewing angle
400°
Slewing torque
0.8 mt
Stabilizer spread (std)
30 m
Fitting space required (std)
0.66 m
Width folded
2.2 m
Max. operating pressure
330 bar
Pump capacity
20 - 30 l/min
Dead weight (std)
750 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Lifting capacities

Crane Height (mm)

Crane Weight (kg)

Crane Width (mm)

Installation Width (mm)

Lifting moment (mt)

Outreach (m)

Pressure (MPa)

Pump capacity (l/min)

Slewing angle (°)

Slewing torque (mt)
Std 1,930 mm 750 kg 2,200 mm 660 mm 6.2 mt 5.5 m 33 bar 20-30 400 0.8
A 1,930 mm 830 kg 2,200 mm 660 mm 5.9 mt 7.4 m 33 bar 20-30 400 0.8
B 1,930 mm 900 kg 2,200 mm 660 mm 5.8 mt 9.3 m 33 bar 20-30 400 0.8
C 1,930 mm 960 kg 2,220 mm 660 mm 5.6 mt 11.2 m 33 bar 20-30 400 0.8
alt text

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Optional Features

alt text

Radio Remote Control – Full Control

Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
