Special

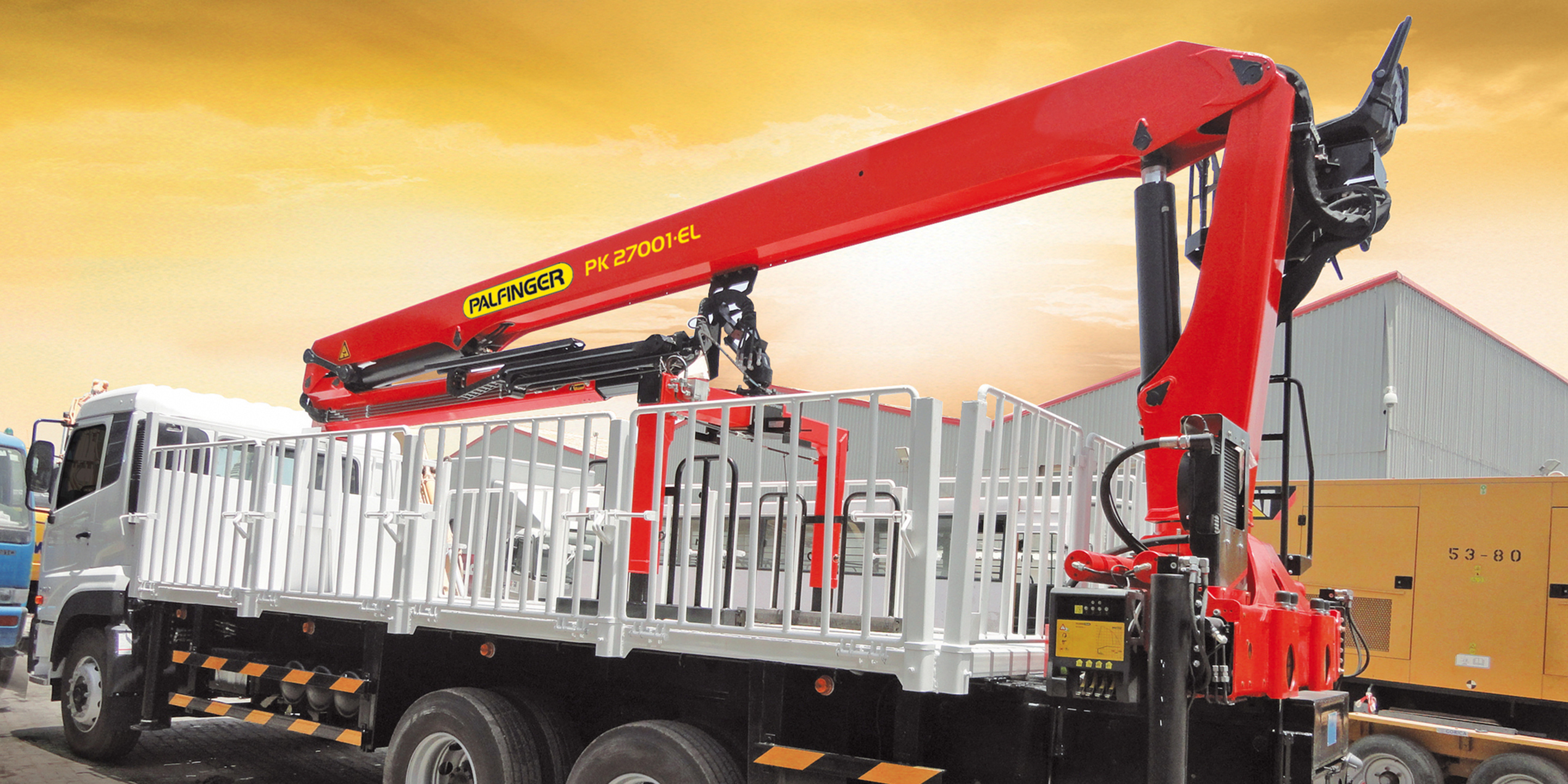

PK 27001 EL

alt text
Loader Crane
Key Specs
Max. lifting moment
21.7 mt
Max. lifting capacity
4,000 kg
Max. hydraulic outreach
15.7 m

Our High Performance range is built for maximum power, endurance, and control. Designed for long-reach applications, the robust PK 27001 EL balances range, speed, and stability. Hydraulic components are routed internally to minimize damage, ensuring stable, efficient performance on construction, roofing, and assembly projects.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

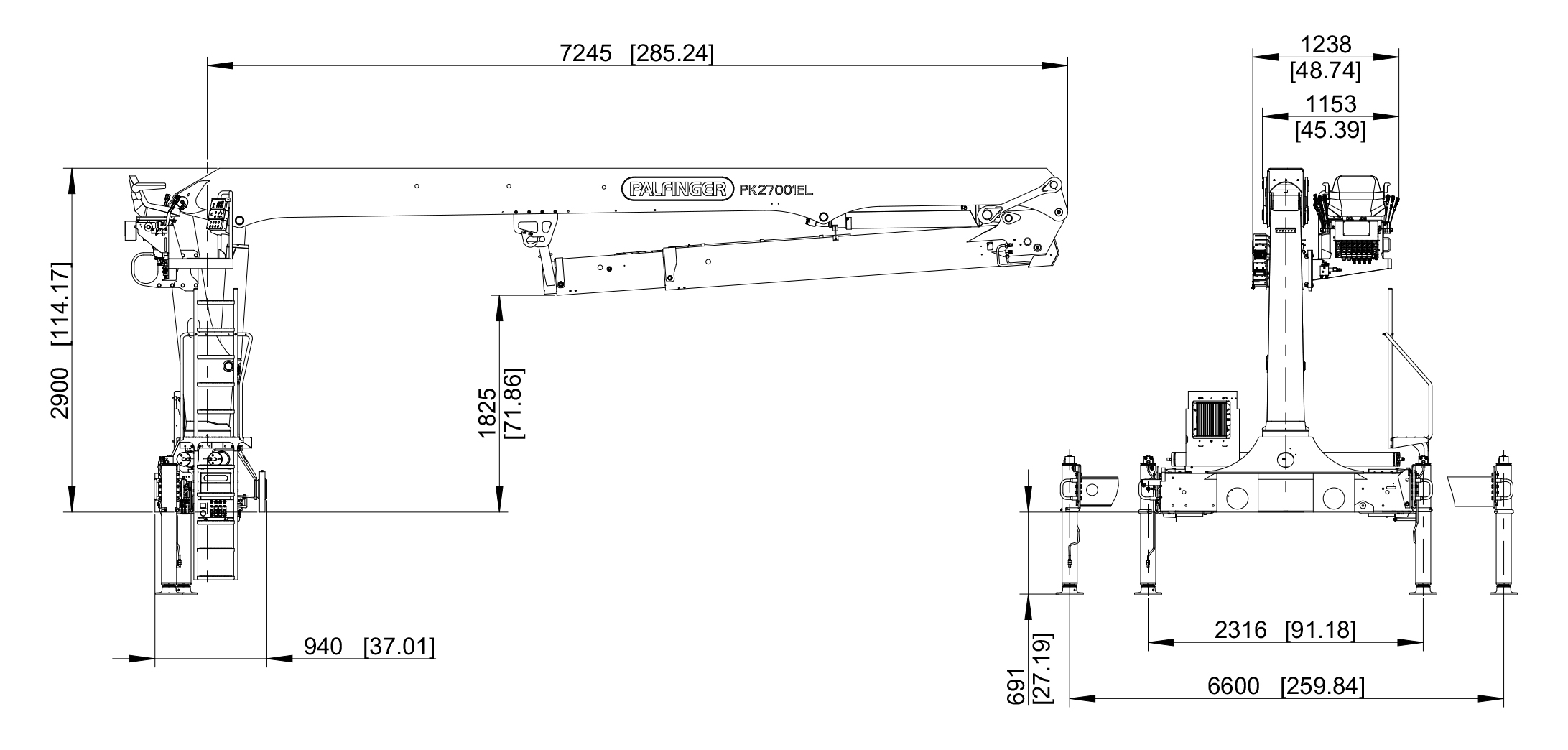

Diagrams

PK 27001-EL A SL4

View
alt text

Technical Specifications

alt text
Technical data
Max. lifting moment
21.7 mt
Max. lifting capacity
4,000 kg
Max. hydraulic outreach
15.7 m
Slewing angle
400°
Slewing torque
3.5 mt
Stabilizer spread (std)
66 m
Width folded
2.55 m
Max. operating pressure
285 bar
Pump capacity
60 - 70 l/min
Dead weight (std)
3,350 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Lifting capacities

Crane Height (mm)

Crane Weight (kg)

Crane Width (mm)

Lifting moment (mt)

Outreach (m)

Pressure (MPa)

Pump capacity (l/min)

Slewing angle (°)

Slewing torque (mt)
A 2,895 mm 3,290 kg 2,550 mm 20.5 mt 15.7 m 28.5 Mpa 60 - 70 400 3.5
alt text

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
