Small

PC 1500 Compact

alt text
alt text
alt text
alt text
alt text
Loader Crane
Key Specs
Max. lifting moment
1.4 mt
Max. lifting capacity
990 kg
Max. hydraulic outreach
3.1 m

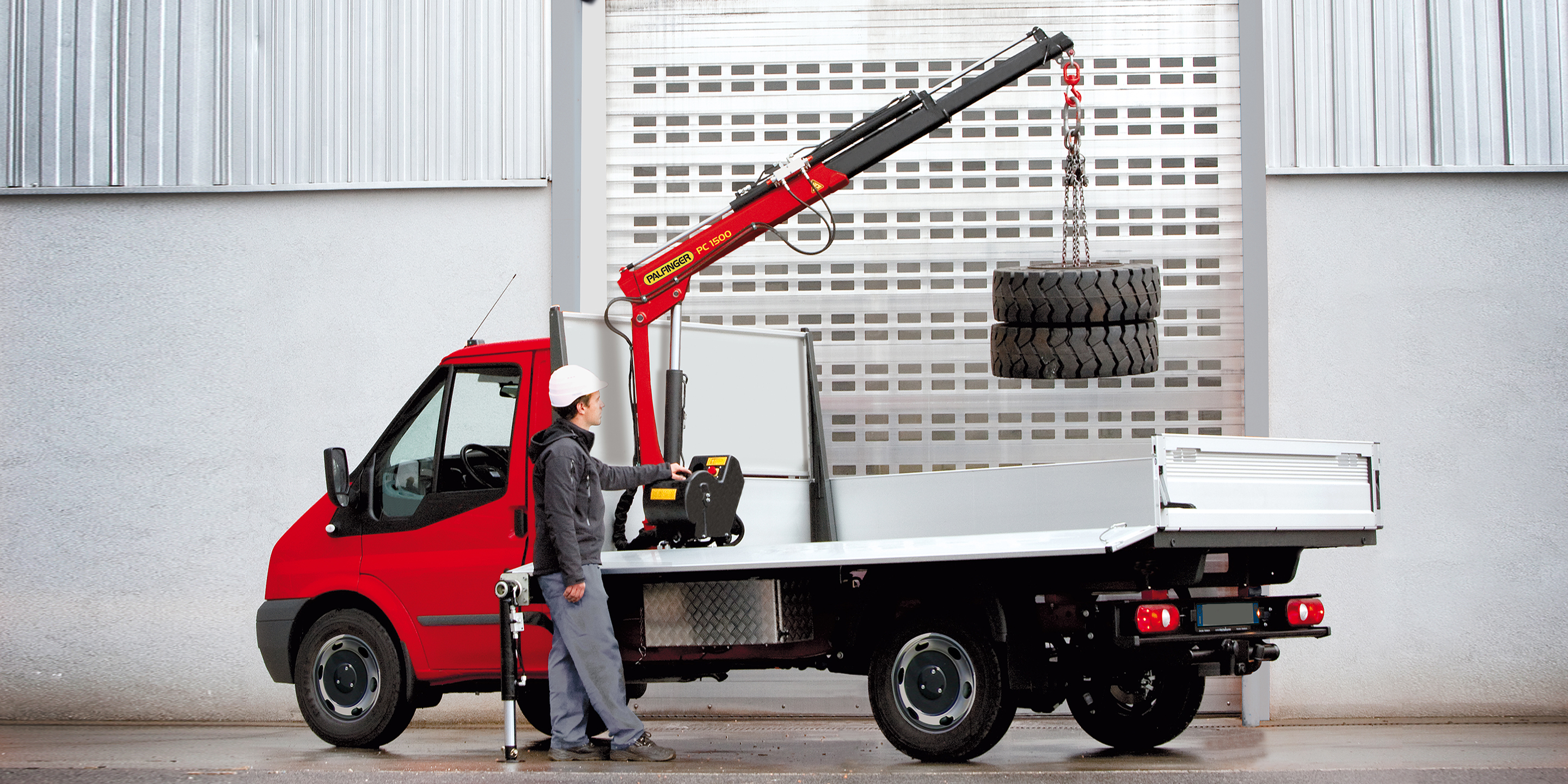

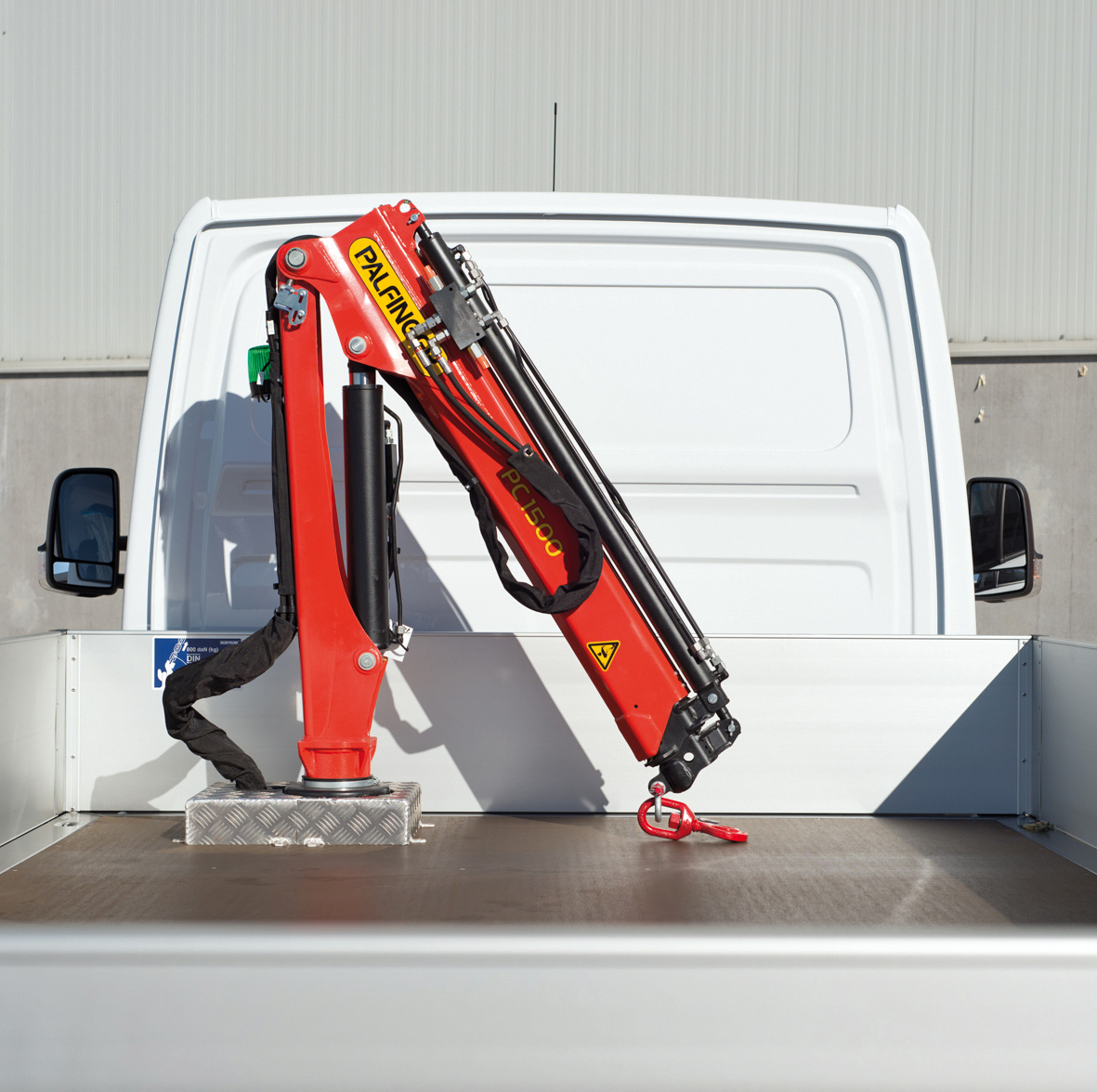

Our Compact cranes deliver outstanding performance with the agility and control to negotiate tight spaces. The lightweight yet durable PC 1500 provides reliable lifting with low maintenance requirements. Internal oil ducts safeguard the extension cylinders, ideal for performing light-duty tasks efficiently on confined sites.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Diagrams

PC 1500 A

View
alt text

Compact strength built on proven PALFINGER power

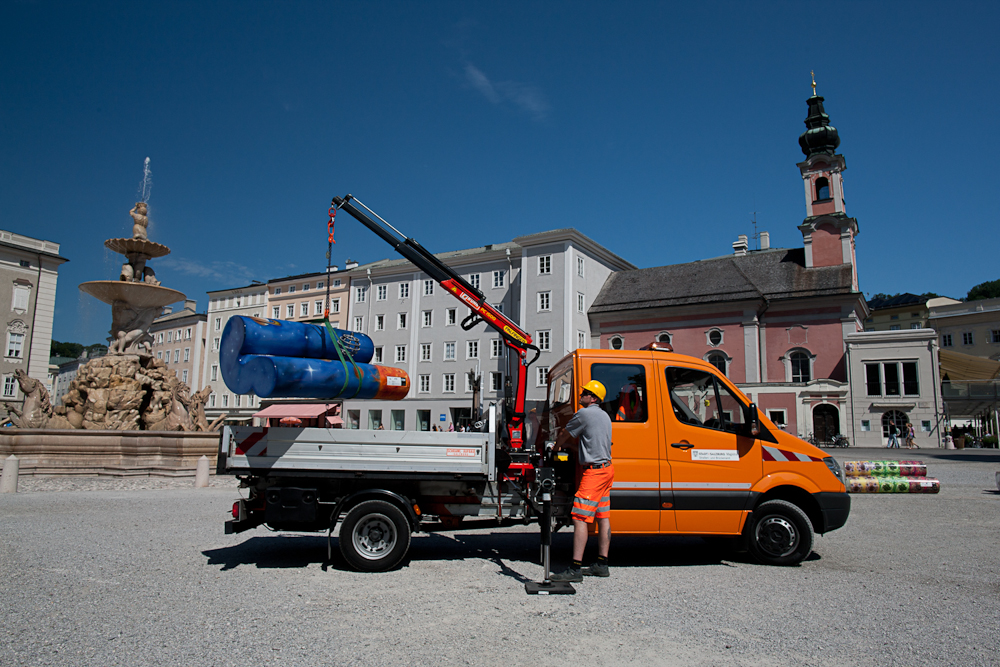

The PC range is the ultimate in lightweight loader crane design. Designed to deliver agile performance in wide-ranging applications and confined spaces, they combine a small footprint with impressive lifting performance. Pound for pound and inch for inch, these compact models routinely surpass expectations.

alt text

Technical Specifications

Technical data
Max. lifting moment
1.4 mt
Max. lifting capacity
990 kg
Max. hydraulic outreach
3.1 m
Max. manual outreach
4.2 m
Slewing angle
325°
Slewing torque
0.2 mt
Max. operating pressure
200 bar
Pump capacity
6 l/min
Dead weight (std)
164 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

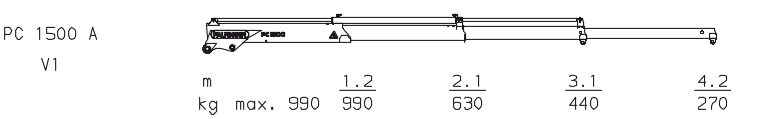

Lifting capacities

Crane Height (mm)

Crane Weight (kg)

Crane Width (mm)

Installation Width (mm)

Lifting moment (mt)

Outreach (m)

Pressure (MPa)

Pump capacity (l/min)

Slewing angle (°)

Slewing torque (mt)
A 1,300 mm 164 kg 635 mm 395 mm 1.4 mt 3.1 m 20 Mpa 6 325 0.2
alt text

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Discover Standard Features

Long-Lasting Coating for Maximum Protection

Advanced coating technology protects components against corrosion, wear, and harsh weather conditions. Multi-stage surface treatment and durable, eco-friendly coatings create a tough, elastic finish with high impact and UV resistance. This extends service life, maintains a high-quality appearance, and preserves resale value while reducing environmental impact and long-term maintenance effort.

alt text

Optional Features

alt text

Radio Remote Control – Full Control

Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.

alt text

Rope Winch – Controlled Vertical Lifting

Rope winch enables precise vertical lifting and lowering of loads, even at long reach or great height. Integrated into the crane control system, it allows smooth, controlled movements and accurate positioning. Assisted functions improve safety, reduce load swing, and expand lifting applications where vertical handling, fine control, or high placement accuracy are required.
