Epsolution

M90R

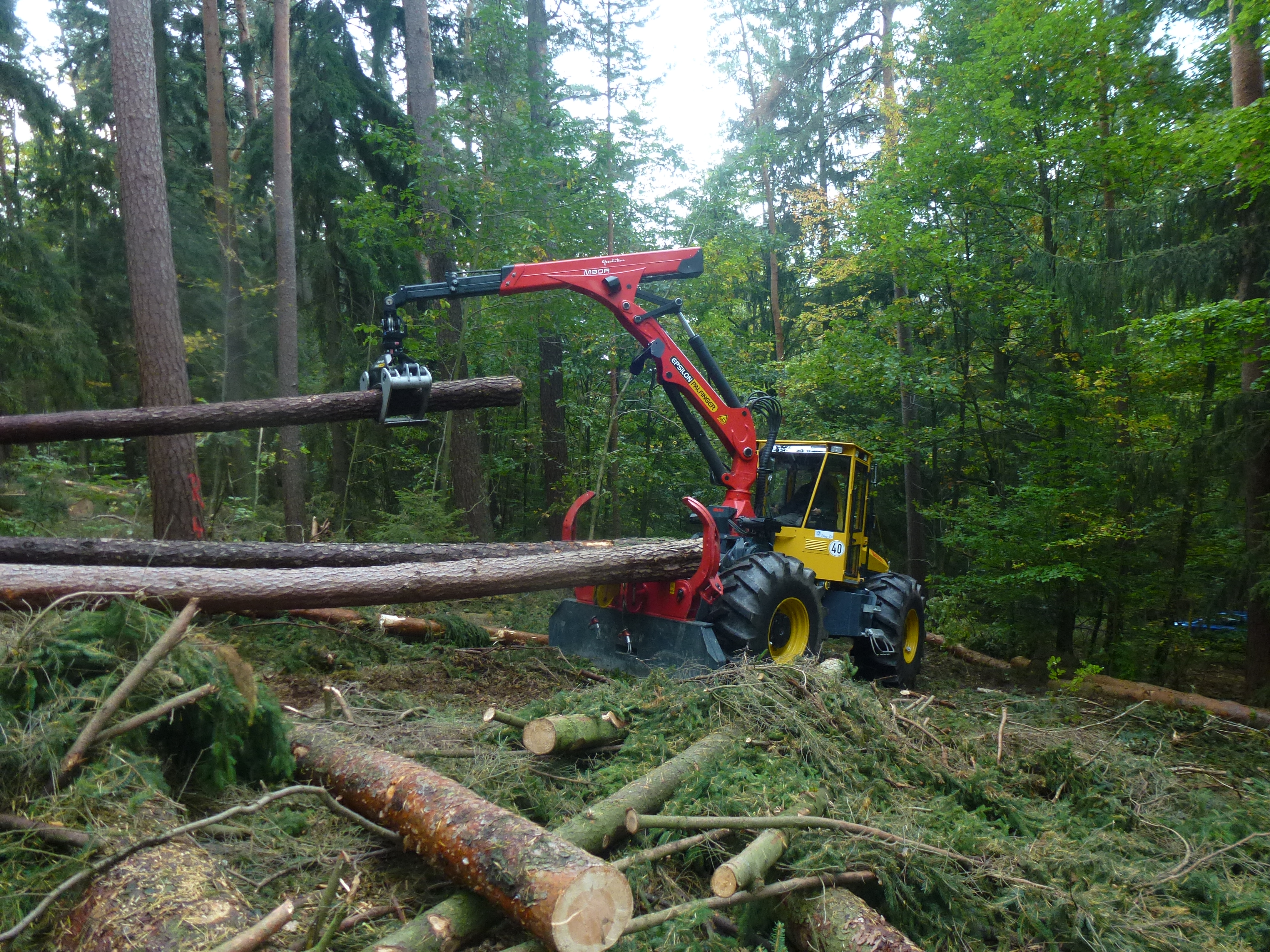

Medium-Duty Offroad Long Wood Skidder

alt text
Epsilon Timber and Recycling Crane
Key Specs
Max. outreach
9.6 m
Max. lifting moment
82 kNm
Dead Weight
1480 kg

This offroad long wood skidder from our Epsolution range has a lifting capacity of 9 metric tons and is available in four arm lengths: 6.8 m, 7.2 m, 8.0 m, and 9.6 m. The M90R features Epscope, Epslink, and Epslight along with a double slewing system.

*Depending on the variant and equipment selected.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

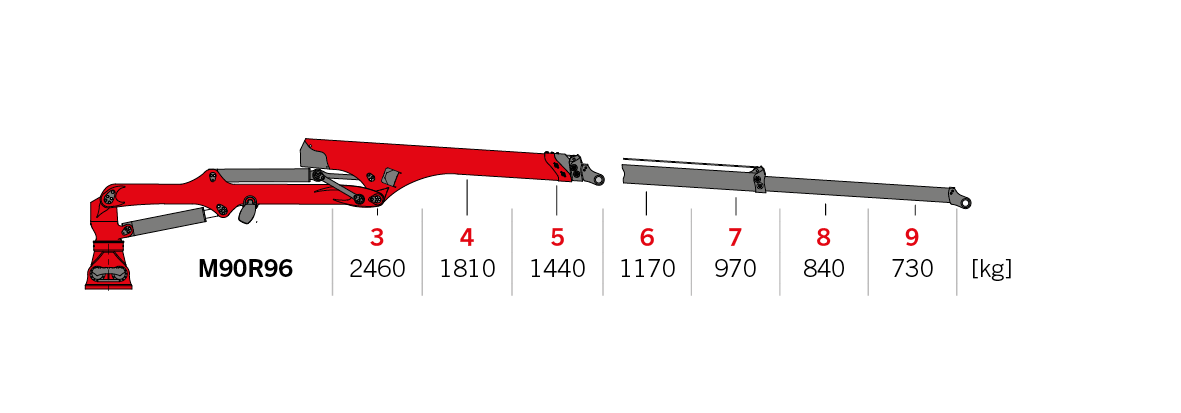

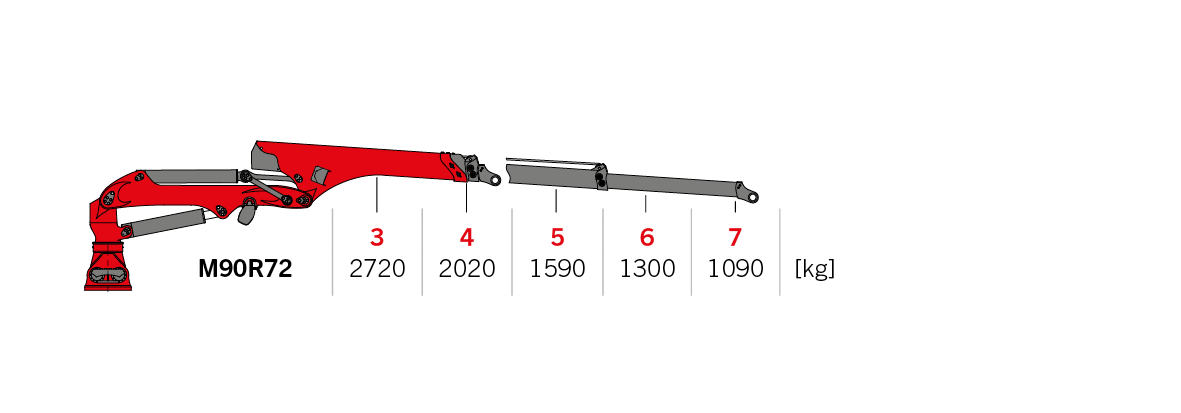

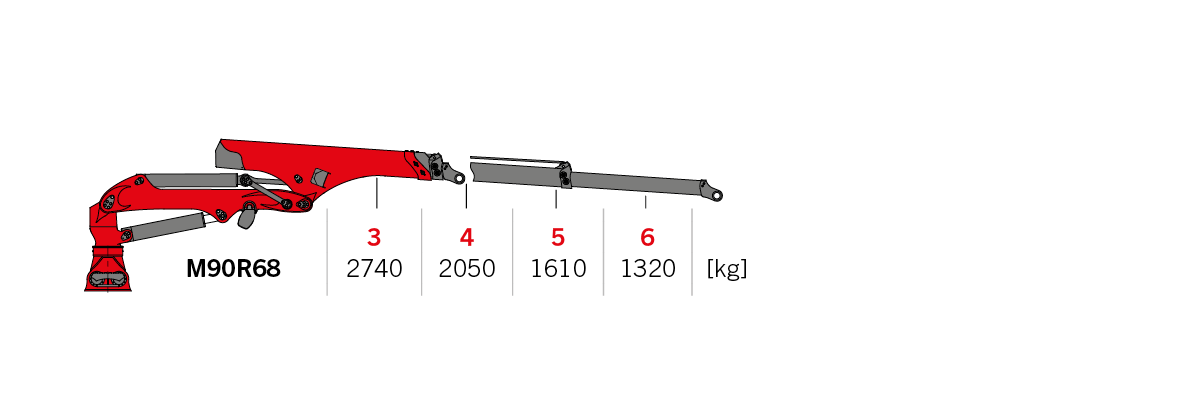

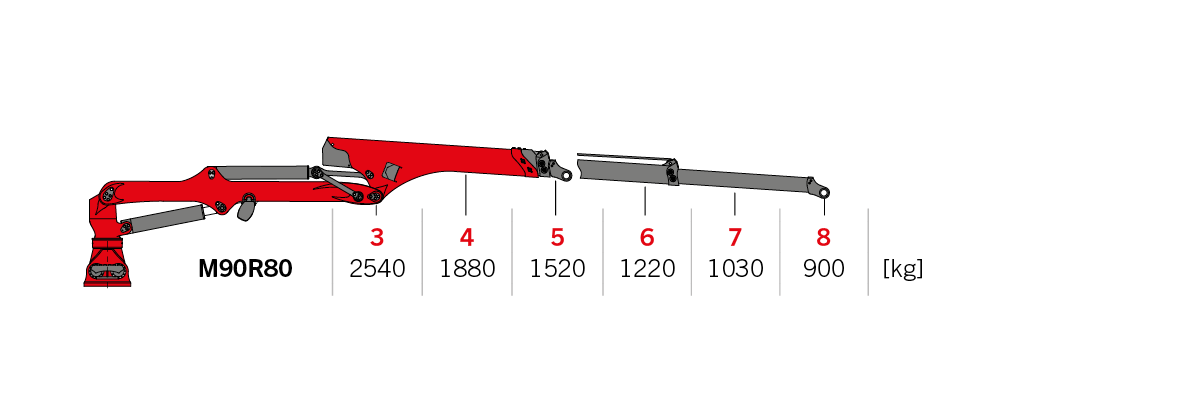

Diagrams

View
alt text

View
alt text

View
alt text

View
alt text

Protected hydraulic routing

Epslink and Epscope combine to deliver unmatched performance.

Protected hydraulic guide

EPSLINK

Epslink is EPSILON’s patented link-rotator combination. It features an extraordinarily robust four-eye-cast link with internal hose routing – and combines with Epscope to provide a practical, professional solution.

alt text

EPSCOPE

Epscope is EPSILON’s patented extension boom system, available in both single and double telescope variants. The extension cylinder and hose equipment are mounted internally, which allows operators to work safely without the risk of mechanical damage to key components.

alt text
alt text

Highlights

Stunning visual appearance

Every line and angle in the design is guided by technical logic and practical use to ensure optimized handling, excellent visibility, and straightforward maintenance – with all RAL colors available upon request.
alt text

KTL, finite element modeling and functional design

Innovative technology for long-lasting surface protection, durability testing and optimized functionality.

Cathodic dip coating (KTL)

This specialist surface treatment lays the foundations for long-lasting surface protection. PALFINGER’s Marburg and Lengau production facilities feature fully automated cathodic dip coating lines.

This treatment starts by degreasing and rinsing components before activating them, applying a zinc phosphate coating and then rinsing again. This is followed by passivation and a final rinsing step with ultra-pure water before the components undergo cathodic dip coating. Sophisticated robotic systems then finalize the process.

alt text

Finite element method

At EPSILON, we apply the finite element method to optimize our crane construction processes. We have deployed this state-of-the-art modeling technique for several years to refine all supporting elements made from fine-grain steel.

alt text

Functional design

We develop every shape and detail based on function and practical application. Our designs follow a clear technical logic that ensures efficient, intuitive operation, and high performance. This approach combines technical precision with a clean, functional aesthetic.
alt text

Double slewing system

The double slewing system features a limit position damper and provides an outstanding torque rating. The high-precision toothed-rack slewing system delivers excellent slewing power, while the self-aligning roller bearing is sealed in an oil bath for reliable performance.

Protected hydraulic guide

EPSLINK

HPI

Outriggers
alt text

Epslight

The Epslight solution draws on the latest LED technology, comprising significantly smaller headlights protected by a cover. Forwarder cranes feature four lights, while skidder cranes feature two.

Protected hydraulic guide

EPSLINK

HPI

Outriggers
alt text

Equipment & Accessories

FG27

With a gripping area of 0.26 m², a maximum load of 4,000 kg, and an operating pressure of 25 MPa, the FG27 delivers reliable performance at a dead weight of just 170 kg.
alt text

FG37

With a gripping area of 0.36 m², a maximum load of 4,000 kg, and an operating pressure of 25 MPa, the FG37 delivers reliable performance at a dead weight of just 180 kg.
alt text

FG43S

With a gripping area of 0.40 m², a maximum load of 6,000 kg, and an operating pressure of 24 MPa, the FG43S delivers reliable performance at a dead weight of just 260 kg.
alt text

Technical Specifications

Technical Data

Telescopic boom length

Number of extensions

Net load moment [kNm]

Net slewing torque [kNm]

Slewing angle [°]

Max. reach [m]

Operating pressure [bar]

Max. pump capacity. 1K-LS [l/min]

Slewing angle [°]
68 dm 2 82 kNm 29 kNm 0 ° 6.8 m 220 bar 130 205 / 240 / 385
72 dm 2 82 kNm 29 kNm 0 ° 7.2 m 220 bar 130 205 / 240 / 385
80 dm 2 76 kNm 29 kNm 0 ° 8 m 216 bar 130 205 / 240 / 385
96 dm 2 74 kNm 29 kNm 0 ° 9.6 m 220 bar 130 205 / 240 / 385
Dead weight without joint/rotator

Telescopic boom length [dm]

Crane only
68 dm 1,480 kg
72 dm 1,480 kg
80 dm 1,520 kg
96 dm 1,650 kg

Discover Standard Features

Epscope

Internally routed hoses and an integrated telescopic cylinder permit safe working without the risk of damage from external sources.

alt text
Epslink

This high-strength four-lug link with rotator and optimized hose routing is suitable for EPSILON polyp grabs and clamshell grabbers.

alt text
Cathodic Dip Coating (CDC)

An innovative technology for long-lasting surface protection.

alt text
Finite Element Technology

At EPSILON, we apply the finite element method to optimize our crane construction processes. We have deployed this state-of-the-art modeling technique for several years to refine all supporting elements made from fine-grain steel.

alt text
