Forwarder

C50F

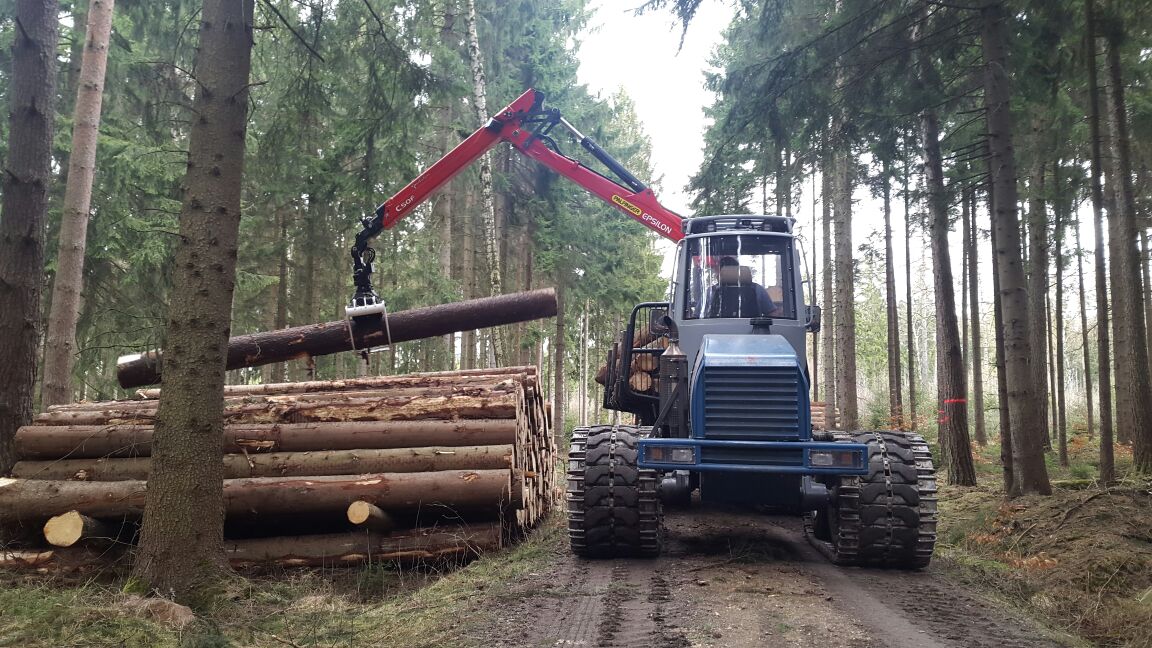

Compact Offroad Timber Forwarder

alt text
Epsilon Timber and Recycling Crane
Key Specs
Max. outreach
8.6 m
Max. lifting moment
56 kNm
Dead Weight
1,060 kg

This offroad timber forwarder crane from our Epsolution range has a lifting capacity of 5 metric tons and is available in two arm lengths: 6.9 m and 8.6 m. The C50F features Epscope and Epslink technologies along with a double slewing system.

*Depending on the variant and equipment selected.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

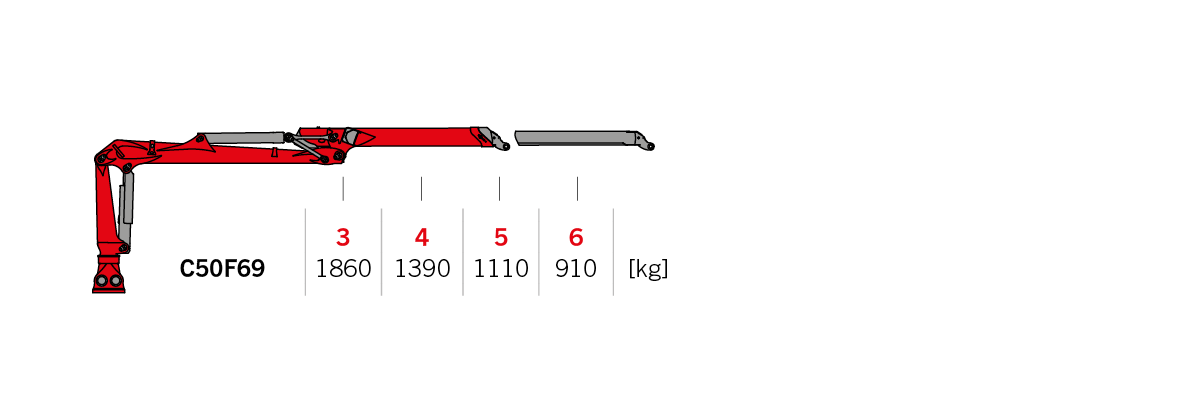

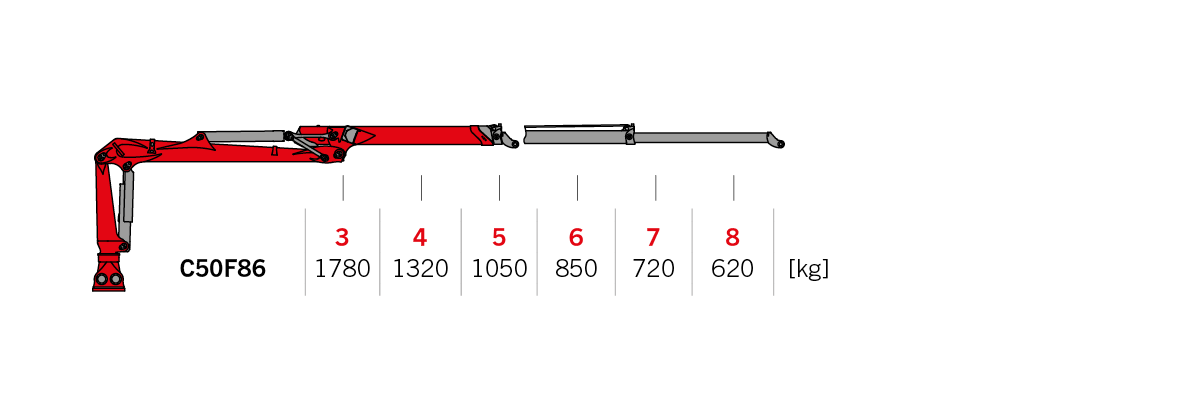

Diagrams

View
alt text

View
alt text

Protected hydraulic routing

Epslink and Epscope combine to deliver unmatched performance.

Protected hydraulic guide

EPSLINK

Epslink is EPSILON’s patented link-rotator combination. It features an extraordinarily robust four-eye-cast link with internal hose routing – and combines with Epscope to provide a practical, professional solution.

alt text

EPSCOPE

Epscope is EPSILON’s patented extension boom system, available in both single and double telescope variants. The extension cylinder and hose equipment are mounted internally, which allows operators to work safely without the risk of mechanical damage to key components.

alt text
alt text

Highlights

Stunning visual appearance

Every line and angle in the design is guided by technical logic and practical use to ensure optimized handling, excellent visibility, and straightforward maintenance – with all RAL colors available upon request.
alt text

KTL, finite element modeling and functional design

Innovative technology for long-lasting surface protection, durability testing and optimized functionality.

Cathodic dip coating (KTL)

This specialist surface treatment lays the foundations for long-lasting surface protection. PALFINGER’s Marburg and Lengau production facilities feature fully automated cathodic dip coating lines.

This treatment starts by degreasing and rinsing components before activating them, applying a zinc phosphate coating and then rinsing again. This is followed by passivation and a final rinsing step with ultra-pure water before the components undergo cathodic dip coating. Sophisticated robotic systems then finalize the process.

alt text

Finite element method

At EPSILON, we apply the finite element method to optimize our crane construction processes. We have deployed this state-of-the-art modeling technique for several years to refine all supporting elements made from fine-grain steel.

alt text

Functional design

We develop every shape and detail based on function and practical application. Our designs follow a clear technical logic that ensures efficient, intuitive operation, and high performance. This approach combines technical precision with a clean, functional aesthetic.
alt text

Double slewing system

The double slewing system features a limit position damper and provides an outstanding torque rating. The high-precision toothed-rack slewing system delivers excellent slewing power, while the self-aligning roller bearing is sealed in an oil bath for reliable performance.

Protected hydraulic guide

EPSLINK

HPI

Outriggers
alt text

Equipment & Accessories

FG27

With a gripping area of 0.26 m², a maximum load of 4,000 kg, and an operating pressure of 25 MPa, the FG27 delivers reliable performance at a dead weight of just 170 kg.
alt text

FG37

With a gripping area of 0.36 m², a maximum load of 4,000 kg, and an operating pressure of 25 MPa, the FG37 delivers reliable performance at a dead weight of just 180 kg.
alt text

FG27R

With a gripping area of 0.26 m², a maximum load of 4,000 kg, and an operating pressure of 25 MPa, the FG27R delivers reliable performance at a dead weight of just 205 kg.
alt text

Technical Specifications

Technical Data

Telescopic boom length

Net load moment [kNm]

Net slewing torque [kNm]

Slewing angle [°]

Max. reach [m]

Operating pressure [bar]

Max. pump capacity. 1K-LS [l/min]

Slewing angle [°]

Number of extensions
C50F69 69 dm 56 kNm 18 kNm 0 ° 6.9 m 180 bar 120 335/425
C50F86 86 dm 2 54 kNm 18 kNm 8.6 m 180 bar 120 335/425
Dead weight without joint/rotator

Telescopic boom length [dm]

Crane only
C50F69 69 dm 1,060 kg
C50F86 86 dm 1,140 kg

Discover Standard Features

Epscope

Internally routed hoses and an integrated telescopic cylinder permit safe working without the risk of damage from external sources.

alt text
Epslink

This high-strength four-lug link with rotator and optimized hose routing is suitable for EPSILON polyp grabs and clamshell grabbers.

alt text
Cathodic Dip Coating (CDC)

An innovative technology for long-lasting surface protection.

alt text
Finite Element Technology

At EPSILON, we apply the finite element method to optimize our crane construction processes. We have deployed this state-of-the-art modeling technique for several years to refine all supporting elements made from fine-grain steel.

alt text

Control Methods

alt text
External Control

External Control with Joysticks

This optional hydraulic setup permits crane operation from the cabin of another vehicle – ideal for offroad applications.

External Control

Operate your crane from the cabin of another vehicle with our convenient External Control solution. It features a Danfoss control valve mounted on a slewing cylinder, along with two Danfoss joysticks, and a 10 m cable – suitable for DM8H, DM9F, and DM10F configurations.

alt text
