Tail Lift

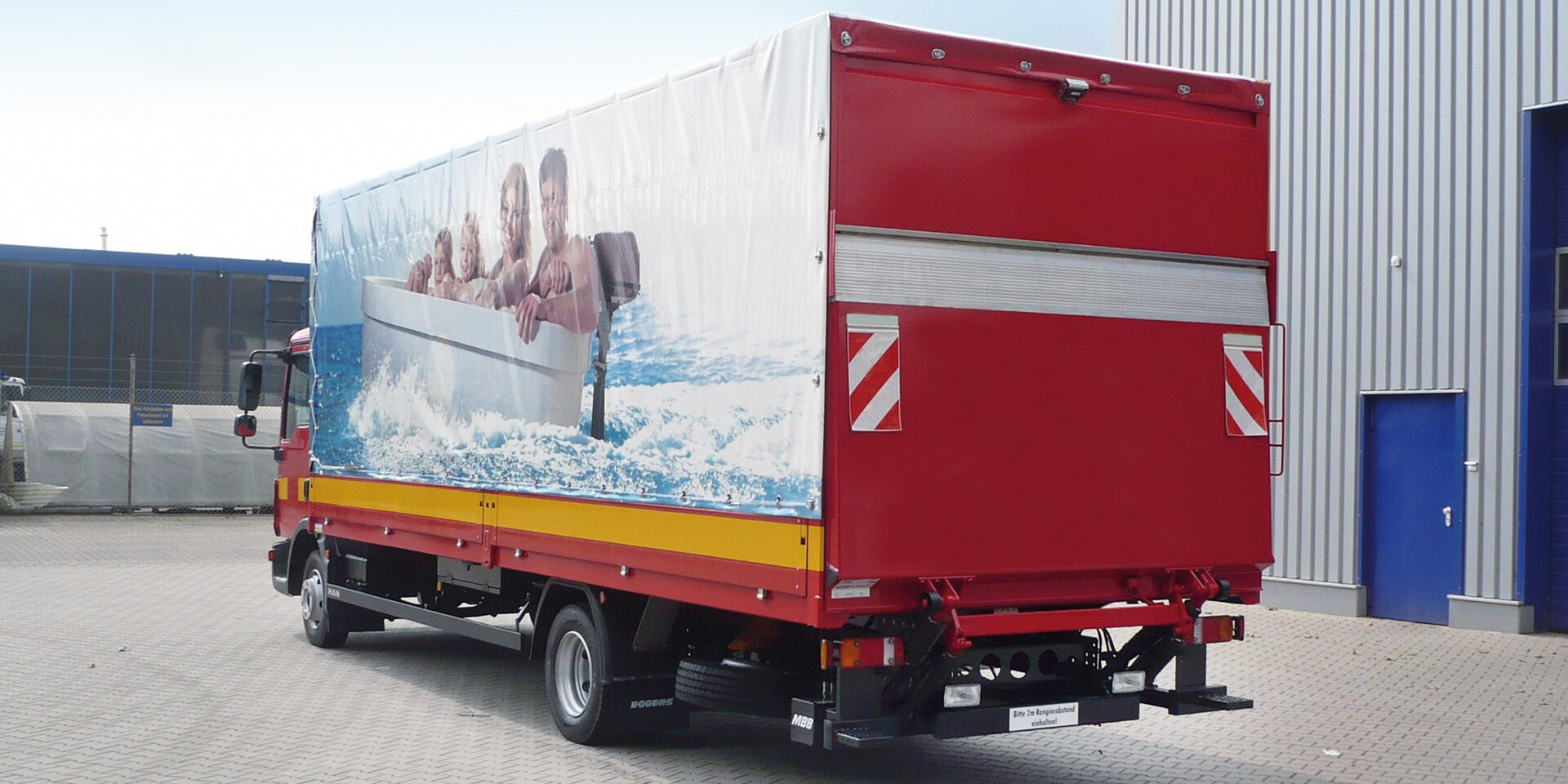

MBB C 1000 S
- Has proven itself in daily distribution transport
- 1,000 kg lifting capacity with increased load distance of 700 mm
- Four-cylinder lifting mechanism with lifting arm lengths from 700 to 900 mm
- Reinforced design for optimum utilisation of lifting capacity
- Equipment with aluminium or steel platform
- Also available as partial tail lift
- Large selection of special equipment available
Cantilever
Experience the product features
Außenseite
- Steel platform with powder-coated rearside (in a RAL colour)
- Aluminium platform with wet-painted rearside, with or without tip (in a RAL colour)
- Aluminium platform anodised (up to 2000mm height)
- Horizontal folding Aluminium platform for cantilever lifts (max. width 2520mm)
- Mounted advertisement panel for steel platform (not for FerroTop)
Lifting gear standard
- Cylinders with protection bellows and tubes
- All steel components in KTL
- Mounting brackets
- Lifting gear powder-coated (in RAL9011 or NOVA grey)
- Lifting gear micro-galvanised 750er
- Bolt-on mounting brackets (not LZ/SZ models and MBB C 500 VAN to MBB PTC 750 S)
- Welded mounting brackets (please provide chassis dimensions)
- Hydr. Stabiliser, large, installed, pair (double-acting cylinders)
- Mechanical stabilisers, large, lose, pair
- Preparation for central lubrification C 1000 S - C 3000 S
Operation standard
- Control box with self-closing cover and Z-bracket / EVERY ADDITIONAL CONTROL HAS TO BE SELECTED INDIVIDUALLY!
- 3+1 controls (instead of control box)
- 4-button control planel, slim, for internal installation (as further control device)
- 4-button control panel, box format for external installation (as further control device)
- Foot controls integrated in platform (as further control unit)
- 2-button wanderlead hand control w/o plug (as further control device)
- 3-button wanderlead hand control w/o plug (as further control device)
- Slim control panel basic (instead control box)
- Radio remote control RCBT (standard set) SN2050730
- Radio remote control Akerström
- Key switch or turning switch, lockable (not possible with MBB 3+1 and MBB 3+3+1 controls)
Electrics / Sensors standard
- 12V or 24V
- Drivers cab switch with indicator OR interface ETMA Code A (V-lifts only cab switch)
- Sensors b13 (lifting gear) and b15L (platform)
- Surcharge for plug-in sensor b15S platform (instead sensor b15L)
- Surcharge for sensor b15L lifting gear (instead sensor b13) = "2x b15"
- Development of a customised program for MBB Control
- ETMA Code A + B (including plus and minus cable 3,8m)
- Cable for box body light
Lifting capacity | 1000 kg |
Main beam | 180 x 180 (毫米) |
Lifting gear hydraulics | 2 lifting cylinder / 2 tilting cylinder |
Platform overlap with floor | - 57 mm |
Lift arm pitch /Lift arm length | 1310 mm |
Load centre - lengthwise | 700 mm |
Load centre - across center | Central 50% of rated load on one side |
Inclination angle of the platform | +90° to -10° |
Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
---|---|---|---|---|---|
alu | 2500 | 1600 | 376 | - | |
alu | 2500 | 1700 | 384 | - | |
alu | 2500 | 1800 | 390 | - | |
alu | 2500 | 2050 | 401 | - | |
steel | 2500 | 1509 | 478 | - | |
steel | 2500 | 1809 | 538 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
a(mm) | Q(mm) |
700 | 1000 |
875 | 800 |
1150 | 600 |
1700 | 400 |
Feasibility study
Webtool for automatic feasibility study for C- Type Lifts
Here you can create your feasibility study drawing online. For an extensive range of vehicles, quickly and without obligation
Dimensions
Lift arms (in mm) | 700 | 800 | 900 |
H (max.) Loading height unloaded | 1256 | 1409 | 1546 |
H (min.) Loading height loaded | 906 | 922 | 998 |
F (max.) Middle of main beam to upper edge of loading floor | 728 | 811 | 894 |
K (min.) at dimension F (max.) | 515 | 627 | 626 |
D (min.) Installation space (min.) | 665 | 777 | 776 |
D (max.) Installation space (max.) | 860 | 951 | 1036 |
F (min.) | 529 | 572 | 625 |
K (max.) at dimension F (min.) | 710 | 801 | 886 |
